D-Sub 电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 第一连接器 | 第二连接器 | 类型 | 位置数量 | 等级 | 认证 | 长度 | 屏蔽 | 颜色 | 用途 | 触点表面处理 | 触点表面处理厚度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

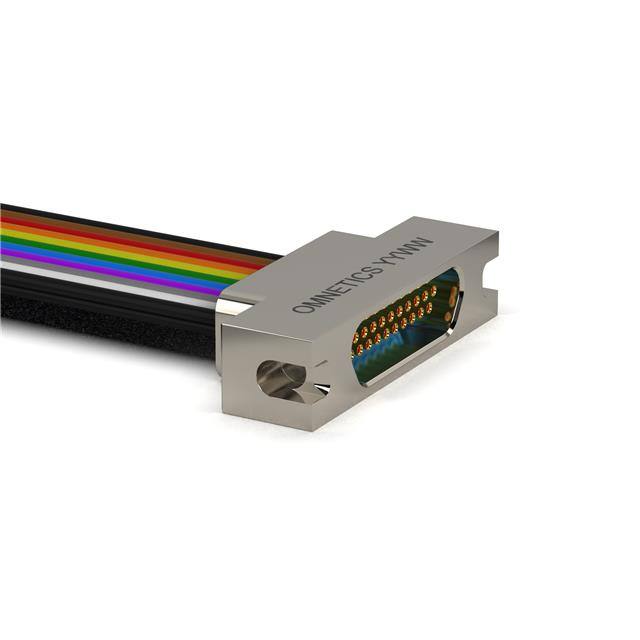

A99150-021CABLE ASSY D-MIC-D 21P 457.2MM Omnetics |
4,250 |
|
数据手册 |
Micro-D | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 21 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|

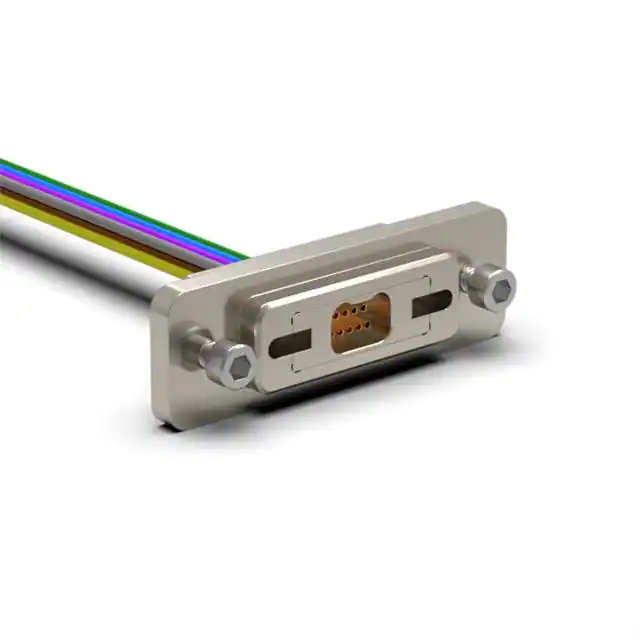

A29650-109CABLE ASSY D-NANO-D 9P 457.2MM Omnetics |
2,630 |
|
数据手册 |
Nano-D / Bi-Lobe® | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Nano-D | 9 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|

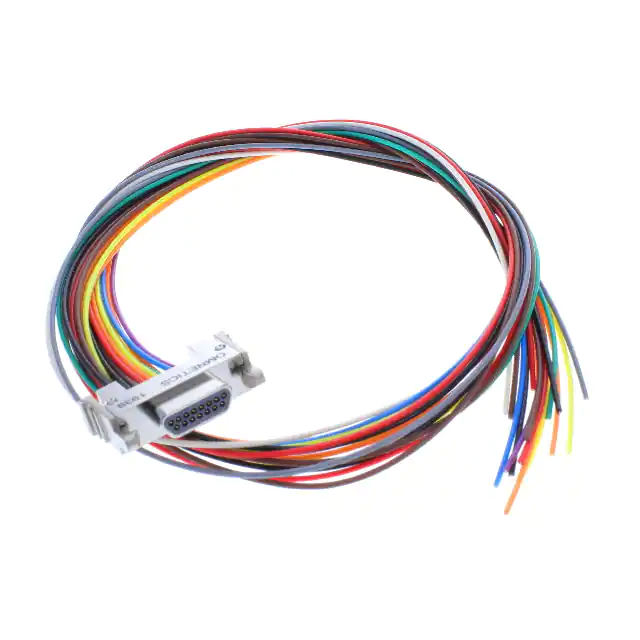

LMDP-015-N50-WD6Q18.0-1-RHCABLE ASSY D-MIC-D 15P 457.2MM Omnetics |
4,561 |
|
数据手册 |
Micro-D | Bag | Active | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 15 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Ribbon | - | Gold | 50.0µin (1.27µm) |
|
A99150-009CABLE ASSY D - MIC D 9P 457.2MM Omnetics |
4,521 |
|
数据手册 |
Micro-D | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|
A29650-115CABLE ASSY D-NANO-D 15P 457.2MM Omnetics |
1,758 |
|
数据手册 |
Nano-D / Bi-Lobe® | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Nano-D | 15 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|
A55000-005CABLE ASSY D-NANO-D 5P 457.2MM Omnetics |
3,864 |
|
数据手册 |
Nano-D / Bi-Lobe® | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Nano-D | 5 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|

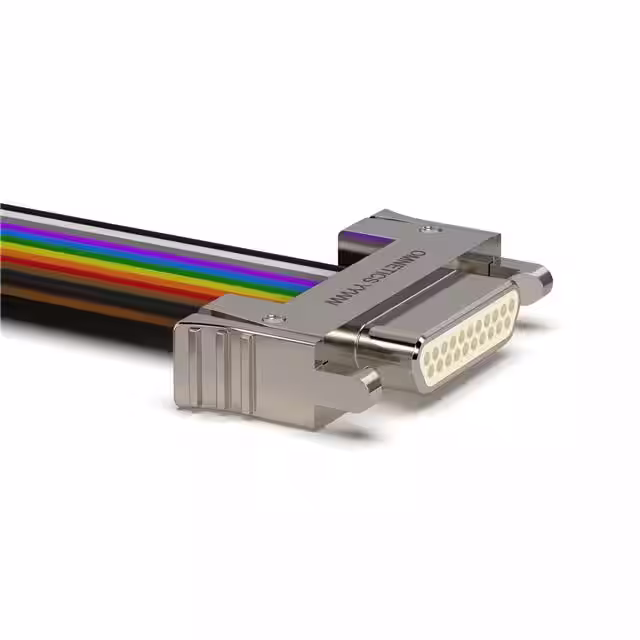

A98150-021CABLE ASSY D-MIC-D 21P 457.2MM Omnetics |
4,711 |
|
数据手册 |
LMDP | Bag | Active | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 21 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|

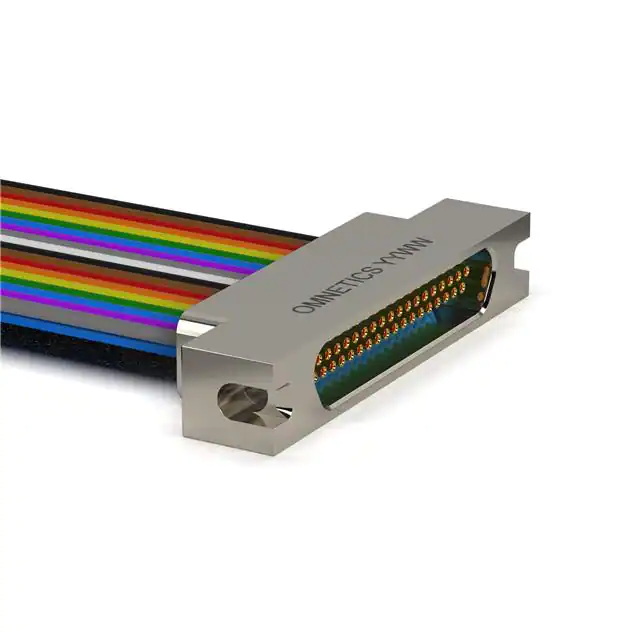

A99150-037CABLE ASSY D-MIC-D 37P 457.2MM Omnetics |
2,723 |
|
数据手册 |
Micro-D | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 37 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|

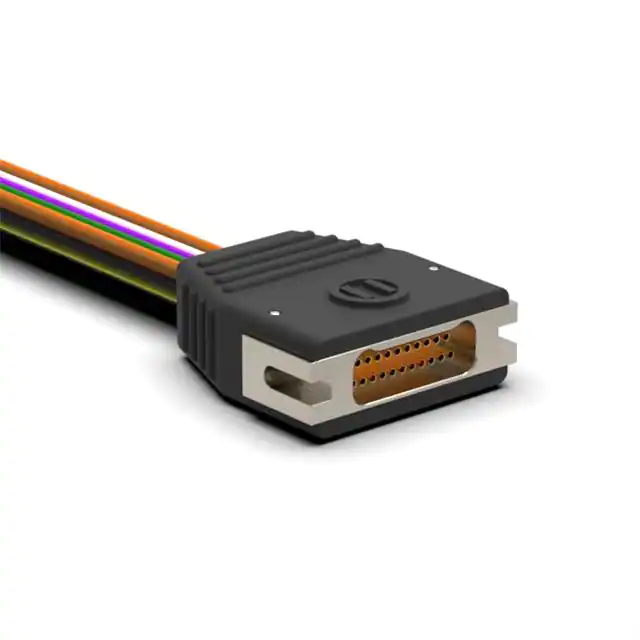

A29050-021CABLE ASSY D-NANO-D 21P 457.2MM Omnetics |
1,620 |
|
数据手册 |
Nano-D / Bi-Lobe® | Bag | Active | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Nano-D | 21 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) |
|
LMDP-009-N50-WD6Q18.0-1-RHCABLE ASSY D - MIC D 9P 457.2MM Omnetics |
4,461 |
|
数据手册 |
Micro-D | Bag | Active | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 9 | - | - | 1.50' (457.20mm) | Unshielded | Multiple, Ribbon | - | Gold | 50.0µin (1.27µm) |
