电流传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 用于测量 | 传感器类型 | 电流 - 传感 | 通道数 | 输出 | 灵敏度 | 频率 | 线性度 | 精度 | 电压 - 电源 | 响应时间 | 电流 - 电源（最大值） | 工作温度 | 等级 | 认证 | 极化 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMCS1101A1BQDTCURRENT SENSOR |
1,286 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AC/DC | Hall Effect | 45A | 1 | Ratiometric, Voltage | 50mV/A | 80kHz | ±0.05% | - | 3V ~ 5.5V | 6.5µs | 6mA | -40°C ~ 125°C | - | - | Bidirectional | Surface Mount | 8-SOIC |
|
CQ330ESENSOR CURRENT HALL 20.5A AC/DC |
1,431 |
|
数据手册 |
CQ | 24-LSSOP (0.220", 5.60mm Width), 10 Leads | Tape & Reel (TR) | Obsolete | AC/DC | Hall Effect, Open Loop | 20.5A | 1 | Ratiometric, Voltage | 200mv/A | 1MHz | ±0.6% | ±0.5% | 4.5V ~ 5.5V | 0.5µs | 11mA | -40°C ~ 90°C | - | - | Bidirectional | Surface Mount | 24-VSOP |
|
T60404N4647X664CURRENT SENSOR, 50A, 3 PRI PINS, |
1,915 |
|
数据手册 |
- | 10-DIP Module | Box | Active | AC/DC | Closed Loop | 50A | 1 | Ratiometric, Voltage | - | DC ~ 200kHz | ±0.1% | ±0.7% | 4.75V ~ 5.25V | 300ns | 15mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
TL150-A2PVCURRENT SENSOR 150A 1 CHANNEL HA |
1,701 |
|
数据手册 |
TLxxx-A2PV | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 150A | 1 | Ratiometric, Voltage | 4.167mV/A | DC ~ 200kHz | ±0.1% | ±0.5% | 4.75V ~ 5.25V | 300ns | 14mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
TL100-A2PVCURRENT SENSOR 100A 1 CHANNEL HA |
4,724 |
|
数据手册 |
TL1xx-A2PV | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Voltage | 6.25mV/A | DC ~ 200kHz | ±0.1% | ±0.5% | 4.75V ~ 5.25V | 300ns | 14mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
TLB6-A1PDCURRENT SENSOR 80/40A 6MA 1 CHAN |
2,986 |
|
数据手册 |
- | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Open Loop | 80A | 1 | Voltage | - | 50Hz | - | - | 4.85V ~ 5.15V | 60ms | 6mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
TL100P-D1CCURRENT SENSOR 100A 1 CHANNEL HA |
3,242 |
|
数据手册 |
TLx00P-D1C | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 1µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TL300-D1CCURRENT SENSOR 300A 1 CHANNEL HA |
1,198 |
|
数据手册 |
TLx00-D1C | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 1µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TL200P-D1CCURRENT SENSOR 200A 1 CHANNEL HA |
2,331 |
|
数据手册 |
TLx00P-D1C | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 200A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 1µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TL200-D1CCURRENT SENSOR 200A 1 CHANNEL HA |
1,390 |
|
数据手册 |
TLx00-D1C | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 200A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 1µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TL300P-D1CCURRENT SENSOR 300A 1 CHANNEL HA |
2,558 |
|
数据手册 |
TLx00P-D1C | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 1µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TLB6-A1TDMCURRENT SENSOR 40A 6MA 1 CHANNEL |
4,338 |
|
数据手册 |
- | Module | Tray | Not For New Designs | AC/DC | Open Loop | 40A | 1 | Voltage | - | 50Hz ~ 1kHz | - | - | 4.85V ~ 5.15V | 30ms | 6mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
TL100-A2TPVCURRENT SENSOR 100A 1 CHANNEL HA |
3,298 |
|
数据手册 |
TL1xx-A2TPV | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Voltage | 6.25mV/A | DC ~ 200kHz | ±0.1% | ±0.5% | 4.75V ~ 5.25V | 300ns | 14mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
TL150-A2TPVCURRENT SENSOR 150A 1 CHANNEL HA |
2,067 |
|
数据手册 |
TLxxx-A2TPV | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 150A | 1 | Ratiometric, Voltage | 4.167mV/A | DC ~ 200kHz | ±0.1% | ±0.5% | 4.75V ~ 5.25V | 300ns | 14mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
TL200-A2TPVCURRENT SENSOR 200A 1 CHANNEL HA |
2,608 |
|
数据手册 |
TLxxx-A2TPV | Module, Single Pass Through | Tray | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 200A | 1 | Ratiometric, Voltage | 3.125mV/A | DC ~ 200kHz | ±0.1% | ±0.5% | 4.75V ~ 5.25V | 300ns | 14mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
TL100-D2CCURRENT SENSOR 100A 1 CHANNEL HA |
3,685 |
|
数据手册 |
TLx00-D2C | Module | Box | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | ±0.05% | ±0.3% | ±12V ~ 15V | 2µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TL300-D2CCURRENT SENSOR 300A 1 CHANNEL HA |
1,145 |
|
数据手册 |
TLx00-D2C | Module | Bulk | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | 0Hz ~ 100kHz | 0.01% | ±0.3% | ±12V ~ 15V | 2µs | 25mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
T60404N4647X260CURRENT SENSOR 100A/150A, PRI OP |
2,197 |
|
数据手册 |
- | Module, Single Pass Through | Box | Active | AC/DC | Closed Loop | 100A, 150A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.1% | ±0.7% | 4.75V ~ 5.25V | 1µs | 15mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|

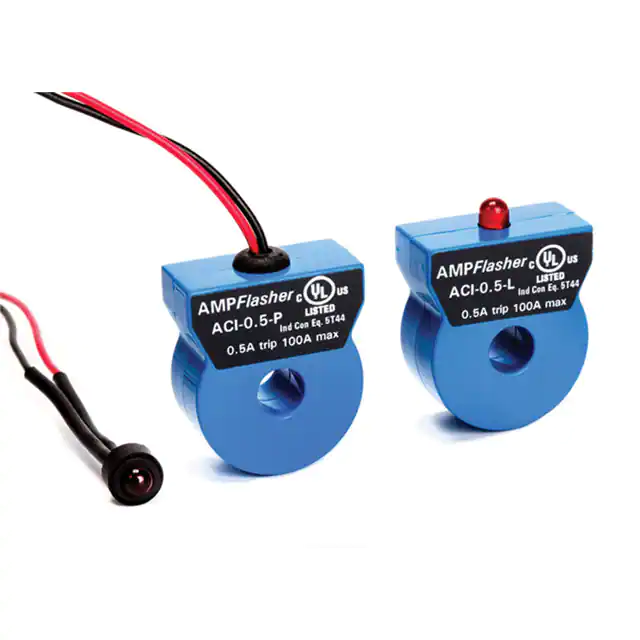

ACI-0.5-LAC CURRENT INDICATOR, LED |
4,203 |
|
数据手册 |
AMPFlasher™ ACI | Module | Box | Active | AC | Current Indicator | 500mA | 1 | LED | - | 50Hz ~ 400Hz | - | - | - | - | - | -20°C ~ 50°C | - | - | Unidirectional | Chassis Mount | - |
|

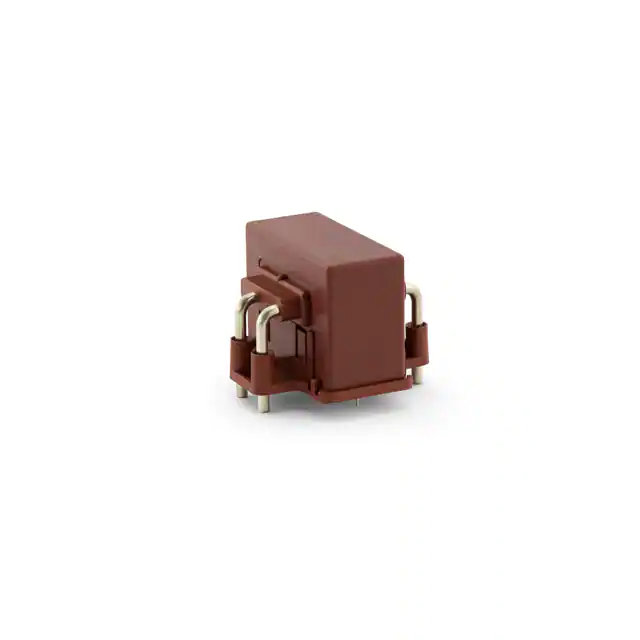

T60404N4646X921DIFFERENTIAL CURRENT SENSOR, 300 |
3,445 |
|
数据手册 |
- | 10-DIP Module | Box | Active | AC/DC | Closed Loop | 50A | 1 | Ratiometric, Voltage | - | DC ~ 8kHz | ±1% | ±1.5% | 4.75V ~ 5.25V | 35µs | 15mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
