电容网络、阵列
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 介电材料 | 电容器数量 | 电路类型 | 温度系数 | 额定值 | 安装类型 | 封装/外壳 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B37940R5100K041CAP ARRAY 10PF 50V NP0 0805 |
3,892 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 10pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
|
B37940R5101K041CAP ARRAY 100PF 50V NP0 0805 |
3,144 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 100pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
|
B37871R5470K041CAP ARRAY 47PF 50V NP0 0612 |
3,042 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 47pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.85mm) |
|
|
B37871R5100K043CAP ARRAY 10PF 50V NP0 0612 |
4,779 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 10pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.85mm) |
|
|
B37872R5472M041CAP ARRAY 4700PF 50V X7R 0612 |
1,770 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 4700pF | ±20% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.85mm) |
|
|
B37872R5102M041CAP ARRAY 1000PF 50V X7R 0612 |
1,513 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | 1000pF | ±20% | 50 V | Ceramic | 4 | Isolated | X7R | - | Surface Mount | 1206 (3216 Metric) | 0612 (1632 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.85mm) |
|
ECJ-TVB0J105MCAP ARRAY 1.0UF 6.3V X5R 0805 |
1,256 |
|
数据手册 |
ECJ-T | Tape & Reel (TR) | Obsolete | 1µF | ±20% | 6.3 V | Ceramic | 4 | Isolated | X5R | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
.jpg)
|
CKCL22X7R1C104MCAP ARRAY 0.1UF 16V X7R 0805 |
4,742 |
|
数据手册 |
CKC | Tape & Reel (TR) | Obsolete | 0.1µF | ±20% | 16 V | Ceramic | 2 | Isolated | X7R | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
W2F43A4708AT1FCAP FEEDTHRU 47PF 25V NP0 0805 |
2,943 |
|
数据手册 |
W2F4 | Tape & Reel (TR) | Obsolete | 47pF | -20%, +50% | 25 V | - | 4 | Bussed | C0G, NP0 | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.045" (1.14mm) |
|
|
W2F43A1018AT1FCAP FEEDTHRU 100PF 25V NP0 0805 |
3,489 |
|
数据手册 |
W2F4 | Tape & Reel (TR) | Obsolete | 100pF | -20%, +50% | 25 V | - | 4 | Bussed | C0G, NP0 | - | Surface Mount | 0805 (2012 Metric) | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.045" (1.14mm) |
|
ECJ-RVB0J105MCAP ARRAY 1.0UF 6.3V X5R 1206 |
3,615 |
|
数据手册 |
ECJ-R | Tape & Reel (TR) | Obsolete | 1µF | ±20% | 6.3 V | Ceramic | 4 | Isolated | X5R | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|

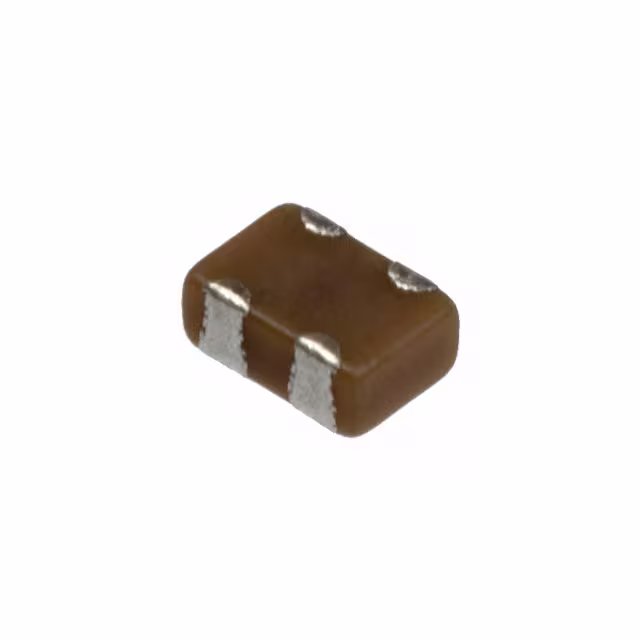

ECJ-UVBPA105MCAP ARRAY 1.0UF 10V X5R 0504 |
2,608 |
|
数据手册 |
ECJ | Tape & Reel (TR) | Obsolete | 1µF | ±20% | 10 V | Ceramic | 2 | Isolated | X5R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.035" (0.90mm) |
|
|
ECJ-UVBPC105MCAP ARRAY 1.0UF 16V X5R 0504 |
1,198 |
|
数据手册 |
ECJ | Tape & Reel (TR) | Obsolete | 1µF | ±20% | 16 V | Ceramic | 2 | Isolated | X5R | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.035" (0.90mm) |
|
|
ECJ-UVC1H101KCAP ARRAY 100PF 50V NP0 0504 |
1,167 |
|
数据手册 |
ECJ | Tape & Reel (TR) | Obsolete | 100pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.035" (0.90mm) |
|
|
ECJ-UVC1H220KCAP ARRAY 22PF 50V NP0 0504 |
1,239 |
|
数据手册 |
ECJ | Tape & Reel (TR) | Obsolete | 22pF | ±10% | 50 V | Ceramic | 2 | Isolated | C0G, NP0 | - | Surface Mount | 0504 (1410 Metric) | 0405 (1012 Metric) | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.035" (0.90mm) |
|
NFA31CC101S1E4DCAP ARRAY 100PF 25V 1206 |
1,697 |
|
数据手册 |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 100pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
4610M-901-103LFCAP ARRAY 10000PF 50V X7R 10SIP |
3,766 |
|
数据手册 |
900 | Bulk | Obsolete | 10000pF | ±20% | 50 V | - | 9 | Bussed | X7R | - | Through Hole | 10-SIP | - | 0.998" L x 0.150" W (25.35mm x 3.81mm) | 0.200" (5.08mm) |
|
|
NFA31CC470S1E4DCAP ARRAY 47PF 25V 1206 |
4,742 |
|
数据手册 |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 47pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31CC102R1E4DCAP ARRAY 1000PF 25V 1206 |
3,412 |
|
数据手册 |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 1000pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NFA31CC220S1E4DCAP ARRAY 22PF 25V 1206 |
1,836 |
|
数据手册 |
EMIFIL®, NFA31 | Tape & Reel (TR) | Obsolete | 22pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) |
