蜂鸣器元件、压电弯片
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 频率 | 电压 - 输入（最大） | 类型 | 阻抗 | 电容 @ 频率 | 工作温度 | 尺寸 / 尺寸 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB2072SBUZZER ELEMENT STD 7.2KHZ 20MM |
268 |
|
数据手册 |
- | Bulk | Active | 7.2 kHz | 30V p-p | Standard | 300 Ohms | 10000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|
|
AB2725SBUZZER ELEMENT STD 2.5KHZ 27MM |
4,681 |
|
数据手册 |
AB | Bulk | Active | 2.5 kHz | 20V p-p | Standard | 500 Ohms | 45000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
AB2734BBUZZER ELEMENT STD 3.4KHZ 27MM |
3,153 |
|
数据手册 |
- | Bulk | Active | 3.4 kHz | 30V p-p | Standard | 1 kOhms | 13000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
CPT-2745-L100BUZZER ELEMENT FDBK 4.5KHZ 27MM |
2,916 |
|
数据手册 |
CPT | Bag | Active | 4.5 kHz | 30V p-p | Feedback | 500 Ohms | 16000pF @ 120Hz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | Wire Leads |
|
AB3526BBUZZER ELEMENT STD 2.6KHZ 35MM |
100 |
|
数据手册 |
- | Bulk | Active | 2.6 kHz | 30V p-p | Standard | 300 Ohms | 30000pF @ 1kHz | -20°C ~ 70°C | 1.378" Dia (35.00mm) | None |
|
AB3529BF-LW100-RBUZZER ELEMENT FDBK 2.9KHZ 35MM |
3,241 |
|
数据手册 |
AB | Bulk | Active | 2.9 kHz | 30V p-p | Feedback | 500 Ohms | 25000pF @ 1kHz | -20°C ~ 70°C | 1.378" Dia (35.00mm) | Wire Leads |
|

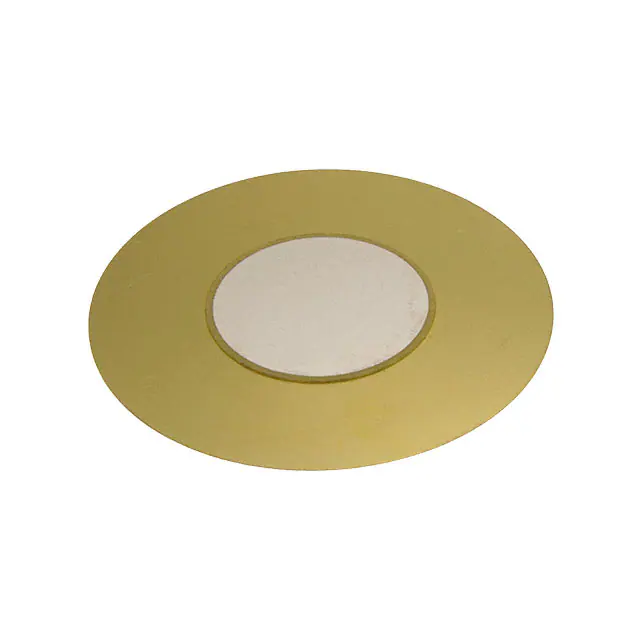

AB5027B-3BUZZER ELEMENT STD 2.7KHZ 50MM |
4,951 |
|
数据手册 |
- | Bulk | Active | 2.7 kHz | 30V p-p | Standard | 500 Ohms | 40000pF @ 1kHz | -20°C ~ 60°C | 1.969" Dia (50.00mm) | None |
|
AB2063B-2BUZZER ELEMENT STD 6.3 KHZ 20MM |
500 |
|
数据手册 |
- | Bulk | Active | 6.3 kHz | 30V p-p | Standard | 350 Ohms | 10000pF @ 120Hz | -20°C ~ 70°C | 0.787" Dia (20.00mm) | None |
|
|
AB2063BFBUZZER ELEMENT FDBK 6.3 KHZ 20MM |
241 |
|
数据手册 |
- | Bulk | Active | 6.3 kHz | 30V p-p | Feedback | 800 Ohms | 8500pF @ 120Hz | -20°C ~ 70°C | 0.787" Dia (20.00mm) | None |
|
|
AB2036B-2BUZZER ELEMENT STD 6.3 KHZ 20MM |
298 |
|
数据手册 |
- | Bulk | Active | 6.3 kHz | 30V p-p | Standard | 500 Ohms | 20000pF @ 120Hz | -20°C ~ 70°C | 0.787" Dia (20.00mm) | None |
|
|
AB2063BF-LW50BUZZER ELEMENT FDBK 6.3 KHZ 20MM |
228 |
|
数据手册 |
- | Bulk | Active | 6.3 kHz | 30V p-p | Feedback | 800 Ohms | 8500pF @ 120Hz | -20°C ~ 70°C | 0.787" Dia (20.00mm) | Wire Leads |
|
|
RPE-7.000-1001-NS1BUZZER ELEMENT STD 7KHZ 10MM |
468 |
|
数据手册 |
- | Tray | Active | 7 kHz | 30V p-p | Standard | 800 Ohms | 13000pF @ 100Hz | -20°C ~ 60°C | 0.394" Dia (10.00mm) | None |
|
|
CEB-3550BUZZER ELEMENT STD 2.9 KHZ 35MM |
979 |
|
数据手册 |
CEB | Tray | Active | 2.9 kHz | 30V p-p | Standard | 500 Ohms | 35000pF @ 1kHz | -20°C ~ 60°C | 1.378" Dia (35.00mm) | None |
|
|
RPE-6.500-1502-NS1BUZZER ELEMENT STD 6.5 KHZ 15MM |
822 |
|
数据手册 |
- | Tray | Active | 6.5 kHz | 30V p-p | Standard | 400 Ohms | 12000pF @ 100Hz | -20°C ~ 60°C | 0.591" Dia (15.00mm) | None |
|
|
RPE-2.500-2001-NS1BUZZER ELEMENT STD 2.5 KHZ 20MM |
933 |
|
数据手册 |
- | Tray | Active | 2.5 kHz | 30V p-p | Standard | 500 Ohms | 35000pF @ 100Hz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|
|
AB1541B-6BUZZER ELEMENT STD 4.1 KHZ 15MM |
892 |
|
数据手册 |
AB | Tray | Active | 4.1 kHz | 30V p-p | Standard | 1 kOhms | 8000pF @ 1kHz | -20°C ~ 60°C | 0.591" Dia (15.00mm) | None |
|
|
AB3113A-2BUZZER ELEMENT STD 1.3 KHZ 31MM |
217 |
|
数据手册 |
- | Bulk | Active | 1.3 kHz | 30V p-p | Standard | 500 Ohms | 45000pF @ 120Hz | -20°C ~ 70°C | 1.220" Dia (31.00mm) | None |
|
|
AB4122BBUZZER ELEMENT STD 2.2 KHZ 41MM |
229 |
|
数据手册 |
- | Bulk | Active | 2.2 kHz | 30V p-p | Standard | 250 Ohms | 30000pF @ 120Hz | -20°C ~ 70°C | 1.614" Dia (41.00mm) | None |
|
|
AB3531S-LW50-RBUZZER ELEMENT FDBK 35MM 3100HZ |
1,641 |
|
数据手册 |
AB | Tray | Active | 3.1 kHz | 30V p-p | Feedback | 220 Ohms | 24000pF @ 1kHz | -20°C ~ 60°C | 1.366" Dia (34.70mm) | Wire Leads |
|
|
ABLF2746B-LW100BUZZER ELEMENT PIEZO BENDER 27MM |
1,297 |
|
数据手册 |
AB | Bag | Active | 4.6 kHz | 30V p-p | Standard | 300 Ohms | 20000pF @ 120Hz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | Wire Leads |
