箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

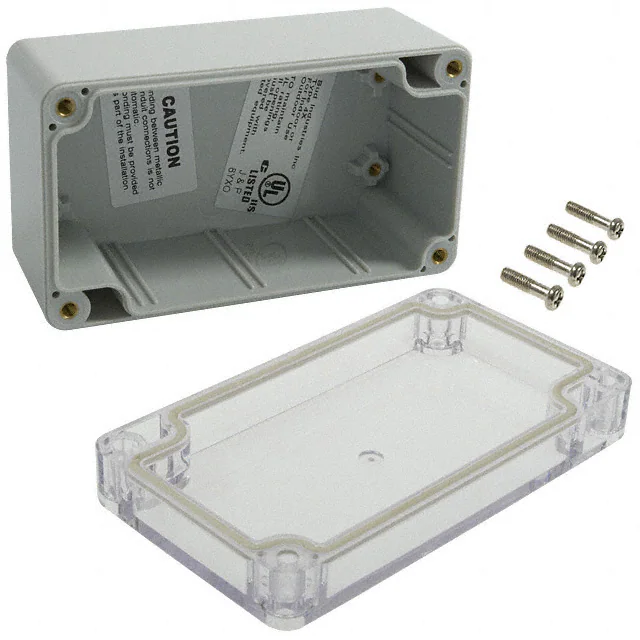

PN-1322-CBOX PLASTIC 4.53"L X 2.56"W Bud Industries |
3,089 |
|
数据手册 |
PN | Bulk | Active | Box | 4.528" L x 2.559" W (115.01mm x 65.00mm) | 2.165" (55.00mm) | 11.7in² (75cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.100" (2.54mm) | Card Guides, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
CN-5705BOX ALUM NAT 4.548"L X 3.566"W Bud Industries |
3,956 |
|
数据手册 |
CN | Box | Active | Box | 4.548" L x 3.566" W (115.52mm x 90.58mm) | 2.224" (56.50mm) | 16.2in² (105cm²) | Cover Included | Metal, Aluminum | Natural | 0.080" (2.03mm) | Sealed | IP66, NEMA 1,2,4,4X,12,13 | - |
|
PT-11388-GBOX ABS GRAY 5.63"L X 3.25"W Bud Industries |
2,247 |
|
数据手册 |
Plastibox Style A | Bulk | Active | Box | 5.625" L x 3.250" W (142.88mm x 82.55mm) | 2.480" (62.99mm) | 18.3in² (118cm²) | Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | - | UL94 HB |
|

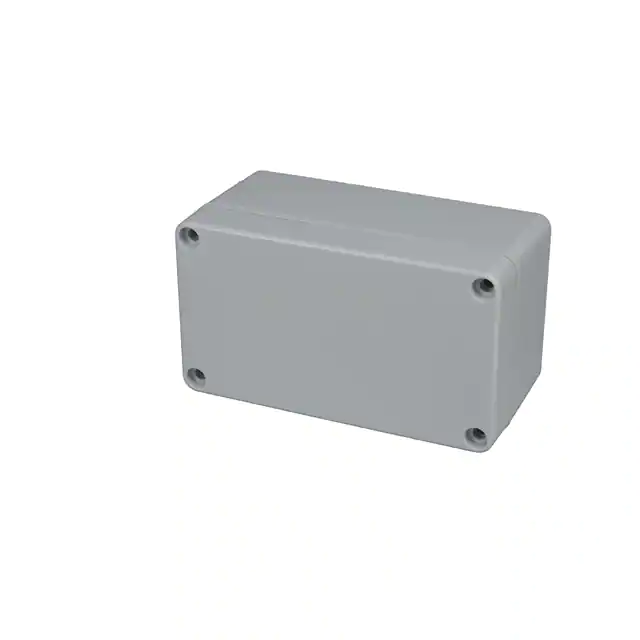

PN-1322-ABOX PLASTIC GRAY 4.53"L X 2.56"W Bud Industries |
3,086 |
|
数据手册 |
PN | Box | Active | Box | 4.530" L x 2.560" W (115.06mm x 65.02mm) | 2.170" (55.12mm) | 11.6in² (75cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.120" (3.05mm) | - | IP68, NEMA 1, 2, 4, 4X, 6, 6P, 12, 13, UL-508 | UL94 HB |
|

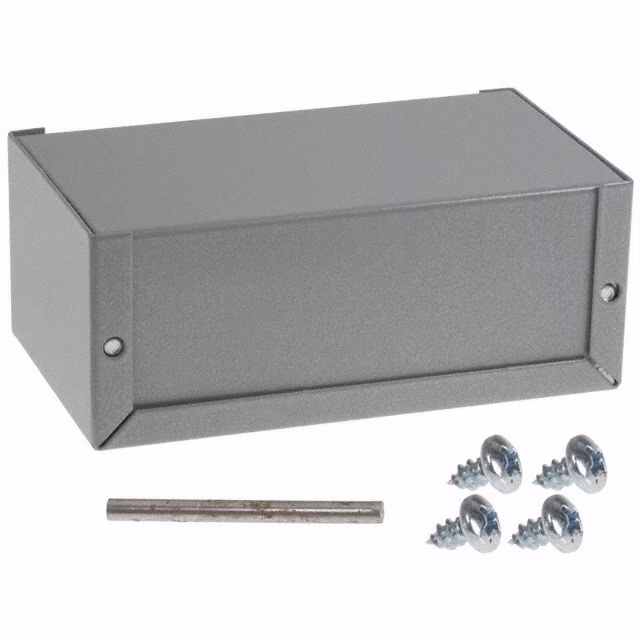

CU-2106-BBOX ALUM GRAY 5.25"L X 3"W Bud Industries |
3,021 |
|
数据手册 |
Mini-Box | Bulk | Active | Box | 5.250" L x 3.000" W (133.35mm x 76.20mm) | 2.125" (53.98mm) | 15.8in² (102cm²) | U Shaped Pieces | Metal, Aluminum | Gray | 0.040" (1.02mm) | - | - | - |
|

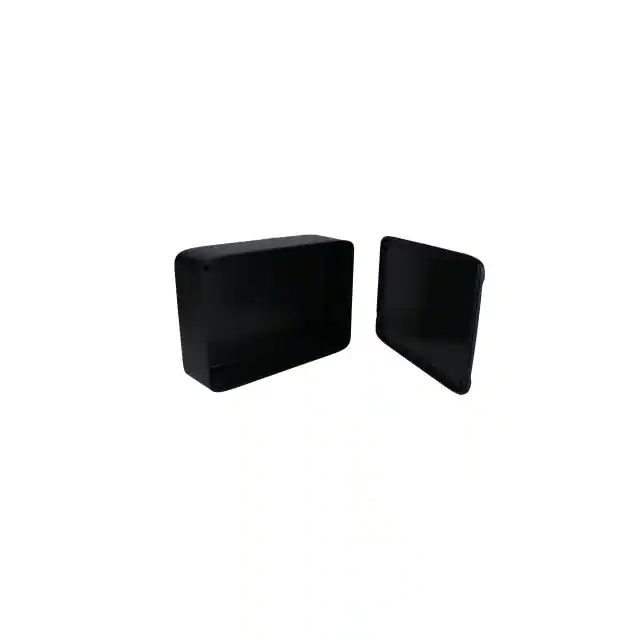

PW-12850-TENCLOSURE ABS BLACK 7.25"L X 5"W Bud Industries |
3,274 |
|
数据手册 |
PW | Box | Active | Enclosure | 7.250" L x 5.000" W (184.15mm x 127.00mm) | 2.220" (56.39mm) | 36.2in² (234cm²) | Cover Included | Plastic, ABS | Black | - | - | - | UL94 5A |
|

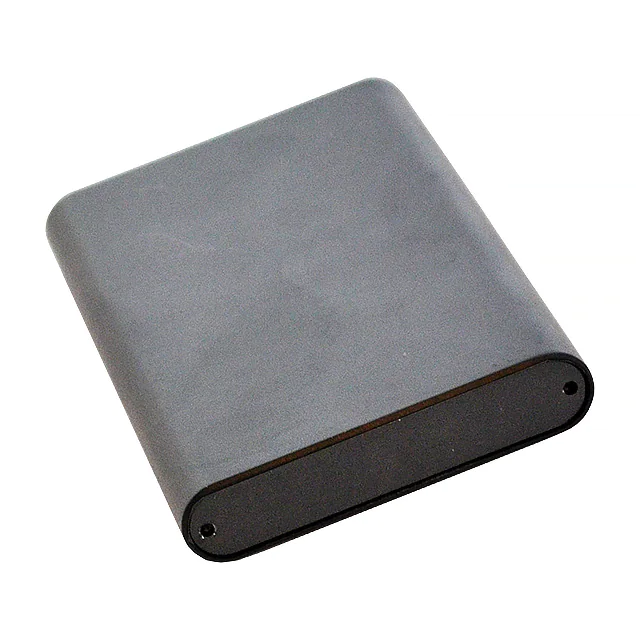

EXT-9163BOX ALUM BLACK 3.94"L X 2.32"W Bud Industries |
2,204 |
|
数据手册 |
EXT | Bulk | Active | Box | 3.937" L x 2.323" W (100.00mm x 59.00mm) | 0.512" (13.00mm) | 9.14in² (59.0cm²) | End Panel(s) | Metal, Aluminum | Black | 0.039" (0.99mm) | Card Guides | - | - |
|
PN-1322-ACBOX PLASTIC 4.53"L X 2.56"W Bud Industries |
1,972 |
|
数据手册 |
PN | Box | Active | Box | 4.530" L x 2.560" W (115.06mm x 65.02mm) | 2.170" (55.12mm) | 11.6in² (75cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP68, NEMA 1, 2, 4, 4X, 6, 6P, 12, 13, UL-508 | UL94 HB |
|

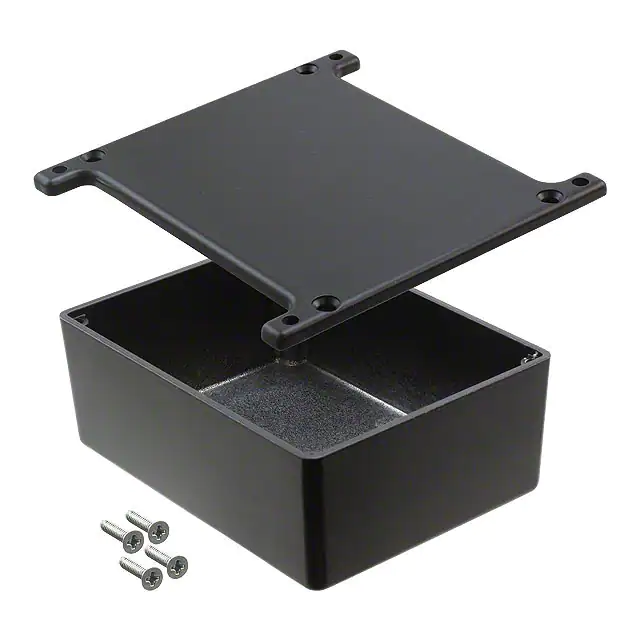

CU-5471-BBOX ALUM BLACK 4.33"L X 3.25"W Bud Industries |
1,327 |
|
数据手册 |
Econobox | Bulk | Active | Box | 4.330" L x 3.250" W (109.98mm x 82.55mm) | 1.750" (44.45mm) | 14.1in² (91cm²) | Cover Included | Metal, Aluminum | Black | 0.094" (2.39mm) | - | - | - |
|

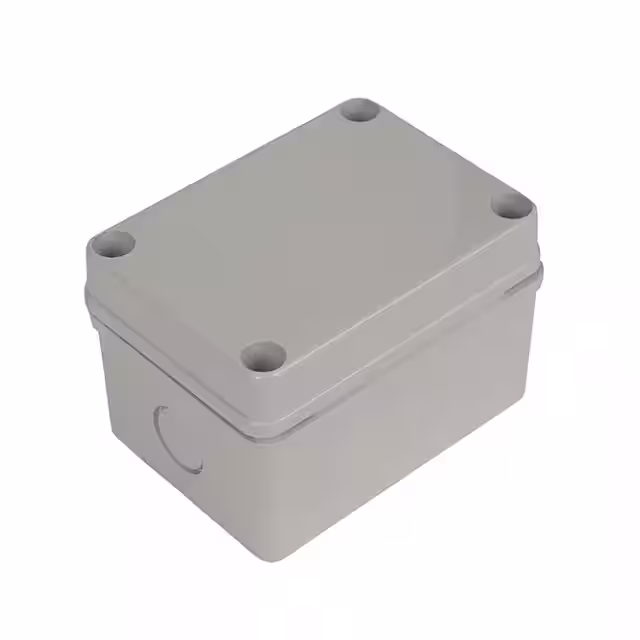

PTK-18421BOX PC GRAY 4.33"L X 3.15"W Bud Industries |
2,246 |
|
数据手册 |
PTK | Bulk | Active | Box | 4.330" L x 3.150" W (109.98mm x 80.00mm) | 3.350" (85.09mm) | 13.6in² (88cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | 0.120" (3.05mm) | PCB Supports, Sealing Gasket | IP67, NEMA 4X, UL 508 | UL94 5VA |
