箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4005477BOX IPS3935 MOD TO REQ Bud Industries |
3,496 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
4006564BOX AC415 MOD TO REQUEST Bud Industries |
3,874 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
NBD-15456BOX PLAS GRAY 22.09"L X 14.98"W Bud Industries |
4,573 |
|
数据手册 |
NBD | Bulk | Active | Box | 22.085" L x 14.975" W (560.96mm x 380.37mm) | 7.035" (178.69mm) | 331in² (2135cm²) | Cover Included | Plastic, PBT/PC Blend | Gray | 0.160" (4.06mm) | PCB Supports | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
PN-1320-MBBOX PLASTIC GRAY 2.52"L X 2.28"W Bud Industries |
2,562 |
|
数据手册 |
PN | Box | Active | Box | 2.520" L x 2.283" W (64.01mm x 57.99mm) | 1.378" (35.00mm) | 5.75in² (37.1cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|

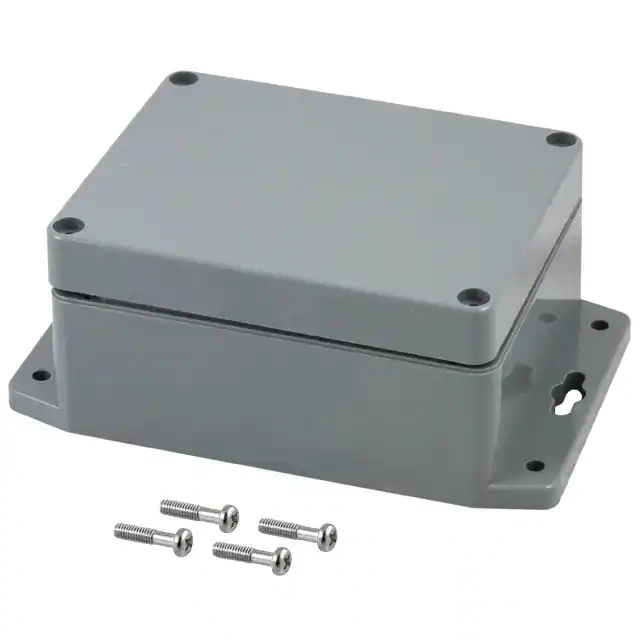

PN-1323-DGMBBOX ABS GRAY 4.53"L X 3.54"W Bud Industries |
1,325 |
|
数据手册 |
PN | Box | Active | Box | 4.528" L x 3.543" W (115.01mm x 89.99mm) | 2.165" (55.00mm) | 16.0in² (103cm²) | Cover Included | Plastic, ABS | Gray | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
PTK-18423BOX PC GRAY 5.12"L X 3.15"W Bud Industries |
1,941 |
|
数据手册 |
PTK | Bulk | Active | Box | 5.120" L x 3.150" W (130.05mm x 80.00mm) | 3.350" (85.09mm) | 16.1in² (104cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | 0.120" (3.05mm) | PCB Supports, Sealing Gasket | IP67, NEMA 4X, UL 508 | UL94 5VA |
|
AN-1304-ABOX ALUM NATURAL 4.54"L X 3.54"W Bud Industries |
2,616 |
|
数据手册 |
AN-A | Bulk | Active | Box | 4.535" L x 3.543" W (115.19mm x 89.99mm) | 2.165" (55.00mm) | 16.1in² (104cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Card Guides, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|

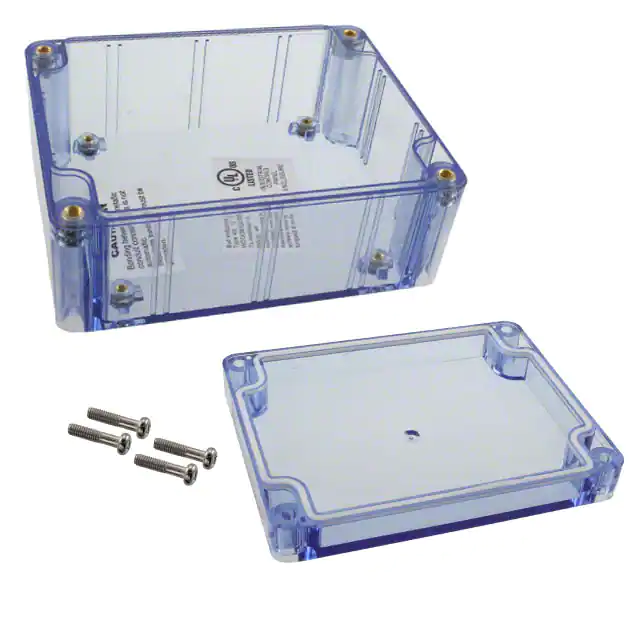

BT-2723BOX PLAS TRN BLU 4.53"L X 3.54"W Bud Industries |
4,730 |
|
数据手册 |
BT | Box | Active | Box | 4.528" L x 3.543" W (115.01mm x 89.99mm) | 2.165" (55.00mm) | 16.0in² (103cm²) | Cover Included | Plastic, Polycarbonate | Translucent - Blue | 0.120" (3.05mm) | Card Guides, PCB Supports | IP65, NEMA 1,2,4,4X,12,13 | UL94 V-2 |
|

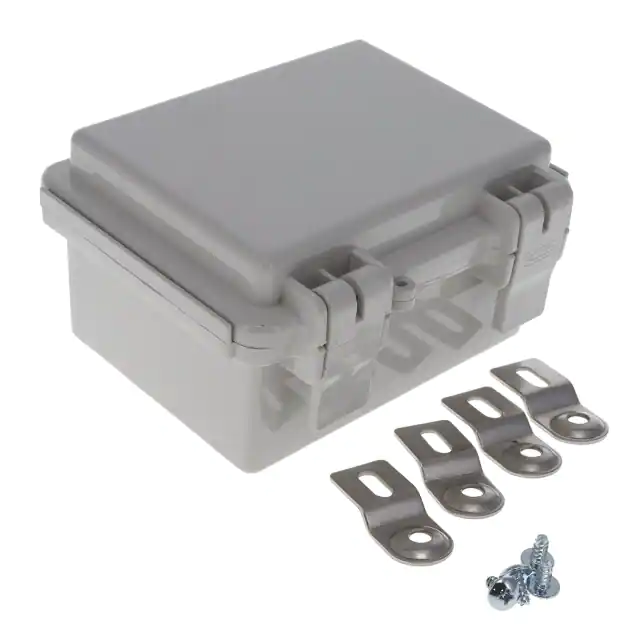

NBF-32302BOX ABS/PBT GRAY 5.11"L X 3.93"W Bud Industries |
4,828 |
|
数据手册 |
NBF | Bulk | Active | Box | 5.110" L x 3.930" W (129.79mm x 99.82mm) | 2.750" (69.85mm) | 20.1in² (130cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.115" (2.92mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|

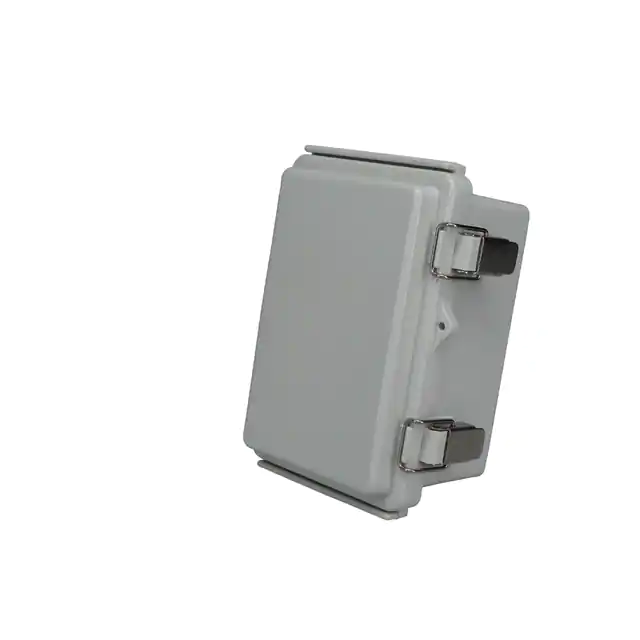

PTQ-11038BOX PLASTIC GRAY 5.91"L X 3.94"W Bud Industries |
4,949 |
|
数据手册 |
PTQ | Box | Active | Box | 5.910" L x 3.940" W (150.11mm x 100.08mm) | 3.350" (85.09mm) | 23.3in² (150cm²) | Hinged Door, Lid | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.130" (3.30mm) | - | IP67, NEMA 1,2,4,4X,6, UL-508 | UL94 V-0 |
