箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBD-15442BOX PLAS GRAY 11.02"L X 7.485"W Bud Industries |
3,834 |
|
数据手册 |
NBD | Bulk | Active | Box | 11.024" L x 7.485" W (280.01mm x 190.12mm) | 5.031" (127.79mm) | 82.4in² (532cm²) | Cover Included | Plastic, PBT/PC Blend | Gray | 0.110" (2.79mm) | PCB Supports | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
NBF-32318BOX ABS/PBT GRY 11.81"L X 7.87"W Bud Industries |
4,223 |
|
数据手册 |
NBF | Bulk | Active | Box | 11.810" L x 7.870" W (299.97mm x 199.90mm) | 6.290" (159.77mm) | 92.9in² (599cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.145" (3.68mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBF-32418BOX ABS/PBT 11.81"L X 7.87"W Bud Industries |
1,707 |
|
数据手册 |
NBF | Bulk | Active | Box | 11.810" L x 7.870" W (299.97mm x 199.90mm) | 6.290" (159.77mm) | 92.9in² (599cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray, Clear Cover/Door | 0.145" (3.68mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
|
NBB-10263BOX ABS/PC 11.28"L X 7.48"W Bud Industries |
4,806 |
|
数据手册 |
NBB | Bulk | Active | Box | 11.280" L x 7.475" W (286.51mm x 189.87mm) | 5.515" (140.08mm) | 84.3in² (544cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray, Clear Cover/Door | 0.133" (3.38mm) | Non-Metallic Hinges, PCB Supports | IP66, NEMA 1,2,3,3R,4,4X,12,13 | UL94 5VB, UL94 V-0 |
|
|
ANS-3816-BBOX ALUM BLACK 7.87"L X 5.91"W Bud Industries |
4,144 |
|
数据手册 |
ANS | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 1.096" (27.83mm) | 46.5in² (300cm²) | Cover Included | Metal, Aluminum | Black | 0.098" (2.49mm) | EMI Shielded, PCB Supports | IP67, NEMA 1,2,4,4X,12,13 | - |
|

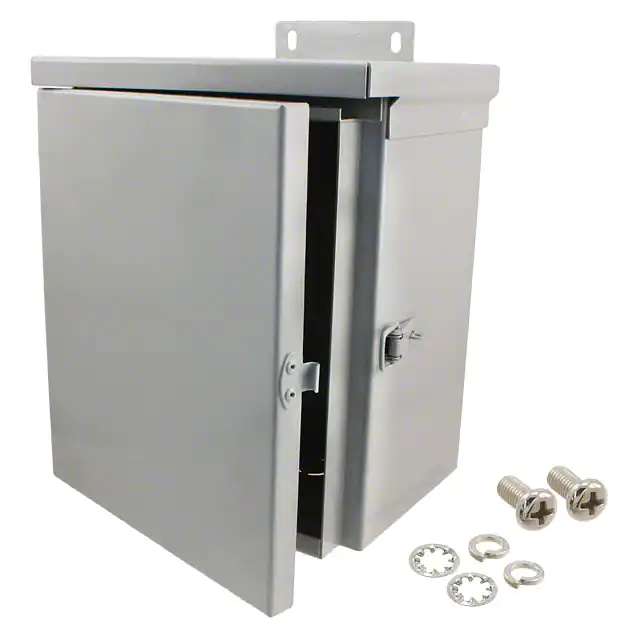

N3R-5805BOX STEEL GRAY 8"L X 6"W Bud Industries |
4,997 |
|
数据手册 |
N3R | Bulk | Active | Box | 8.000" L x 6.000" W (203.20mm x 152.40mm) | 10.000" (254.00mm) | 48.0in² (310cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Knockouts, Wall Mount | NEMA 3R, UL50, UL50E | - |
|
|
PN-1342BOX PLAS GRAY 11.812"L X 9.056"W Bud Industries |
1,065 |
|
数据手册 |
PN | Bulk | Active | Box | 11.812" L x 9.056" W (300.02mm x 230.02mm) | 3.406" (86.51mm) | 107in² (690cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.140" (3.56mm) | Card Guides, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
|
ANS-3825-BBOX ALUM BLACK 6.38"L X 6.38"W Bud Industries |
3,601 |
|
数据手册 |
ANS | Bulk | Active | Box | 6.378" L x 6.378" W (162.00mm x 162.00mm) | 2.165" (55.00mm) | 40.7in² (263cm²) | Cover Included | Metal, Aluminum | Black | 0.098" (2.49mm) | EMI Shielded, PCB Supports | IP67, NEMA 1,2,4,4X,12,13 | - |
|
|
NBF-32034BOX ABS GRAY 19.68"L X 15.74"W Bud Industries |
1,128 |
|
数据手册 |
NBF | Bulk | Active | Box | 19.680" L x 15.740" W (499.87mm x 399.80mm) | 7.870" (199.90mm) | 310in² (2000cm²) | Hinged Door, Lid | Plastic, ABS | Gray | 0.165" (4.20mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 HB |
|
|
NBF-32320BOX ABS/PBT GRY 11.81"L X 7.87"W Bud Industries |
4,603 |
|
数据手册 |
NBF | Bulk | Active | Box | 11.810" L x 7.870" W (299.97mm x 199.90mm) | 7.870" (199.90mm) | 92.9in² (599cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.145" (3.68mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
