箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G10A,BKBOX ABS BLACK 4.38"L X 3.25"W Serpac |
2,374 |
|
数据手册 |
G | Bulk | Active | Box, Potting | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 0.890" (22.61mm) | 14.2in² (92cm²) | Open End(s) | Plastic, ABS | Black | 0.090" (2.29mm) | PCB Supports | IP40 | UL94 HB |
|
G10A,WHBOX ABS WHITE 4.38"L X 3.25"W Serpac |
3,420 |
|
数据手册 |
G | Bulk | Active | Box, Potting | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 0.890" (22.61mm) | 14.2in² (92cm²) | Open End(s) | Plastic, ABS | White | 0.090" (2.29mm) | PCB Supports | IP40 | UL94 HB |
|
G10,WHBOX ABS WHITE 4.38"L X 3.25"W Serpac |
4,978 |
|
数据手册 |
G | Bulk | Active | Box, Potting | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 0.890" (22.61mm) | 14.2in² (92cm²) | Open End(s) | Plastic, ABS | White | 0.090" (2.29mm) | PCB Supports | IP40 | UL94 HB |
|
222,ALBOX ABS ALMOND 4.1"L X 2.6"W Serpac |
1,630 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

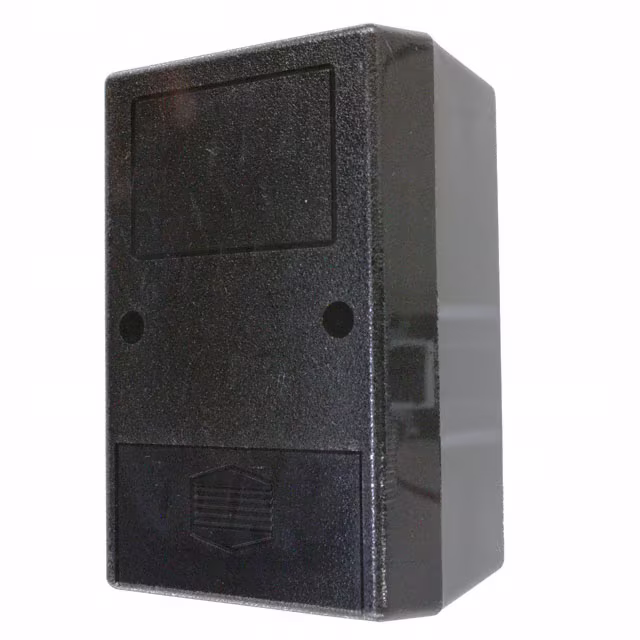

222,BKBOX ABS BLACK 4.1"L X 2.6"W Serpac |
4,218 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

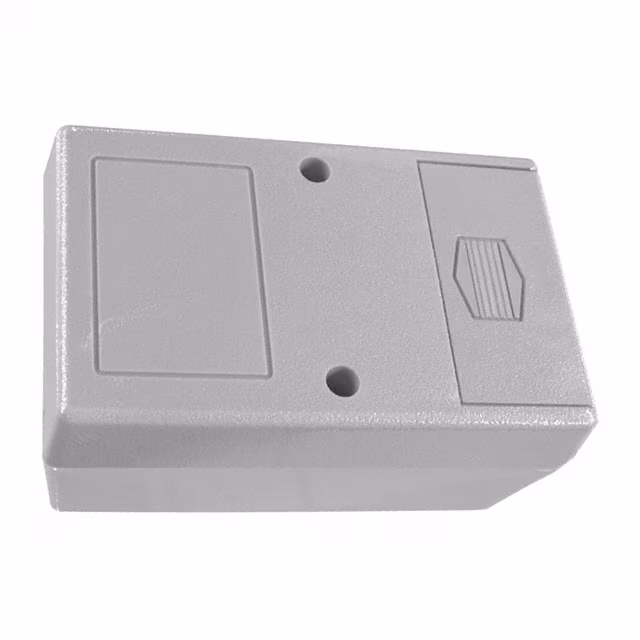

222,GYBOX ABS GRAY 4.1"L X 2.6"W Serpac |
3,201 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
222I,ALBOX ABS ALMOND 4.1"L X 2.6"W Serpac |
2,352 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

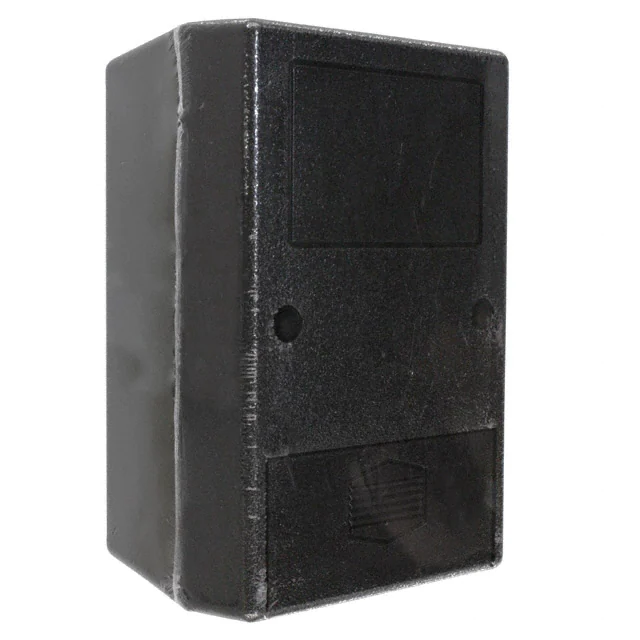

222I,BKBOX ABS BLACK 4.1"L X 2.6"W Serpac |
1,159 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
222I,GYBOX ABS GRAY 4.1"L X 2.6"W Serpac |
1,737 |
|
数据手册 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 2.000" (50.80mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
C28PC,ALBOX ABS ALMOND 5"L X 1.85"W Serpac |
3,724 |
|
数据手册 |
C | Bulk | Active | Box | 5.000" L x 1.850" W (127.00mm x 46.99mm) | 1.000" (25.40mm) | 9.25in² (59.7cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.090" (2.29mm) | Pocket Clip | IP40 | UL94 HB |
