箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H679V,BKBOX ABS BLACK 4.94"L X 2.75"W Serpac |
131 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 1.280" (32.51mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.080" (2.03mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
M4PC,BKBOX ABS BLACK 2.8"L X 2.2"W Serpac |
288 |
|
数据手册 |
M | Bulk | Active | Box | 2.800" L x 2.200" W (71.12mm x 55.88mm) | 0.710" (18.03mm) | 6.15in² (39.7cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, AA, Pocket Clip | IP40 | UL94 HB |
|
WM052RI,GYBOX ABS GRAY 5.62"L X 3.25"W Serpac |
525 |
|
数据手册 |
WM | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 1.600" (40.64mm) | 18.3in² (118cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM053RI,BKBOX ABS BLACK 5.62"L X 3.25"W Serpac |
246 |
|
数据手册 |
WM | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.100" (53.34mm) | 18.3in² (118cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM072I,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
125 |
|
数据手册 |
WM | Box | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

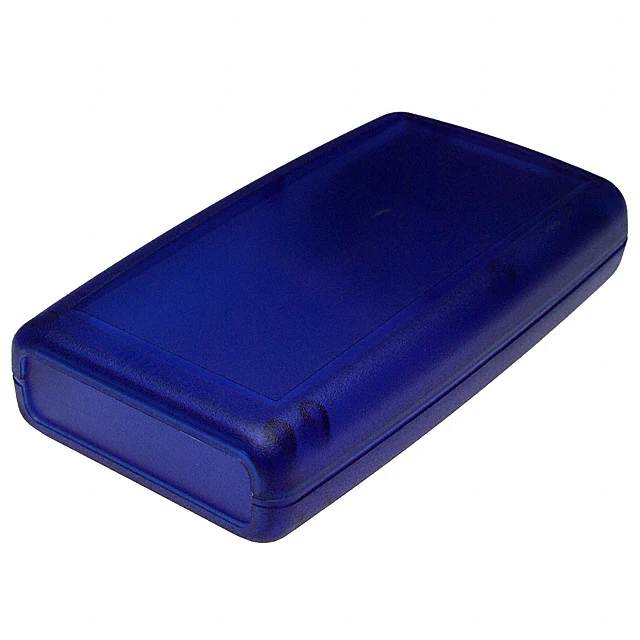

H659V,TRBLBOX ABS TRN BLUE 4.94"L X 2.75"W Serpac |
147 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Blue | 0.080" (2.03mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
WM031RI,BKBOX ABS BLACK 4.38"L X 3.25"W Serpac |
200 |
|
数据手册 |
WM | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.100" (27.94mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
H659V,TRGRBOX ABS TRN GRN 4.94"L X 2.75"W Serpac |
208 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Green | 0.080" (2.03mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
191,BKBOX ABS BLACK 9.5"L X 6.34"W Serpac |
114 |
|
数据手册 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.500" (38.10mm) | 60.2in² (388cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
RB85P12C24GBOX PLASTIC GRAY/CLR Serpac |
258 |
|
数据手册 |
RB | Bulk | Active | Box | - | 3.540" (89.92mm) | 37.1in² (239cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
