箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H659V,TRRDBOX ABS TRN RED 4.94"L X 2.75"W Serpac |
1,386 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Red | 0.080" (2.03mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
072,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
2,404 |
|
数据手册 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.400" (35.56mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
191I,BKBOX ABS BLACK 9.5"L X 6.34"W Serpac |
3,492 |
|
数据手册 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.500" (38.10mm) | 60.2in² (388cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
17S,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
2,216 |
|
数据手册 |
SL | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.490" (63.25mm) | 33.6in² (217cm²) | Split Sides and Slanted Top | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 4X,12,14 | UL94 HB |
|
094,GYBOX ABS GRAY 9.5"L X 6.34"W Serpac |
2,935 |
|
数据手册 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 2.400" (60.96mm) | 60.2in² (388cm²) | Cover Included, Hand Held | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
094I,BKBOX ABS BLACK 9.5"L X 6.34"W Serpac |
2,551 |
|
数据手册 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 2.400" (60.96mm) | 60.2in² (388cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
RBF33P06C08CENCLOSURE PLAS 3.23"L X 3.15"W Serpac |
1,722 |
|
数据手册 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 1.380" (35.05mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|
|
RBF33P06G28GENCLOSURE PLAS 3.23"L X 3.15"W Serpac |
4,872 |
|
数据手册 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 3.350" (85.09mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|
RB65P06C24BBOX PLAS BLK/CLR 6.3"L X 4.72"W Serpac |
4,061 |
|
数据手册 |
RB | Box | Active | Box | 6.300" L x 4.720" W (160.02mm x 119.89mm) | 2.950" (74.93mm) | 18.9in² (122cm²) | Cover Included | Plastic, Polycarbonate | Black, Clear Cover/Door | 0.130" (3.30mm) | - | IP67, NEMA 4 | UL94 V-0 |
|

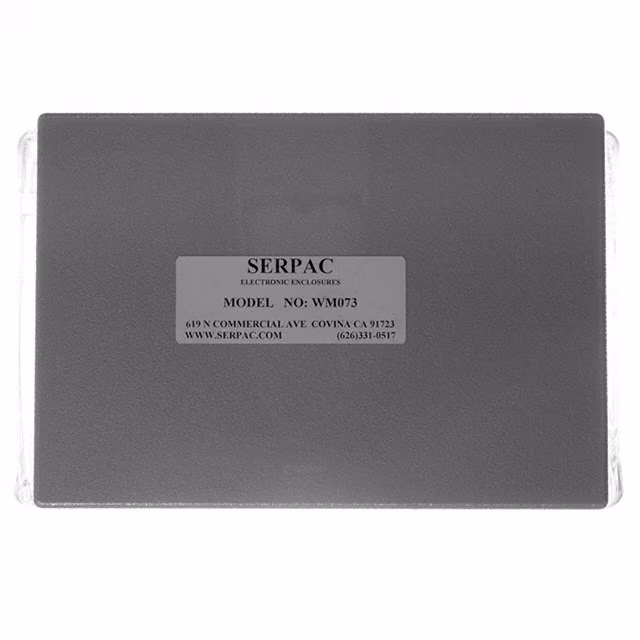

WM073,GYBOX ABS GRAY 6.88"L X 4.88"W Serpac |
1,350 |
|
数据手册 |
WM | Box | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.100" (53.34mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
