箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB55P14C16GBOX PLASTIC GRAY/CLR Serpac |
2,686 |
|
数据手册 |
RB | Bulk | Active | Box | - | 2.950" (74.93mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
|
RB55P14C16BBOX PLASTIC BLK/CLR Serpac |
4,651 |
|
数据手册 |
RB | Bulk | Active | Box | - | 2.950" (74.93mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Black, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
|
RB55P14B16BBOX PLASTIC BLACK Serpac |
2,201 |
|
数据手册 |
RB | Bulk | Active | Box | - | 2.950" (74.93mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Black | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
H65AA,TRGRBOX ABS TRN GRN 4.94"L X 2.75"W Serpac |
4,049 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Green | 0.080" (2.03mm) | Battery Compartment, AA, PCB Supports | IP40 | UL94 HB |
|
H65AA,TRGYBOX ABS TRN GRAY 4.94"L X 2.75"W Serpac |
4,644 |
|
数据手册 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Gray | 0.080" (2.03mm) | Battery Compartment, AA, PCB Supports | IP40 | UL94 HB |
|
WM091,ALBOX ABS ALMOND 9.5"L X 6.34"W Serpac |
2,073 |
|
数据手册 |
WM | Box | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.100" (27.94mm) | 60.2in² (388cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

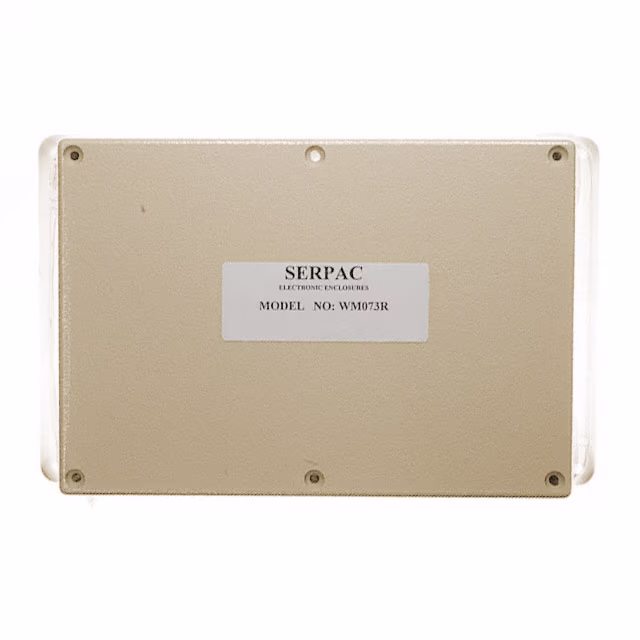

WM073R,ALBOX ABS ALMOND 6.88"L X 4.88"W Serpac |
3,434 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.100" (53.34mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

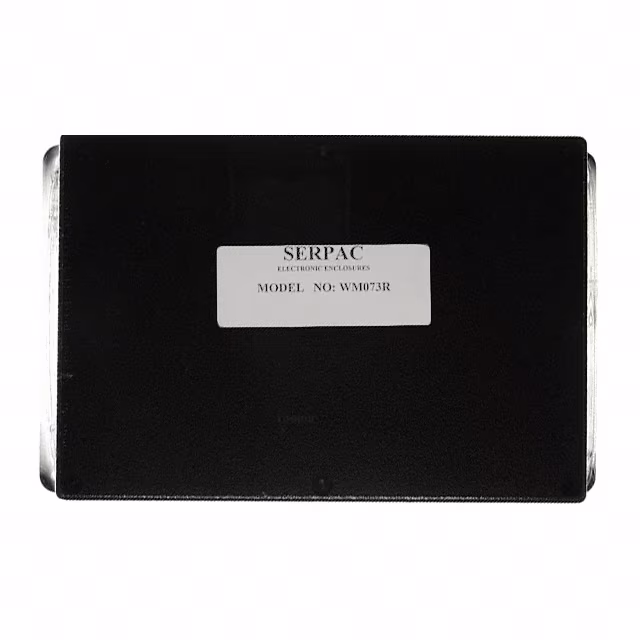

WM073R,BKBOX ABS BLACK 6.88"L X 4.88"W Serpac |
1,951 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.100" (53.34mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

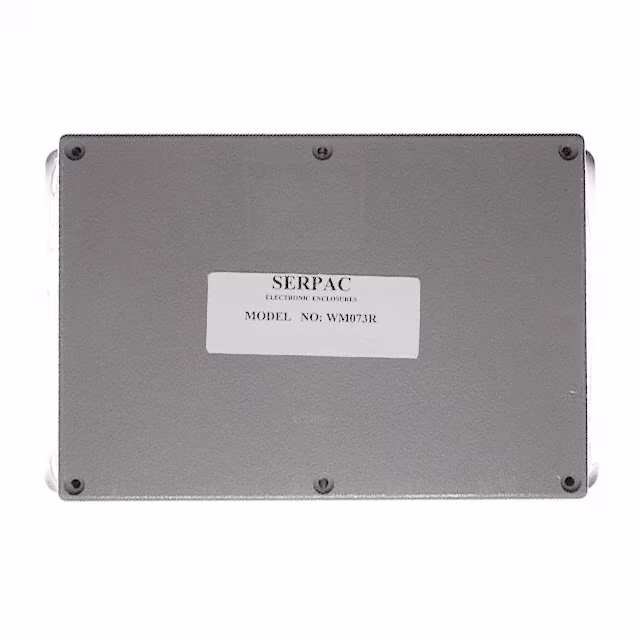

WM073R,GYBOX ABS GRAY 6.88"L X 4.88"W Serpac |
2,455 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.100" (53.34mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM073RI,ALBOX ABS ALMOND 6.88"L X 4.88"W Serpac |
1,420 |
|
数据手册 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.100" (53.34mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
