单个预偏置双极晶体管
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 晶体管类型 | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 电阻 - 基极 (R1) | 电阻 - 发射极基极 (R2) | 直流电流增益（hFE）（最小值）@ Ic, Vce | 集电极饱和电压 (Vce)（最大值）@ Ib, Ic | 电流 - 集电极截止（最大值） | 频率 - 跃迁 | 功率 - 最大值 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDTC115EE-7-FTRANS PREBIAS NPN 50V SOT523 |
5,631 |
|
数据手册 |
- | SOT-523 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 100 kOhms | 100 kOhms | 82 @ 5mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 150 mW | - | - | Surface Mount | SOT-523 |
|
RN1404S,LFTRANS PREBIAS NPN 50V 0.1A SMINI |
4,962 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | S-Mini |
|
NSVMUN2237T1GTRANS PREBIAS NPN 50V 0.1A SC59 |
5,918 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | 22 kOhms | 80 @ 5mA, 10V | 250mV @ 5mA, 10mA | 500nA | - | 230 mW | Automotive | AEC-Q101 | Surface Mount | SC-59 |
|
|
NSVMUN2236T1GTRANS PREBIAS NPN 50V 0.1A SC59 |
4,702 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 100 kOhms | 100 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 230 mW | Automotive | AEC-Q101 | Surface Mount | SC-59 |
|

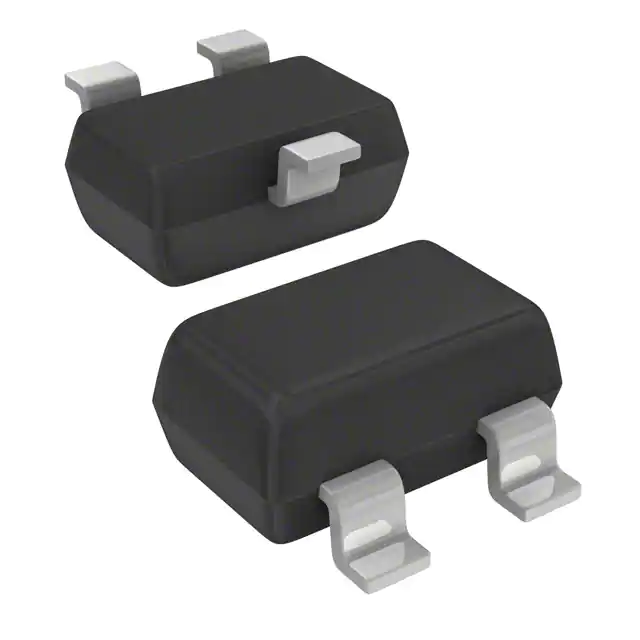

DTC114YUA-HFTRANS PREBIAS NPN SOT323 |
3,760 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 70 mA | - | 10 kOhms | 47 kOhms | 68 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC143XUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
2,693 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 4.7 kOhms | 10 kOhms | 30 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC123JUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
8,184 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 2.2 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC143ZUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
6,844 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 4.7 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC113ZUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
7,669 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 1 kOhms | 10 kOhms | 33 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC123YUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
7,812 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 2.2 kOhms | 10 kOhms | 33 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
|
DTC114WUA-HFTRANS PREBIAS NPN 0.1A SOT323 |
6,053 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 10 kOhms | 4.7 kOhms | 24 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SOT-323 |
|
NHDTA144ETVLTRANS PREBIAS PNP 80V TO236AB |
4,831 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 80 V | 47 kOhms | 47 kOhms | 100 @ 10mA, 5V | 100mV @ 500µA, 10mA | 100nA | 150 MHz | 250 mW | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
NSVMUN5134T1GPNP BIPOLAR DIGITAL TRANSISTOR ( |
3,997 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 22 kOhms | 47 kOhms | 80 @ 1mA, 5V | 250mV @ 1mA, 10mA | 500nA | - | 202 mW | Automotive | AEC-Q101 | Surface Mount | SC-70-3 (SOT323) |
|
|
NSVMUN5216T1GNPN BIPOLAR DIGITAL TRANSISTOR ( |
3,491 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 202 mW | Automotive | AEC-Q101 | Surface Mount | SC-70-3 (SOT323) |
|
DTC143XEBHZGTLTRANS PREBIAS NPN 0.1A EMT3F |
3,302 |
|
数据手册 |
- | SC-89, SOT-490 | Tape & Reel (TR) | Not For New Designs | NPN - Pre-Biased | 100 mA | - | 4.7 kOhms | 10 kOhms | 30 @ 10mA, 5V | 300mV @ 500µA, 10mA | - | 250 MHz | 150 mW | Automotive | AEC-Q101 | Surface Mount | EMT3F (SOT-416FL) |
|
|
UNR211E00LTRANS PREBIAS PNP 50V 0.1A MINI3 |
3,467 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 47 kOhms | 22 kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 200 mW | - | - | Surface Mount | Mini3-G1 |
|
UNR5214G0LTRANS PREBIAS NPN 50V SMINI3 |
4,861 |
|
数据手册 |
- | SC-85 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 150 mW | - | - | Surface Mount | SMini3-F2 |
|
DDTC114EKA-7-FTRANS PREBIAS NPN 50V SC59-3 |
3,906 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 10 kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SC-59-3 |
|
RN1106MFV(TL3,T)TRANS PREBIAS NPN 50V 0.1A VESM |
2,946 |
|
数据手册 |
- | SOT-723 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 500µA, 5mA | 500nA | - | 150 mW | - | - | Surface Mount | VESM |
|
RN1114(T5L,F,T)TRANS PREBIAS NPN 50V 0.1A SSM |
9,013 |
|
数据手册 |
- | SC-75, SOT-416 | Cut Tape (CT) | Active | NPN - Pre-Biased | 100 mA | 50 V | 1 kOhms | 10 kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 100 mW | - | - | Surface Mount | SSM |
