单个预偏置双极晶体管
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 晶体管类型 | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 电阻 - 基极 (R1) | 电阻 - 发射极基极 (R2) | 直流电流增益（hFE）（最小值）@ Ic, Vce | 集电极饱和电压 (Vce)（最大值）@ Ib, Ic | 电流 - 集电极截止（最大值） | 频率 - 跃迁 | 功率 - 最大值 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN1102T5LFTTRANS PREBIAS NPN 50V 0.1A SSM |
4,497 |
|
数据手册 |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 10 kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 100 mW | - | - | Surface Mount | SSM |
|

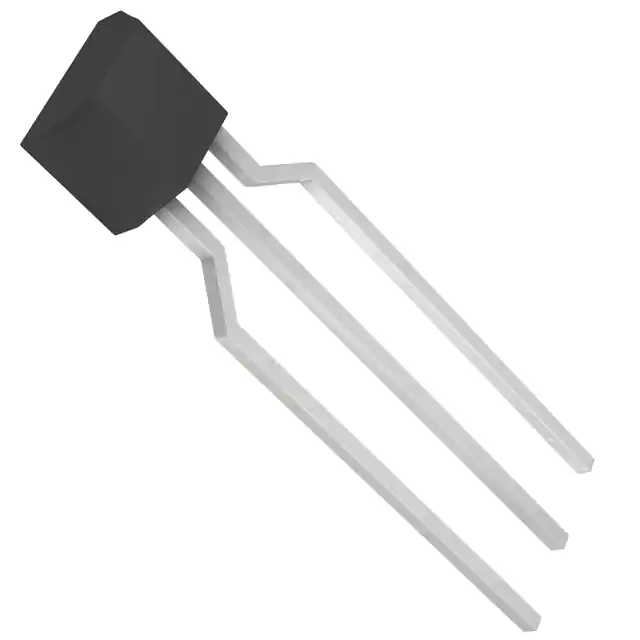

DTB113ZSTPTRANS PREBIAS PNP 50V 0.5A SPT |
8,195 |
|
数据手册 |
- | SC-72 Formed Leads | Tape & Box (TB) | Obsolete | PNP - Pre-Biased | 500 mA | 50 V | 1 kOhms | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 300 mW | - | - | Through Hole | SPT |
|
|
DTB143ESTPTRANS PREBIAS PNP 50V 0.5A SPT |
9,487 |
|
数据手册 |
- | SC-72 Formed Leads | Tape & Box (TB) | Obsolete | PNP - Pre-Biased | 500 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 47 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 300 mW | - | - | Through Hole | SPT |
|
DTB543ZETLTRANS PREBIAS PNP 12V 0.5A EMT3 |
4,848 |
|
数据手册 |
- | SC-75, SOT-416 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 500 mA | 12 V | 4.7 kOhms | 47 kOhms | 140 @ 100mA, 2V | 300mV @ 5mA, 100mA | 500nA | 260 MHz | 150 mW | - | - | Surface Mount | EMT3 |
|
|
DTD743ZETLTRANS PREBIAS NPN 30V 0.2A EMT3 |
9,782 |
|
数据手册 |
- | SC-75, SOT-416 | Tape & Reel (TR) | Not For New Designs | NPN - Pre-Biased | 200 mA | 30 V | 4.7 kOhms | 10 kOhms | 140 @ 100mA, 2V | 300mV @ 2.5mA, 50mA | 500nA | 260 MHz | 150 mW | - | - | Surface Mount | EMT3 |
|
|
DTD114ESTPTRANS PREBIAS NPN 50V 0.5A SPT |
8,364 |
|
数据手册 |
- | SC-72 Formed Leads | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 500 mA | 50 V | 10 kOhms | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 300 mW | - | - | Through Hole | SPT |
|
DTB122JKT146TRANS PREBIAS PNP 50V 0.5A SMT3 |
2,477 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | PNP - Pre-Biased | 500 mA | 50 V | 220 Ohms | 4.7 kOhms | 47 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 10µA | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
UNRF1A400ATRANS PREBIAS PNP 50V ML3-N2 |
9,292 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 80 mA | 50 V | 10 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 100 mW | - | - | Surface Mount | ML3-N2 |
|
|
UNRF2A300ATRANS PREBIAS NPN 50V ML3-N2 |
5,030 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 80 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 100 mW | - | - | Surface Mount | ML3-N2 |
|
|
UNRF2A700ATRANS PREBIAS NPN 50V ML3-N2 |
3,273 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 80 mA | 50 V | 22 kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 100 mW | - | - | Surface Mount | ML3-N2 |
|
|
UNRF1A300ATRANS PREBIAS PNP 50V ML3-N2 |
7,274 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 80 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 100 mW | - | - | Surface Mount | ML3-N2 |
|
|
UNRF2A100ATRANS PREBIAS NPN 50V ML3-N2 |
8,555 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 80 mA | 50 V | 10 kOhms | 10 kOhms | 35 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 100 mW | - | - | Surface Mount | ML3-N2 |
|
UNR411F00ATRANS PREBIAS PNP 50V NS-B1 |
2,951 |
|
数据手册 |
- | 3-SIP | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 10 kOhms | 30 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR411L00ATRANS PREBIAS PNP 50V NS-B1 |
3,091 |
|
数据手册 |
- | 3-SIP | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 20 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR421300ATRANS PREBIAS NPN 50V NS-B1 |
4,602 |
|
数据手册 |
- | 3-SIP | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR411100ATRANS PREBIAS PNP 50V NS-B1 |
3,736 |
|
数据手册 |
- | 3-SIP | Tape & Box (TB) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 10 kOhms | 10 kOhms | 35 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR411E00ATRANS PREBIAS PNP 50V NS-B1 |
2,876 |
|
数据手册 |
- | 3-SIP | Tape & Box (TB) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 47 kOhms | 22 kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR42100RATRANS PREBIAS NPN 50V NS-B1 |
9,174 |
|
数据手册 |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR421200ATRANS PREBIAS NPN 50V NS-B1 |
3,240 |
|
数据手册 |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | 22 kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR421400ATRANS PREBIAS NPN 50V NS-B1 |
2,678 |
|
数据手册 |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 47 kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
