汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAR1C40DC24-SCAR40 SERIES, SPDT, 40A, DC24V C |
3,688 |
|
数据手册 |
CAR40 | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
A42CS12VDCRELAY AUTO 2 SPDT 12VDC PCB |
4,613 |
|
数据手册 |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

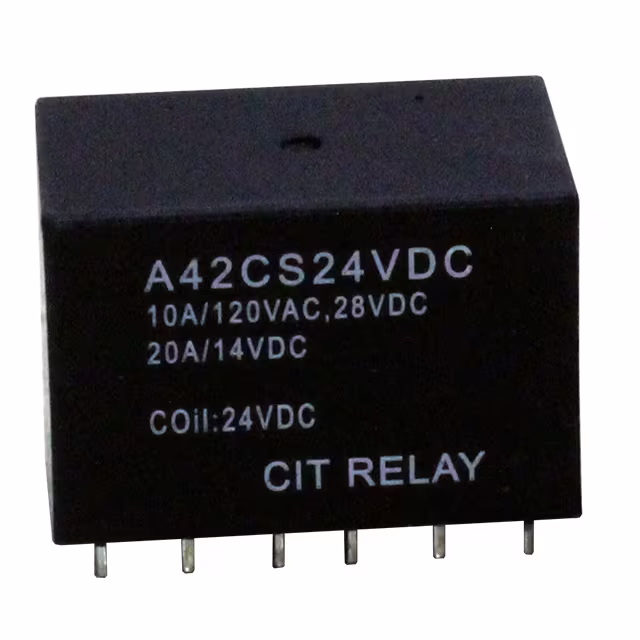

A42CS24VDCRELAY AUTO 2 SPDT 24VDC PCB |
2,999 |
|
数据手册 |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
1480422-1RELAY MINI RELE ALARME SONORO |
4,159 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4-1393306-7RELAY MINI VF711F11Z10/X863 |
2,799 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1393306-1RELAY MINI VF4M11F13Z06/X832 |
4,516 |
|
数据手册 |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

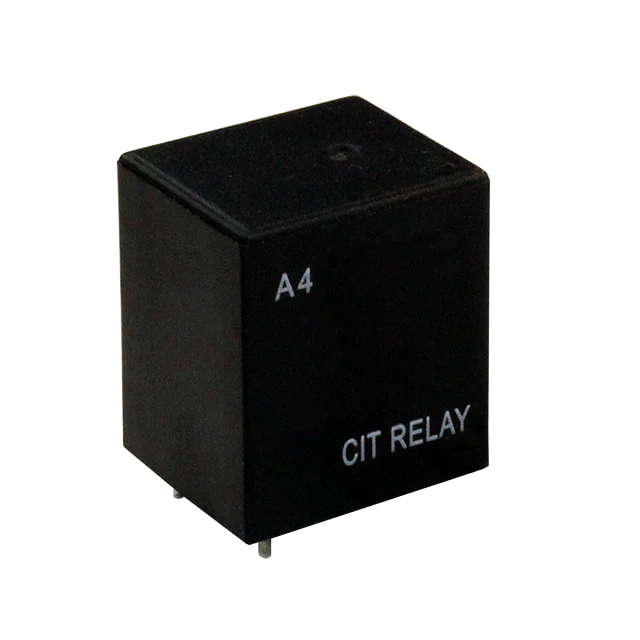

A42US24VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
1,186 |
|
数据手册 |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A42US12VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
3,381 |
|
数据手册 |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A151US12VDCRELAY AUTOMOTIVE 20A SPST NO 1U |
4,348 |
|
数据手册 |
A15 | Tube | Obsolete | Non Latching | 57.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A42AS24VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
2,598 |
|
数据手册 |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8N-1H-DC12-SKSUPER MICRO RELAY |
2,947 |
|
数据手册 |
G8N-1 | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
7-1393303-2RELAY MINI PLUG-IN |
1,939 |
|
数据手册 |
V23134, AXICOM | Bulk | Obsolete | Non Latching | - | - | SPST-NO (1 Form A) | - | - | - | - | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1-1393302-9RELAY MINI PLUG-IN |
3,855 |
|
数据手册 |
V23134, AXICOM | Bulk | Last Time Buy | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | - | - | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
RA-400012-DSTERM |
4,460 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC-250012-DNTERM |
1,735 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JSM1-12V-5RELAY AUTOMOTIVE SPDT 15A 12V |
2,294 |
|
数据手册 |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACTE5R2RELAY AUTOMOTIVE SPDTX2 20A 12V |
1,268 |
|
数据手册 |
TE | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5H3RELAY AUTOMOTIVE SPDTX2 20A 12V |
2,457 |
|
数据手册 |
TE | Bulk | Active | Non Latching | 54.5 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.7 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5R3RELAY AUTOMOTIVE SPDTX2 20A 12V |
3,480 |
|
数据手册 |
TE | Tube | Active | Non Latching | 54.5 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.7 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5H2RELAY AUTOMOTIVE |
1,031 |
|
数据手册 |
TE | Bulk | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
