汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

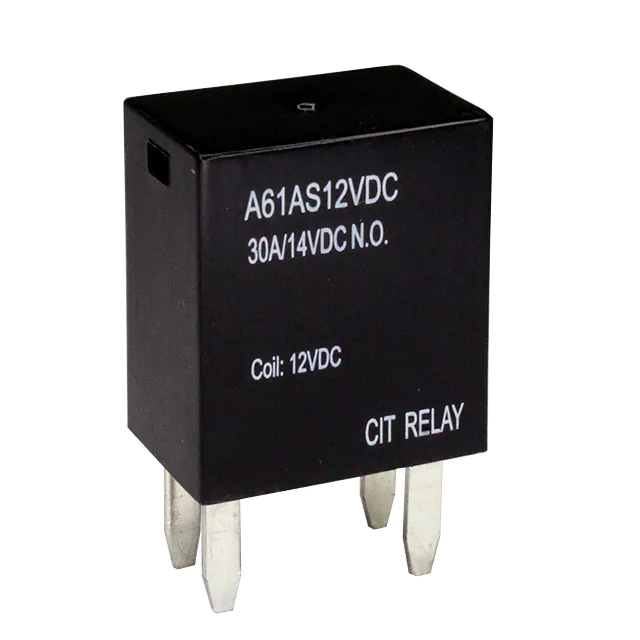

A61AS12VDC.9RRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
218 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS12VDC1.3DRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
212 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2F1CSQ24VDC1.9RRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
107 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

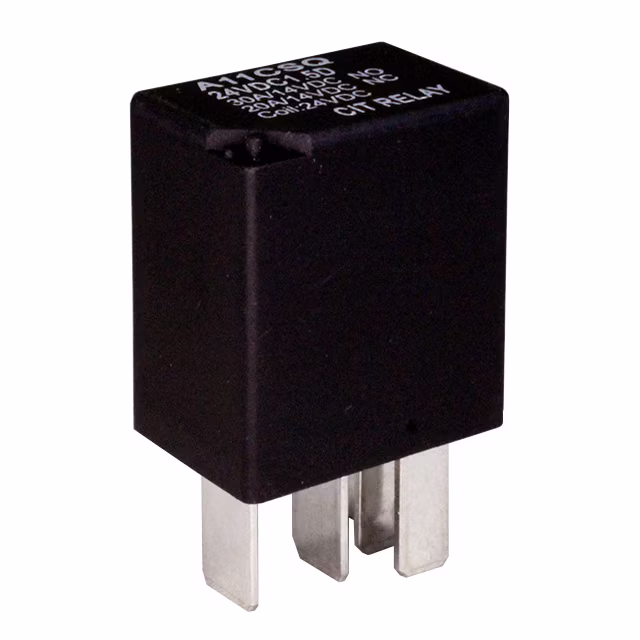

A11CSQ24VDC1.5DRELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
824 |
|
数据手册 |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A2HM1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V CIT Relay and Switch |
419 |
|
数据手册 |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61AS12VDC1.3RRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
500 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC1.3RELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
240 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A171AHS24VDC.96DRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
254 |
|
数据手册 |
A17 | Tray | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

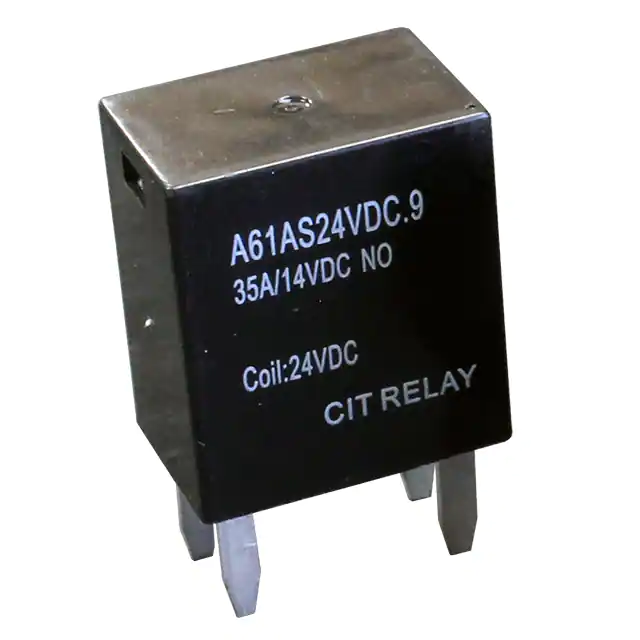

A61AS24VDC.9RRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
250 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC.9DRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
230 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
