铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCHV1471M1EFH0002XCAP ALUMHYB 470UF 20% 16V SMD |
2,036 |
|
数据手册 |
HV1 | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 16 V | 18mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
MAL218597305E3CAP ALUM POLY 820UF 20% 6.3V SMD |
2,906 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
2.5SLG150M1.4X7.3CAP ALUM POLY 150UF 20% 2.5V SMD |
3,423 |
|
数据手册 |
PC-CON, SLG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount | |
|
|
2SLG180M1.4X7.3CAP ALUM POLY 180UF 20% 2V SMD |
3,398 |
|
数据手册 |
PC-CON, SLG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount | |
|
MAL218697553E3CAP ALUM POLY 120UF 20% 20V SMD |
1,721 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 120 µF | ±20% | 20 V | 35mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | Surface Mount | |
|
APXA160ARA101MJ80GCAP ALUM POLY 100UF 20% 16V SMD |
1,411 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | - | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MAL218597404E3CAP ALUM POLY 330UF 20% 10V SMD |
4,893 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 330 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount | |
|
|
RSHV1330M1RFH0002EXCAP ALUM HYBRID 33UF 20% 80V SMD |
3,231 |
|
数据手册 |
HV1 | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
|
PCH1E101MCL4GSCAP ALUM POLY 100UF 20% 25V SMD |
4,478 |
|
数据手册 |
PCH | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.248" (6.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ESRD4R7M16BCAP ALUM POLY 4.7UF 20% 16V SMD |
3,698 |
|
数据手册 |
ESRD | Bulk | Obsolete | Polymer | 4.7 µF | ±20% | 16 V | 80mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218497257E3CAP ALUM POLY 1500UF 20% 2.5V |
4,054 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 1500 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

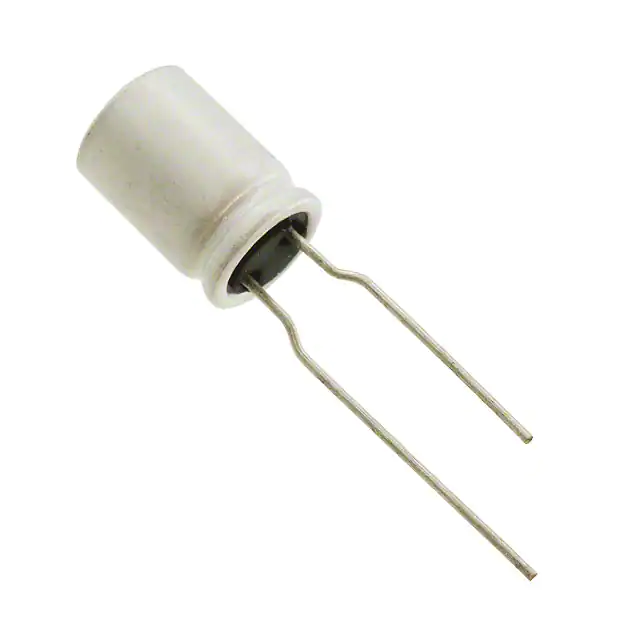

RNE0E681MDN1PXCAP ALUM POLY 680UF 20% 2.5V TH |
4,180 |
|
数据手册 |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 490 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
PLF0G271MDL4TDCAP ALUM POLY 270UF 20% 4V TH |
3,736 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 4 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
RNE0E681MDN1KXCAP ALUM POLY 680UF 20% 2.5V TH |
1,140 |
|
数据手册 |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 490 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
RNU0J471MDN1KXCAP ALUM POLY 470UF 20% 6.3V TH |
1,493 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
RSA0E331MCN1GSCAP ALUM POLY 330UF 20% 2.5V SMD |
3,046 |
|
数据手册 |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | |
|
APXG250ARA820MH80GCAP ALUM POLY 82UF 20% 25V SMD |
1,749 |
|
数据手册 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 26mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
URP1C331MPN1012CAP ALUM POLY 330UF 20% 16V TH |
2,611 |
|
数据手册 |
URP | Active | Polymer | 330 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
MAL218697603E3CAP ALUM POLY 47UF 20% 25V SMD |
2,806 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 47 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
SPSX121M06R-7CAP ALUM POLY 120UF 20% 6V SMD |
1,197 |
|
数据手册 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
