铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNE1C561MCN1CAP ALUM POLY 120UF 20% 50V SMD |
2,951 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RNE1C561MDN1CAP ALUM HYBRID 68UF 20% 25V SMD |
1,214 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RPA1012122M010BCAP ALUM POLY 1200UF 20% 10V TH |
4,218 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 1200 µF | ±20% | 10 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
RKS1D151MCNAHHGSCAP ALUM POLY 150UF 20% 20V SMD |
4,449 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLS0G561MCO6CAP ALUM POLY 560UF 20% 4V TH |
4,593 |
|
数据手册 |
PLS | Bulk | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|

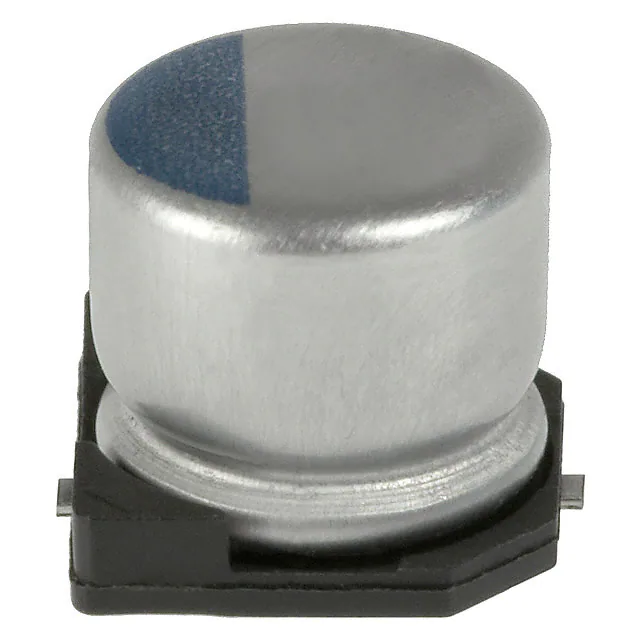

APXH2R5ARA221MF60GCAP ALUM POLY 220UF 20% 2.5V SMD |
4,615 |
|
数据手册 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APXH4R0ARA151MF60GCAP ALUM POLY 150UF 20% 4V SMD |
4,299 |
|
数据手册 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RAHVX470M1GDC8002CAP ALUM HYBRID 47UF 20% 35V SMD |
2,651 |
|
数据手册 |
HVX | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APXA160ARA3R3MD55GCAP ALUM POLY 3.3UF 20% 16V SMD |
3,357 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 3.3 µF | ±20% | 16 V | 260mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
RNE1C681MCNASQCAP ALUM HYBRID 68UF 20% 35V SMD |
3,834 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RNU1A821MDNASQCAP ALUM POLY 820UF 20% 10V TH |
4,098 |
|
数据手册 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 820 µF | ±20% | 10 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 580 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RNE1C681MCN1CAP ALUM POLY 180UF 20% 25V SMD |
3,990 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RNU1A821MCNASQCAP ALUM POLY 820UF 20% 10V TH |
2,654 |
|
数据手册 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 820 µF | ±20% | 10 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 580 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
PLF1E100MCL2TDCAP ALUM POLY 10UF 20% 25V TH |
4,303 |
|
数据手册 |
PLF | Tape & Box (TB) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | - | Through Hole | |
|
|
APXA6R3ARA220MD55GCAP ALUM POLY 22UF 20% 6.3V SMD |
4,553 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 200mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 740 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
RPS0J561MCN1GSCAP ALUM POLY 560UF 20% 6.3V SMD |
4,858 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 440 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RPA1012222M002BCAP ALUM POLY 2.2MF 20% 2.5V TH |
1,629 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 2.2 mF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
A765EB277M0GLAE015CAP ALUM POLY 270UF 20% 4V SMD |
4,571 |
|
数据手册 |
A765 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
MAL218497413E3CAP ALUM POLY 330UF 20% 10V SMD |
4,970 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 330 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APZ1012101M050RCAP ALUM POLY 100UF 20% 50V SMD |
2,136 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
