铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F862DO474K310ZV054V122CAP ALUM HYBRID 68UF 20% 25V SMD |
3,907 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
APZ0609330M063RCAP ALUM POLY 33UF 20% 63V SMD |
1,081 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 25 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RNE1C471MCSBSQCAP ALUM POLY 39UF 20% 80V SMD |
4,684 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
A7C5MS567M1EBAS017CAP ALU HYBRID RADL 560UF 25V |
3,177 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1D820MCNAHGGSCAP ALUM POLY 82UF 20% 20V SMD |
4,832 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1E820MCNAHGGSCAP ALUM POLY 82UF 20% 25V SMD |
1,632 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1V820MCNAHGGSCAP ALUM POLY 82UF 20% 35V SMD |
4,664 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
APZ0811152M006RCAP ALUM POLY 1.5MF 20% 6.3V SMD |
1,424 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 1.5 mF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
RR70G821MDN1PHCAP ALUM POLY 820UF 20% 4V TH |
4,130 |
|
数据手册 |
FPCAP, RR7 | Tape & Box (TB) | Active | Polymer | 820 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
RR70G821MDM1CAP ALUM POLY 180UF 20% 20V SMD |
3,380 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1E181MCNAHGGSCAP ALUM POLY 180UF 20% 25V SMD |
3,507 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RNE1C471MCS1CAP ALUM POLY 12UF 20% 63V SMD |
2,397 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RNE1C471MCN1CAP ALUM 56UF 80V |
4,463 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

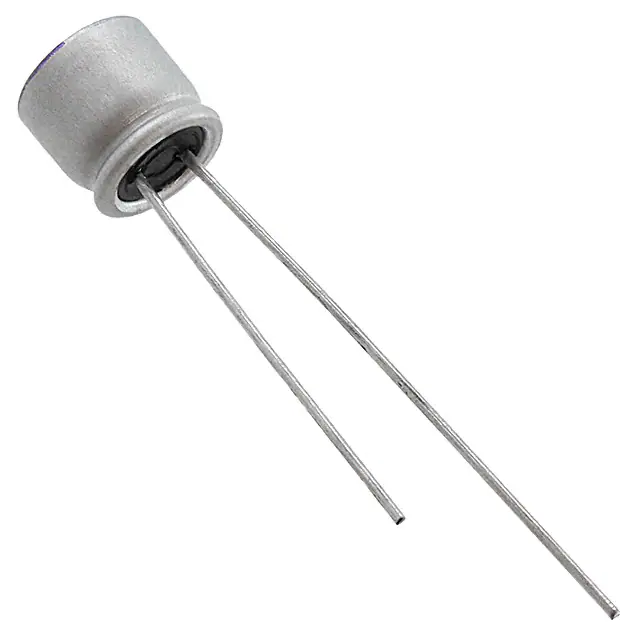

25SEPF56M+TSSCAP ALUM POLY 56UF 20% 25V TH |
2,123 |
|
数据手册 |
OS-CON™, SEPF | Tape & Box (TB) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
UGP1A681MNN0811UCAP ALUM POLY 680UF 20% 10V TH |
4,230 |
|
数据手册 |
UGP | Active | Polymer | 680 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | ||
|
107AVG025MFFCAP ALUM POLY 100UF 20% 25V TH |
1,780 |
|
数据手册 |
AVG | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.374" (9.50mm) | - | Through Hole | |
|
|
RNE0J152MCN1CAP ALUM |
3,211 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RNU0E272MDN1CAP ALUM POLY 2700UF 20% 2.5V TH |
1,715 |
|
数据手册 |
FPCAP, RNU | Bulk | Active | Polymer | 2700 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
RPS1A221MCN1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
1,943 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1E560MCNAHHGSCAP ALUM POLY 56UF 20% 25V SMD |
3,569 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
