铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHA0607100M063BCAP ALUM HYBRID 10UF 20% 63V TH |
2,044 |
|
数据手册 |
RHA | Bulk | Active | Hybrid | 10 µF | ±20% | 63 V | 100mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 50 mA @ 100 Hz | 1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | - | Through Hole | |
|
|
HUW820M1JTR-1010SCAP ALUM POLY 100UF 20% 10V SMD |
1,731 |
|
数据手册 |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
APXA250ARA220MH70SCAP ALUM POLY 22UF 20% 25V SMD |
1,525 |
|
数据手册 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218497307E3CAP ALUM POLY 330UF 20% 6.3V SMD |
1,431 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
HBW271M1VTR-1010SCAP ALUMHYB 270UF 20% 35V SMD |
1,583 |
|
数据手册 |
HBW | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | ||
|
|
HBV271M1VTR-1010SCAP ALUMHYB 270UF 20% 35V SMD |
2,621 |
|
数据手册 |
HBV | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | ||
|
|
A700V476M006ATE0287280CAP ALUM POLY 47UF 20% 6.3V SMD |
3,358 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 28mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
RKS1D101MCNAHGGSCAP ALUM POLY 100UF 20% 20V SMD |
3,925 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1E101MCNAHGGSCAP ALUM POLY 100UF 20% 25V SMD |
4,552 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RL81C271MDNASQKXCAP ALUM POLY 270UF 20% 16V TH |
1,984 |
|
数据手册 |
FPCAP, RL8 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RL81C271MDNASQPXCAP ALUM POLY 270UF 20% 16V TH |
3,268 |
|
数据手册 |
FPCAP, RL8 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
HBO471M1ETR-1010SCAP ALUMHYB 470UF 20% 25V SMD |
1,386 |
|
数据手册 |
HBO | Active | Hybrid | 470 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | ||
|
|
RKS1H390MCNAHGGSCAP ALUM POLY 39UF 20% 50V SMD |
4,125 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1V390MCNAHGGSCAP ALUM POLY 39UF 20% 35V SMD |
3,470 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1D390MCNAHGGSCAP ALUM POLY 39UF 20% 20V SMD |
3,975 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
APV0811561M010RCAP ALUM POLY 560UF 20% 10V SMD |
4,464 |
|
数据手册 |
APV | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RL81C331MDNASQCAP ALUM HYBRID 68UF 20% 50V SMD |
1,396 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RL81C271MCNASQCAP ALUM |
4,589 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RL81C331MCNASQCAP ALUM HYBRID 22UF 20% 80V SMD |
1,756 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

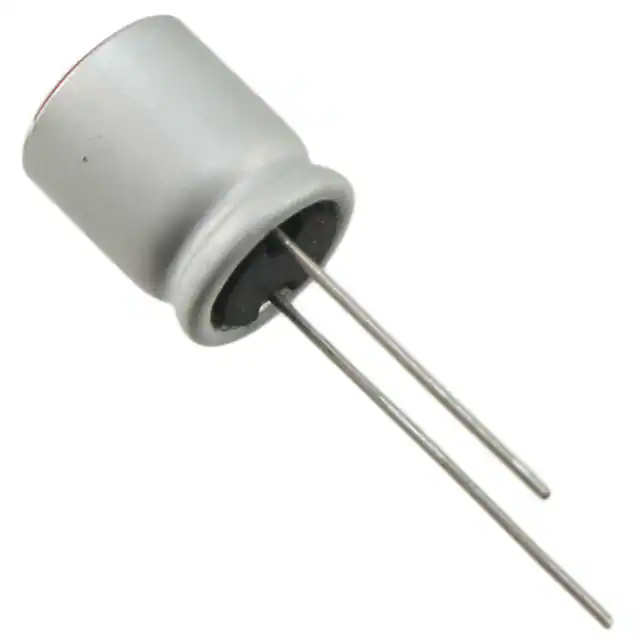

RR50E152MDN1PHCAP ALUM POLY 1500UF 20% 2.5V TH |
2,016 |
|
数据手册 |
FPCAP, RR5 | Tape & Box (TB) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
