铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APD0609470M035RCAP ALUM POLY 47UF 20% 35V SMD |
1,573 |
|
数据手册 |
APD | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
MAL218697401E3CAP ALUM POLY 56UF 20% 10V SMD |
2,697 |
|
数据手册 |
186 CPNT | Box | Active | Polymer | 56 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
RKS1D181MCNAFGGSCAP ALUM POLY 180UF 20% 20V SMD |
3,767 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A7C5MN477M1EBAS020CAP ALU HYBRID RADL 470UF 25V |
1,743 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RNS0J681MDN1CAP ALUM POLY 680UF 20% 6.3V TH |
4,415 |
|
数据手册 |
FPCAP, RNS | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
RL80J561MDNASQCAP ALUM POLY 560UF 20% 6.3V TH |
3,848 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RL80J561MCNASQCAP ALUM POLY 220UF 20% 16V SMD |
4,993 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RS80J561MCNASQCAP ALUM HYBRID 68UF 20% 25V SMD |
4,423 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1J220MCNAHFGSCAP ALUM POLY 22UF 20% 63V SMD |
2,135 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 40mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 218 mA @ 120 Hz | 2.18 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1H220MCNAHFGSCAP ALUM POLY 22UF 20% 50V SMD |
4,408 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1E220MCNAHFGSCAP ALUM POLY 22UF 20% 25V SMD |
2,636 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1V220MCNAHFGSCAP ALUM POLY 22UF 20% 35V SMD |
2,957 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1E560MCNAHFGSCAP ALUM POLY 56UF 20% 25V SMD |
1,875 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RKS1V560MCNAHFGSCAP ALUM POLY 56UF 20% 35V SMD |
3,506 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218497407E3CAP ALUM POLY 100UF 20% 10V SMD |
2,905 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 100 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
MAL218497516E3CAP ALUM POLY 100UF 20% 16V SMD |
3,006 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 100 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 124.5 mA @ 120 Hz | 2.49 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RL81C271MDN1PXCAP ALUM POLY 270UF 20% 16V TH |
1,318 |
|
数据手册 |
FPCAP, RL8 | Tape & Box (TB) | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
MAL218497305E3CAP ALUM POLY 220UF 20% 6.3V SMD |
4,570 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RL81C331MDN1CAP ALUM POLY 330UF 20% 16V TH |
1,899 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|

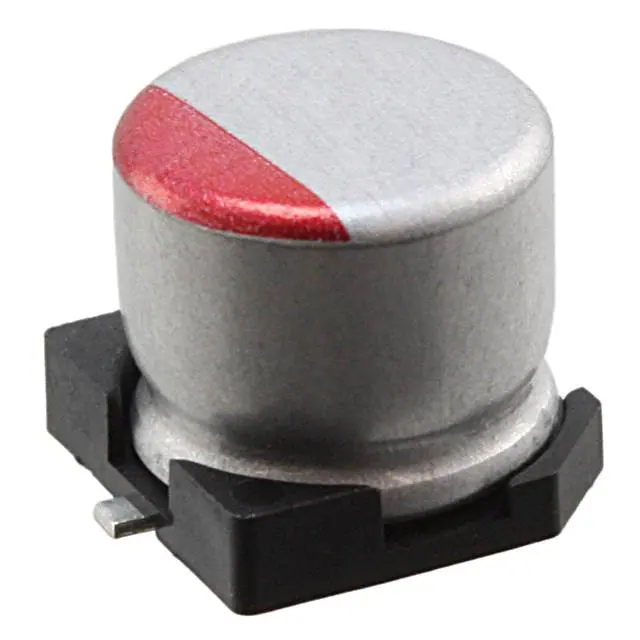

RFA0E331MCN1GSCAP ALUM POLY 330UF 20% 2.5V SMD |
2,783 |
|
数据手册 |
FPCAP, RFA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 330 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
