铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RKS1D390MCNAFEGSCAP ALUM POLY 39UF 20% 20V SMD |
3,558 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 20 V | 50mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

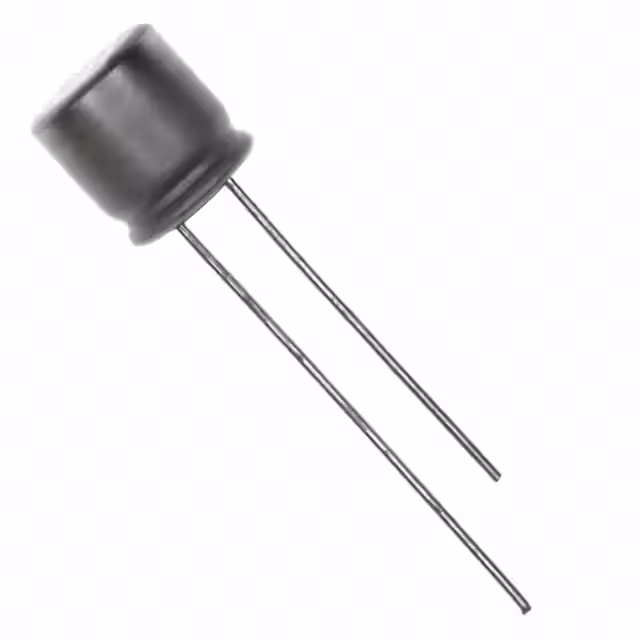

APSC2R5ELL821MH08SCAP ALUM POLY 820UF 20% 2.5V TH |
1,190 |
|
数据手册 |
NPCAP™-PSC | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
APXF4R0ARA471MH70GCAP ALUM POLY 470UF 20% 4V SMD |
2,280 |
|
数据手册 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
APZ0606470M035RCAP ALUM POLY 47UF 20% 35V SMD |
2,829 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APZ0609151M025RCAP ALUM POLY 150UF 20% 25V SMD |
2,306 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APZ0609331M010RCAP ALUM POLY 330UF 20% 10V SMD |
2,045 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RKS1E390MCNAFEGSCAP ALUM POLY 39UF 20% 25V SMD |
2,306 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 25 V | 50mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RKS1V390MCNAFEGSCAP ALUM POLY 39UF 20% 35V SMD |
4,394 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 60mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A768KS566M1JLAS031CAP ALUM POLY 56UF 20% 63V SMD |
2,053 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RPA0812122M002BCAP ALUM POLY 1200UF 20% 2.5V TH |
4,085 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 1200 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
A7C5KS826M1HAAS036CAP ALU HYBRID RADL 82UF 50V |
1,266 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1H220MCNAFEGSCAP ALUM POLY 22UF 20% 50V SMD |
1,075 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 80mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A768KS227M1VLAS024CAP ALUM POLY 220UF 20% 35V SMD |
4,577 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RS80E821MDM1CAP ALUM POLY 82UF 20% 25V SMD |
2,662 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RL80G821MDN1PXCAP ALUM POLY 820UF 20% 4V TH |
2,580 |
|
数据手册 |
FPCAP, RL8 | Tape & Box (TB) | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
HBV680M1HTR-0810SCAP ALUM HYBRID 68UF 20% 50V SMD |
3,914 |
|
数据手册 |
HBV | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
UPR0J221MNN6308CAP ALUM POLY 220UF 20% 6.3V TH |
2,828 |
|
数据手册 |
UPR | Active | Polymer | 220 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
|
UPR0E561MQ26308CAP ALUM POLY 560UF 20% 2.5V TH |
1,401 |
|
数据手册 |
UPR | Active | Polymer | 560 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
PLF0G271MDL4CAP ALUM POLY 270UF 20% 4V TH |
1,520 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 270 µF | ±20% | 4 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
RKS1V470MCNAFEGSCAP ALUM POLY 47UF 20% 35V SMD |
2,400 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 60mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
