铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1A100MCS1CAP ALUM HYBRID 10UF 20% 63V SMD |
2,527 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RNS0J470MDS1CAP ALUM POLY 47UF 20% 6.3V TH |
1,145 |
|
数据手册 |
FPCAP, RNS | Bulk | Active | Polymer | 47 µF | ±20% | 6.3 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 2.05 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
UPS0J561MNN0808UCAP ALUM POLY 560UF 20% 6.3V TH |
1,144 |
|
数据手册 |
UPS | Active | Polymer | 560 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | ||
 R7-Series.jpg)
|
RR70G561MDN1KXCAP ALUM POLY 560UF 20% 4V TH |
1,288 |
|
数据手册 |
FPCAP, RR7 | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
APXF2R5ARA391ME61GCAP ALUM POLY 390UF 20% 2.5V SMD |
2,009 |
|
数据手册 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
RPA0608331M010BCAP ALUM POLY 330UF 20% 10V TH |
1,180 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 330 µF | ±20% | 10 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole | |
|
|
RPA0606470M025BCAP ALUM POLY 47UF 20% 25V TH |
2,872 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 47 µF | ±20% | 25 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.295" (7.50mm) | - | Through Hole | |
|
|
A768KE336M1HLAS042CAP ALUM POLY 33UF 20% 50V SMD |
1,823 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
APXF2R0ARA681MF61GCAP ALUM POLY 680UF 20% 2V SMD |
3,498 |
|
数据手册 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A759MS228M0JBAE013CAP ALUM POLY 2200UF 20% 6.3V TH |
3,022 |
|
数据手册 |
A759 | Bulk | Active | Polymer | 2200 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 389.25 mA @ 120 Hz | 7.785 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
HHXC500ARA100ME61GCAP ALUM HYBRID 10UF 20% 50V SMD |
3,614 |
|
数据手册 |
HXC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 500 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
A768KE226M1JLAS054CAP ALUM POLY 22UF 20% 63V SMD |
4,008 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 54mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A768KE396M1HLAS042CAP ALUM POLY 39UF 20% 50V SMD |
4,196 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
HBV100M1JTR-0606SCAP ALUM HYBRID 10UF 20% 63V SMD |
3,959 |
|
数据手册 |
HBV | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
APSK2R5ELL331ME08SCAP ALUM POLY 330UF 20% 2.5V TH |
2,205 |
|
数据手册 |
NPCAP™-PSK | Bulk | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
HBV270M1VTR-0606SCAP ALUM HYBRID 27UF 20% 35V SMD |
2,151 |
|
数据手册 |
HBV | Active | Hybrid | 27 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
|
HBW100M1JTR-0606SCAP ALUM HYBRID 10UF 20% 63V SMD |
3,139 |
|
数据手册 |
HBW | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|

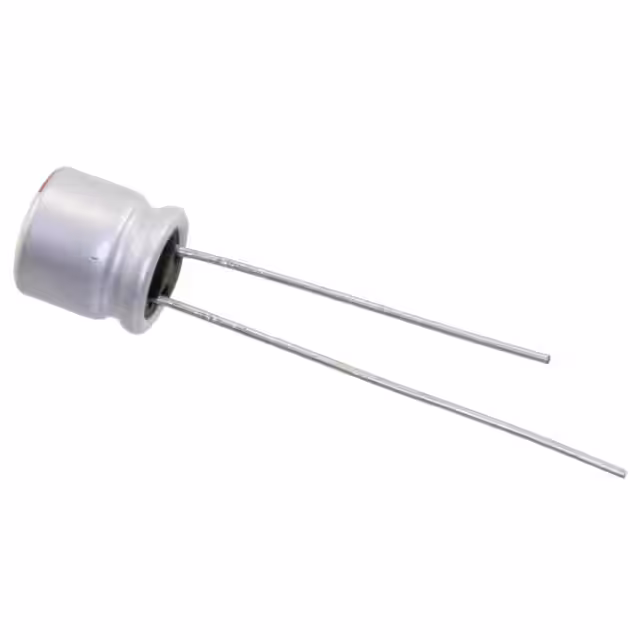

RNS1C330MDS1CAP ALUM POLY 33UF 20% 16V TH |
4,242 |
|
数据手册 |
FPCAP, RNS | Bulk | Active | Polymer | 33 µF | ±20% | 16 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
A769KE187M1ELAS025CAP ALUM POLY 180UF 20% 25V SMD |
2,792 |
|
数据手册 |
A769 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 92 mA @ 120 Hz | 1.84 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
HBW470M1ETR-0606SCAP ALUM HYBRID 47UF 20% 25V SMD |
4,237 |
|
数据手册 |
HBW | Active | Hybrid | 47 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
