铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

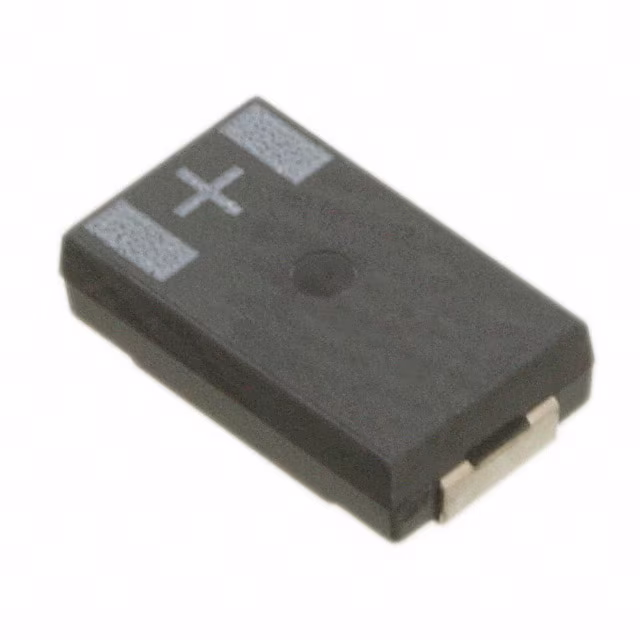

2.5SXE100MCAP ALUM POLY 100UF 20% 2.5V SMD Rubycon |
1,408 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

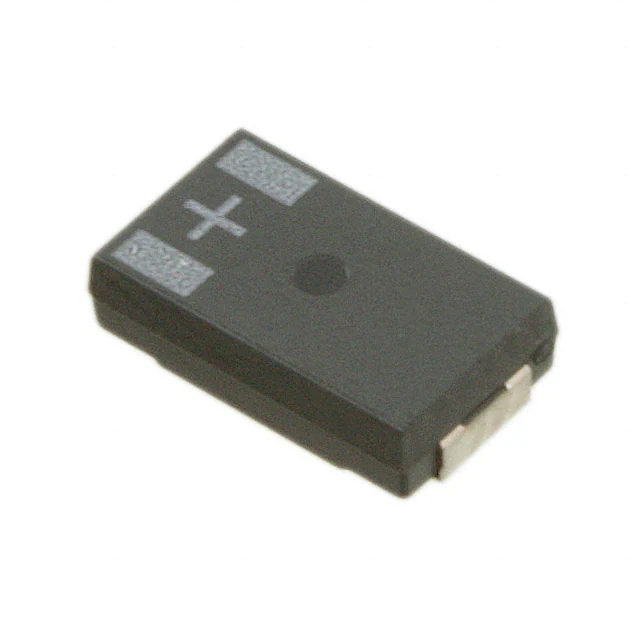

2.5SXB82MCAP ALUM POLY 82UF 20% 2.5V SMD Rubycon |
1,395 |
|
数据手册 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2.5SXE82MCAP ALUM POLY 82UF 20% 2.5V SMD Rubycon |
1,441 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
4SXE68MCAP ALUM POLY 68UF 20% 4V SMD Rubycon |
1,324 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2.5SXB120MCAP ALUM POLY 120UF 20% 2.5V SMD Rubycon |
2,508 |
|
数据手册 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

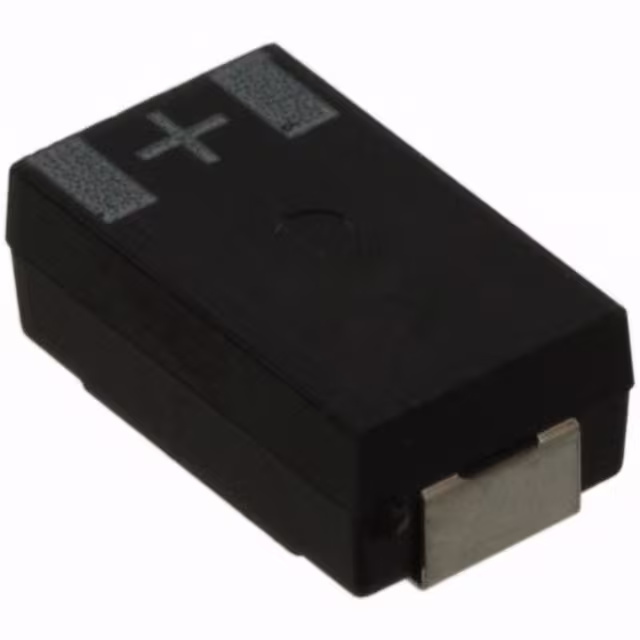

2SW220MCAP ALUM POLY 220UF 20% 2V SMD Rubycon |
4,834 |
|
数据手册 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

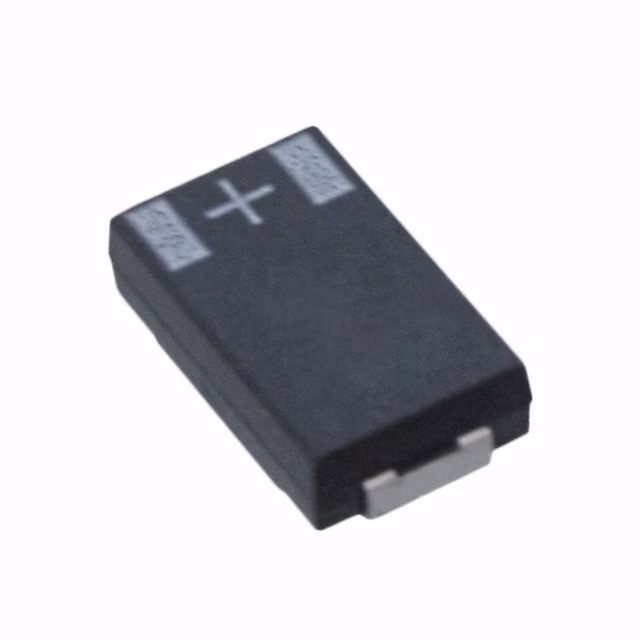

2SXB150MCAP ALUM POLY 150UF 20% 2V SMD Rubycon |
2,857 |
|
数据手册 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
4SXB100MCAP ALUM POLY 100UF 20% 4V SMD Rubycon |
2,784 |
|
数据手册 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
4SXE82MCAP ALUM POLY 82UF 20% 4V SMD Rubycon |
1,476 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2SXE150MCAP ALUM POLY 150UF 20% 2V SMD Rubycon |
2,662 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
