铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

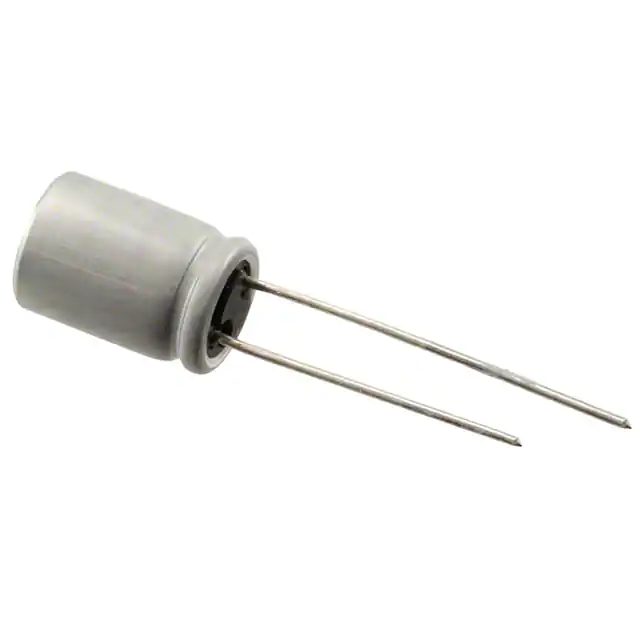

PLS0E821MDO1TDCAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
275 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RPS1H120MCN1GSCAP ALUM POLY 12UF 20% 50V SMD Nichicon |
2,983 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 50 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 1.25 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNU1E330MDN1KXCAP ALUM POLY 33UF 20% 25V TH Nichicon |
539 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCF1A271MCL4GSCAP ALUM POLY 270UF 20% 10V SMD Nichicon |
139 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0J471MCO6TDCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
3,000 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RPA0G561MCN1GSCAP ALUM POLY 560UF 20% 4V SMD Nichicon |
219 |
|
数据手册 |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCG1A151MCL1GSCAP ALUM POLY 150UF 20% 10V SMD Nichicon |
2,796 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCG0J271MCL1GSCAP ALUM POLY 270UF 20% 6.3V SMD Nichicon |
2,792 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 6.3 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCV1C151MCL2GSCAP ALUM POLY 150UF 20% 16V SMD Nichicon |
1,967 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 34mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCG0J181MCO1GSCAP ALUM POLY 180UF 20% 6.3V SMD Nichicon |
950 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
