铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1E271MCL2GSCAP ALUM POLY 270UF 20% 25V SMD Nichicon |
20,412 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 23mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCG0J272MCL1GSCAP ALUM POLY 2700UF 20% 6.3V Nichicon |
4,811 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RHS1V101MCN1GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
4,798 |
|
数据手册 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

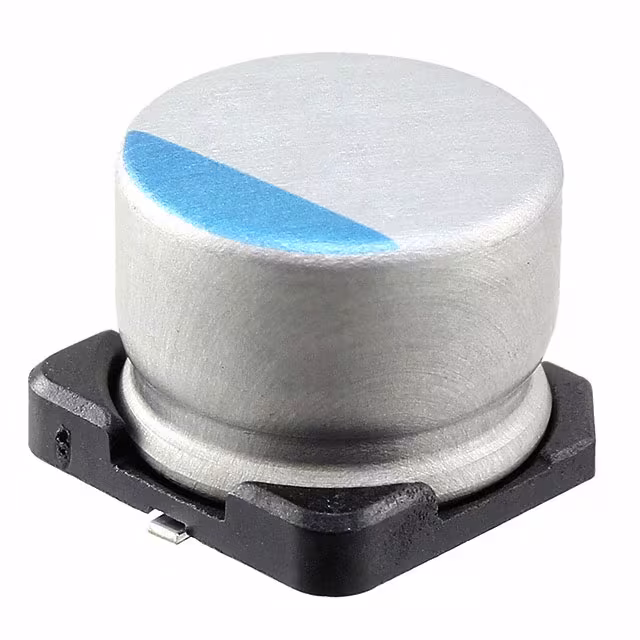

PCR1H820MCL1GSCAP ALUM POLY 82UF 20% 50V SMD Nichicon |
6,546 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 34mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

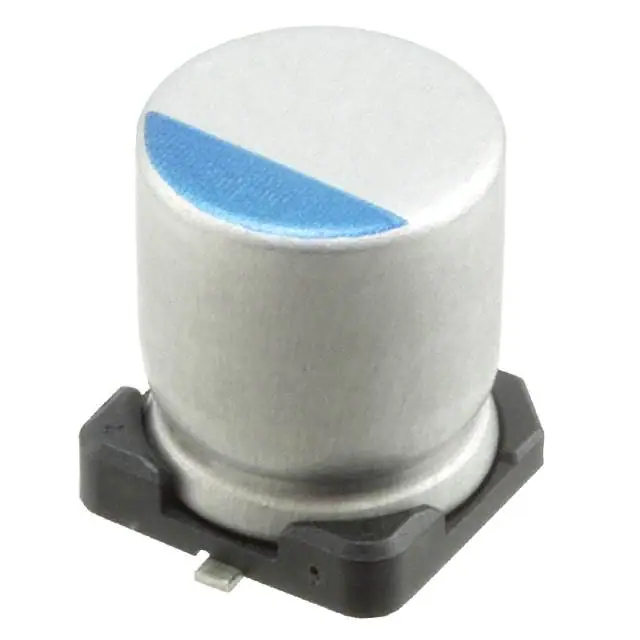

PCV1H470MCL7GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
6,279 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1C471MCL6GSCAP ALUM POLY 470UF 20% 16V SMD Nichicon |
8,701 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD Nichicon |
3,194 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1H121MCL2GSCAP ALUM POLY 120UF 20% 50V SMD Nichicon |
6,269 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1H121MCL1GSCAP ALUM POLY 120UF 20% 50V SMD Nichicon |
7,985 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1J330MCL1GSCAP ALUM POLY 33UF 20% 63V SMD Nichicon |
3,999 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
