铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL81C181MDN1KXCAP ALUM POLY 180UF 20% 16V TH Nichicon |
3,329 |
|
数据手册 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

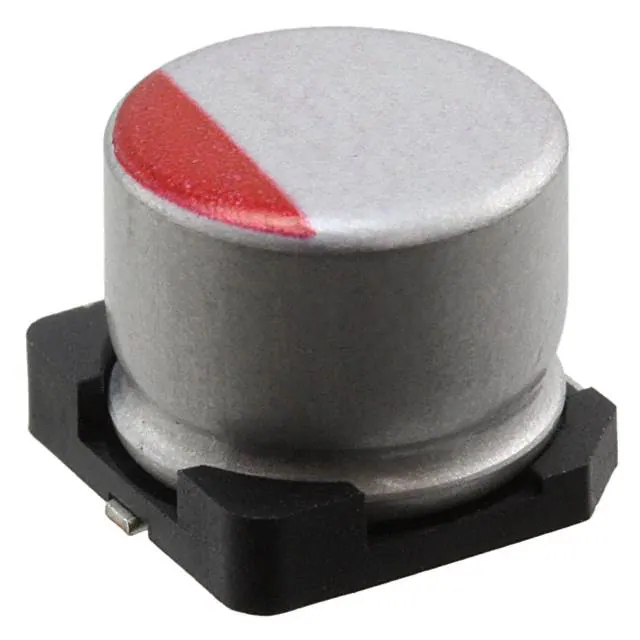

RPS1E220MCN1GSCAP ALUM POLY 22UF 20% 25V SMD Nichicon |
945 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RL80J102MDN1CAP ALUM POLY 1000UF 20% 6.3V TH Nichicon |
317 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLF1C271MDO1TDCAP ALUM POLY 270UF 20% 16V TH Nichicon |
3,954 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCF1C220MCL1GSCAP ALUM POLY 22UF 20% 16V SMD Nichicon |
2,333 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
GYB1V680MCQ1GSCAP ALUM HYBRID 68UF 20% 35V SMD Nichicon |
1,938 |
|
数据手册 |
GYB | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
GYA1V680MCQ1GSCAP ALUM HYBRID 68UF 20% 35V SMD Nichicon |
1,600 |
|
数据手册 |
GYA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RPA1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD Nichicon |
1,032 |
|
数据手册 |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RPS1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD Nichicon |
1,355 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNU0J102MDN1KXCAP ALUM POLY 1000UF 20% 6.3V TH Nichicon |
1,340 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
