铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

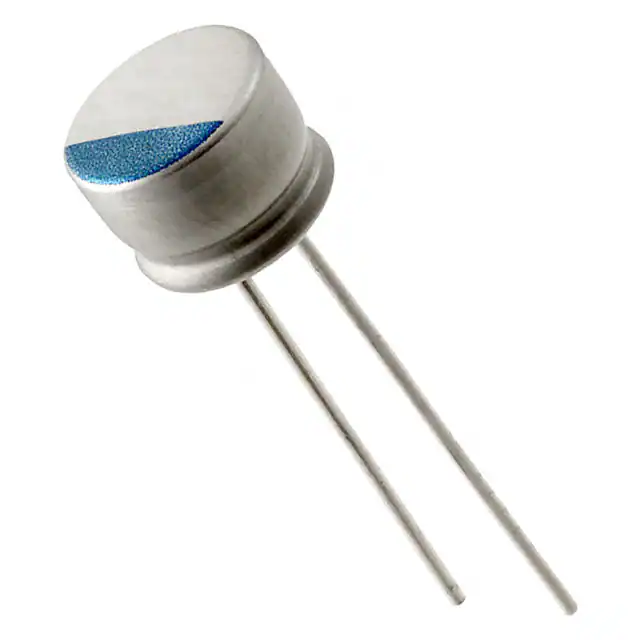

PLF1E100MCL2CAP ALUM POLY 10UF 20% 25V TH Nichicon |
4,857 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
RR71A681MDN1CAP ALUM POLY 680UF 20% 10V TH Nichicon |
2,794 |
|
数据手册 |
FPCAP, RR7 | Bulk | Active | Polymer | 680 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PLF1A471MDO1CAP ALUM POLY 470UF 20% 10V TH Nichicon |
2,080 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RFS1C330MCN1GSCAP ALUM POLY 33UF 20% 16V SMD Nichicon |
2,523 |
|
数据手册 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207 mA @ 120 Hz | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNE1C471MDN1CAP ALUM POLY 470UF 20% 16V TH Nichicon |
4,976 |
|
数据手册 |
FPCAP, RNE | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 5.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RPS1C820MCN1GSCAP ALUM POLY 82UF 20% 16V SMD Nichicon |
4,025 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1D330MCL1GSCAP ALUM POLY 33UF 20% 20V SMD Nichicon |
4,498 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 20 V | 60mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLF1D470MCL2CAP ALUM POLY 47UF 20% 20V TH Nichicon |
3,565 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
HT-Series.jpg)
|
RHT1A561MDN1CAP ALUM POLY 560UF 20% 10V TH Nichicon |
4,457 |
|
数据手册 |
FPCAP, RHT | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 13mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 525 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
RNU1E470MDN1CAP ALUM POLY 47UF 20% 25V TH Nichicon |
3,433 |
|
数据手册 |
FPCAP, RNU | Bulk | Active | Polymer | 47 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
