铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCL1C471MCL1GSCAP ALUM POLY 470UF 20% 16V SMD Nichicon |
500 |
|
数据手册 |
PCL | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.398" (10.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCH1J390MCL1GSCAP ALUM POLY 39UF 20% 63V SMD Nichicon |
500 |
|
数据手册 |
PCH | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 28mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1E221MDNASQCAP ALUM POLY 220UF 20% 25V TH Nichicon |
1,916 |
|
数据手册 |
FPCAP, RNU | Bulk | Active | Polymer | 220 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 465 mA @ 120 Hz | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PCL0E272MCL1GSCAP ALUM POLY 2.7MF 20% 2.5V SMD Nichicon |
1,000 |
|
数据手册 |
PCL | Tape & Reel (TR) | Active | Polymer | 2.7 mF | ±20% | 2.5 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCM1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD Nichicon |
4,732 |
|
数据手册 |
PCM | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.488" (12.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RR50E681MDN1KXCAP ALUM POLY 680UF 20% 2.5V TH Nichicon |
305 |
|
数据手册 |
FPCAP, RR5 | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

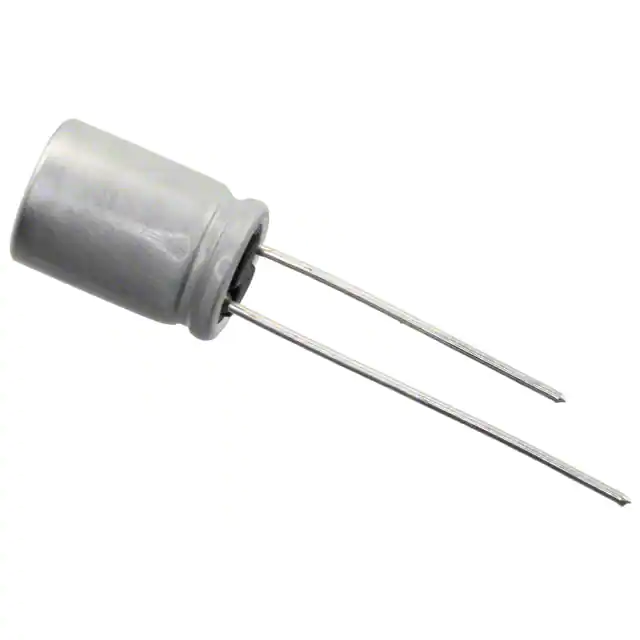

PLF0E681MDO1TDCAP ALUM POLY 680UF 20% 2.5V TH Nichicon |
3,299 |
|
数据手册 |
PLF | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | - | - | - | Through Hole |
|
RL80E122MDN1CAP ALUM POLY 1200UF 20% 2.5V TH Nichicon |
171 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 1200 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RR70J821MDN1CAP ALUM POLY 820UF 20% 6.3V TH Nichicon |
1,468 |
|
数据手册 |
FPCAP, RR7 | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
HT-Series.jpg)
|
RHT0J821MDN1CAP ALUM POLY 820UF 20% 6.3V TH Nichicon |
378 |
|
数据手册 |
FPCAP, RHT | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 545 mA @ 120 Hz | 5.45 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
