铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHH223HKL4250ME4CAP ALU HYBRID RADL 25V 2,500F KEMET |
528 |
|
数据手册 |
PHH223 | Tray | Active | Hybrid | 2500 µF | ±20% | 25 V | 4.7mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.8 A @ 100 Hz | 39 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.091" (27.70mm) | - | Through Hole |
|
|
PHH223HKP4360ME4CAP ALU HYBRID RADL 25V 3,600F KEMET |
352 |
|
数据手册 |
PHH223 | Tray | Active | Hybrid | 3600 µF | ±20% | 25 V | 4.5mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.96 A @ 100 Hz | 39.8 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.398" (35.70mm) | - | Through Hole |
|
|
PHH227JLP4320ME4CAP ALUMHYB 3200UF 20% 35V TH KEMET |
1,280 |
|
数据手册 |
PHH227 | Tray | Active | Hybrid | 3200 µF | ±20% | 35 V | 48mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 8.06 A @ 100 Hz | 40.3 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.445" (36.70mm) | - | Through Hole |
|

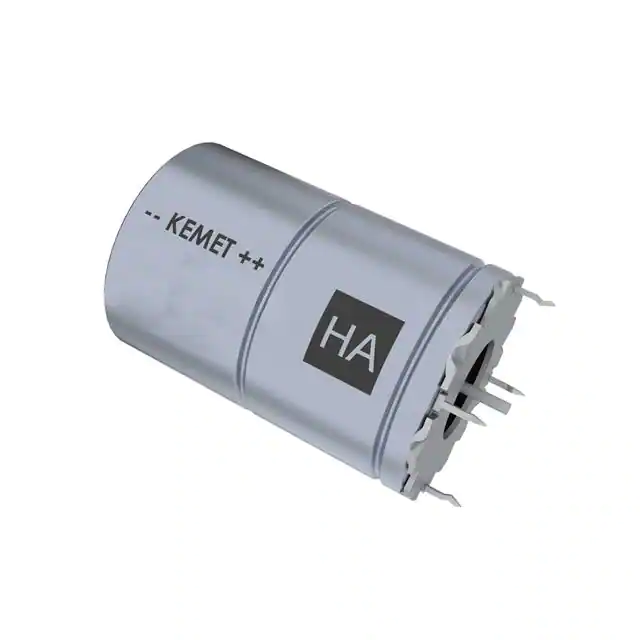

PHH227MKP3780ME4CAP ALUM HYBRID 780UF 20% 63V TH KEMET |
1,056 |
|
数据手册 |
PHH227 | Tray | Active | Hybrid | 780 µF | ±20% | 63 V | 145mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 6.98 A @ 100 Hz | 34.9 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole |
|
|
PHH227HLL4370ME4CAP ALU HYBRID RADL 25V 3,700F KEMET |
480 |
|
数据手册 |
PHH227 | Tray | Active | Hybrid | 3700 µF | ±20% | 25 V | 65mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.9 A @ 100 Hz | 39.5 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.091" (27.70mm) | - | Through Hole |
|
|
PHH223JLP4320ME4CAP ALUMHYB 3200UF 20% 35V TH KEMET |
1,280 |
|
数据手册 |
PHH223 | Tray | Active | Hybrid | 3200 µF | ±20% | 35 V | 48mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 9.2 A @ 100 Hz | 46 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.445" (36.70mm) | - | Through Hole |
|
|
PHH227HKP4360ME4CAP ALU HYBRID RADL 25V 3,600F KEMET |
352 |
|
数据手册 |
PHH227 | Tray | Active | Hybrid | 3600 µF | ±20% | 25 V | 72mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.34 A @ 100 Hz | 36.7 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.398" (35.70mm) | - | Through Hole |
|
|
PHH223MKP3780ME4CAP ALUM HYBRID 780UF 20% 63V TH KEMET |
352 |
|
数据手册 |
PHH223 | Tray | Active | Hybrid | 780 µF | ±20% | 63 V | 87mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.78 A @ 100 Hz | 38.9 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole |
|
|
PHH227HLP4520ME4CAP ALU HYBRID RADL 25V 5,200F KEMET |
320 |
|
数据手册 |
PHH227 | Tray | Active | Hybrid | 5200 µF | ±20% | 25 V | 46mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 8.06 A @ 100 Hz | 40.3 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.398" (35.70mm) | - | Through Hole |
|
|
PHA223MKL3540ME4CAP ALUM HYBRID 540UF 20% 63V TH KEMET |
513 |
|
数据手册 |
PHA223 | Tray | Active | Hybrid | 540 µF | ±20% | 63 V | 124mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.6 A @ 100 Hz | 38 A @ 100 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole |
