铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X127M010ATE010CAP ALUM POLY 120UF 20% 10V SMD KEMET |
1,388 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X227M006ATE010CAP ALUM POLY 220UF 20% 6.3V SMD KEMET |
1,139 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X157M006ATE010CAP ALUM POLY 150UF 20% 6.3V SMD KEMET |
3,581 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X477M002ATE010CAP ALUM POLY 470UF 20% 2V SMD KEMET |
2,350 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A700X227M006ATE007CAP ALUM POLY 220UF 20% 6.3V SMD KEMET |
1,094 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X477M002ATE005CAP ALUM POLY 470UF 20% 2V SMD KEMET |
500 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 5mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PHA225KLP4110QE4CAP ALUM HYB 1100UF 10-30% 40V KEMET |
1,231 |
|
数据手册 |
PHA225 | Bulk | Active | Hybrid | 1100 µF | -10%, +30% | 40 V | 80mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole |
|
|
PHA225MLL3380QE4CAP ALUM HYB 380UF 10-30% 63V TH KEMET |
733 |
|
数据手册 |
PHA225 | Bulk | Active | Hybrid | 380 µF | -10%, +30% | 63 V | 147mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 7.36 A @ 100 Hz | 36.8 A @ 100 kHz | - | - | 0.717" Dia x 1.051" L (18.20mm x 26.70mm) | - | - | Through Hole |
|
PHA226MKP3370QE4CAP ALUM HYB 370UF 10-30% 63V TH KEMET |
2,245 |
|
数据手册 |
PHA226 | Tray | Active | Hybrid | 370 µF | -10%, +30% | 63 V | 6.1mOhm | 2000 Hrs @ 150°C | -40°C ~ 150°C | AEC-Q200 | Automotive | - | 8.4 A @ 100 Hz | 42 A @ 100 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole |
|

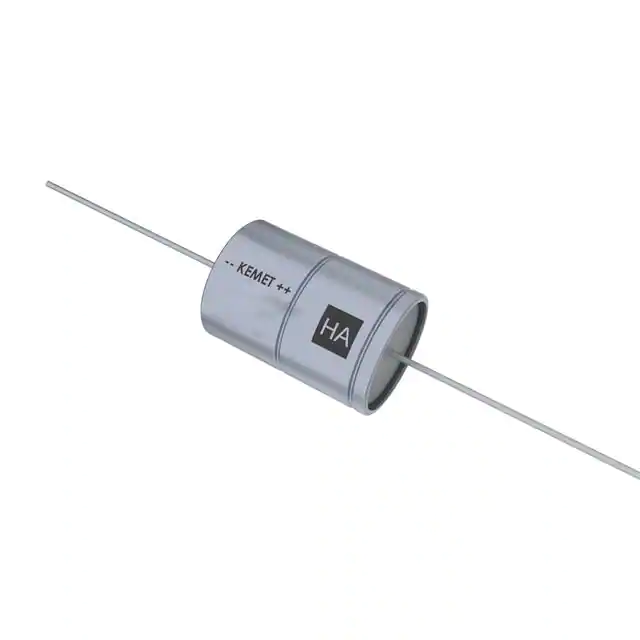

PHA227MKP3780ME4CAP ALUM HYBRID 780UF 20% 63V TH KEMET |
1,280 |
|
数据手册 |
PHA227 | Bulk | Active | Hybrid | 780 µF | ±20% | 63 V | 145mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 6.98 A @ 100 Hz | 34.9 A @ 100 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole |
