铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A758KR277M1CAAE011CAP ALUM POLY 270UF 20% 16V TH |
9,941 |
|
数据手册 |
A758 | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
875105142005CAP ALUM POLY 100UF 20% 6.3V SMD |
5,070 |
|
数据手册 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
A766EB127M1ALAE027CAP ALUM POLY 120UF 20% 10V SMD |
5,977 |
|
数据手册 |
A766 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 116 mA @ 120 Hz | 2.32 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

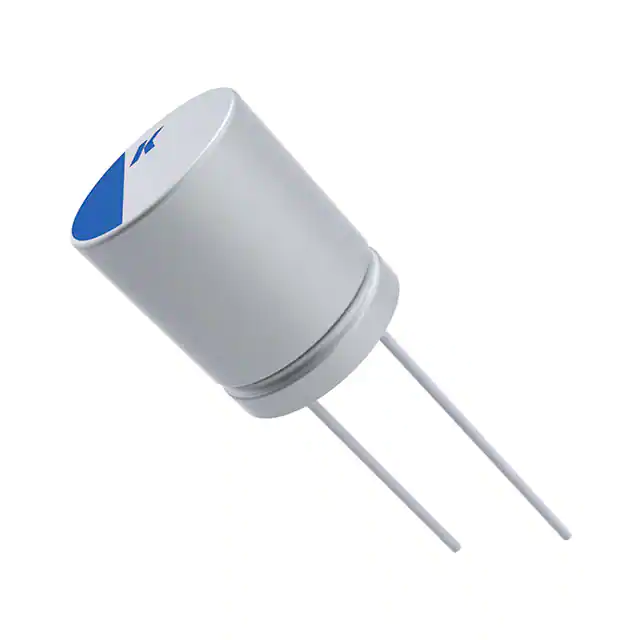

A750EK827M0EAAE007CAP ALUM POLY 820UF 20% 2.5V TH |
6,264 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
875105240003CAP ALUM POLY 22UF 20% 10V SMD |
1,714 |
|
数据手册 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
A750BG337M0JAAE020CAP ALUM POLY 330UF 20% 6.3V TH |
10,155 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
A750EK477M0JAAE018CAP ALUM POLY 470UF 20% 6.3V TH |
9,346 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
EA750EK227M1AAACAP ALUM POLY 220UF 20% 10V TH |
7,651 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
A758BG106M1EAAE070CAP ALUM POLY 10UF 20% 25V TH |
4,092 |
|
数据手册 |
A758 | Bulk | Active | Polymer | 10 µF | ±20% | 25 V | 70mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|

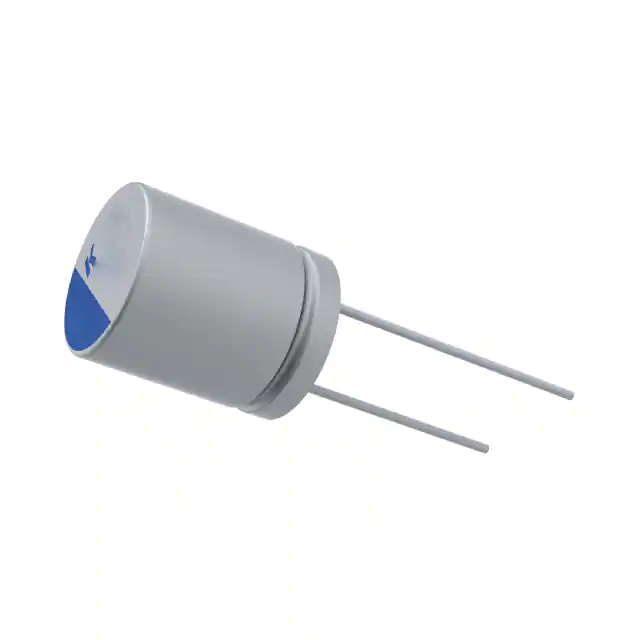

A759EK227M1AAAE018CAP ALUM POLY 220UF 20% 10V TH |
3,941 |
|
数据手册 |
A759 | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 95.15 mA @ 120 Hz | 1.903 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RPA0608101M016BCAP ALUM POLY 100UF 20% 16V TH |
1,372 |
|
数据手册 |
RPA | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole | |
|
A750EK687M0JAAE008CAP ALUM POLY 680UF 20% 6.3V TH |
8,698 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
A759EA106M1JAAE060CAP ALUM POLY 10UF 20% 63V TH |
2,262 |
|
数据手册 |
A759 | Bulk | Active | Polymer | 10 µF | ±20% | 63 V | 60mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 82.9 mA @ 120 Hz | 1.658 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
|
875105144010CAP ALUM POLY 330UF 20% 6.3V SMD |
26,160 |
|
数据手册 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
A768EB476M1ELAE042CAP ALUM POLY 47UF 20% 25V SMD |
15,450 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A768EB336M1GLAE045CAP ALUM POLY 33UF 20% 40V SMD |
9,369 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 40 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 57.5 mA @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A768EB476M1VLAE042CAP ALUM POLY 47UF 20% 35V SMD |
12,093 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EA750EK107M1CAACAP ALUM POLY 100UF 20% 16V TH |
10,014 |
|
数据手册 |
A750 | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
A768EB476M1ELAS042CAP ALUM POLY 47UF 20% 25V SMD |
7,706 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A759EK337M1AAAE018CAP ALUM POLY 330UF 20% 10V TH |
7,618 |
|
数据手册 |
A759 | Bulk | Active | Polymer | 330 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 134.95 mA @ 120 Hz | 2.699 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
