交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMI6-5-V-P12AC/DC WALL MOUNT ADAPTER 5V 6W |
1,877 |
|
数据手册 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 0.7mm I.D. x 2.35mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL | |
|
ME10A0502B01AC/DC WALL MOUNT ADAPTER 5V 10W |
1,628 |
|
数据手册 |
ME10 (10W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE, cURus, DEMKO | |
|
ME10A0503Q01AC/DC DESKTOP ADAPTER 5V 10W |
1,507 |
|
数据手册 |
ME10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C18 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO | |
|
|
ME10A0703C01AC/DC WALL MNT ADAPTER 7.5V 10W |
1,652 |
|
数据手册 |
ME10 (10W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 7.5V | 1.3A | 10 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE, cURus, DEMKO | |
|
|
ME10A1202F01AC/DC DESKTOP ADAPTER 12V 12W |
2,740 |
|
数据手册 |
ME10 (10W) | Bulk | Active | International | Desktop (Class I) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO | |
|
|
ME10A1202N01AC/DC DESKTOP ADAPTER 12V 12W |
3,743 |
|
数据手册 |
ME10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO | |
|
|
ME20A1203C01AC/DC WALL MOUNT ADAPTER 12V 18W |
1,495 |
|
数据手册 |
ME20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE | |
|
|
ME20A1503C01AC/DC WALL MOUNT ADAPTER 15V 18W |
3,246 |
|
数据手册 |
ME20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 15V | 1.2A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE | |
|
|
ME30A0502N01AC/DC DESKTOP ADAPTER 5V 20W |
2,748 |
|
数据手册 |
ME30 (30W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|
|
ME30A0502Q01AC/DC DESKTOP ADAPTER 5V 20W |
3,001 |
|
数据手册 |
ME30 (30W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C18 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|
|
ME30A1202F01AC/DC DESKTOP ADAPTER 12V 30W |
1,760 |
|
数据手册 |
ME30 (30W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|
|
ME30A1202N01AC/DC DESKTOP ADAPTER 12V 30W |
2,798 |
|
数据手册 |
ME30 (30W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|
|
ME30A1502B01AC/DC WALL MOUNT ADAPTER 15V 30W |
3,710 |
|
数据手册 |
ME30 (30W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 15V | 2A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P | - | 3.76" L x 2.13" W x 1.32" H (95.5mm x 54.0mm x 33.6mm) | CE | |
|
|
ME30A2402F01AC/DC DESKTOP ADAPTER 24V 32W |
1,157 |
|
数据手册 |
ME30 (30W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.33A | 32 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|

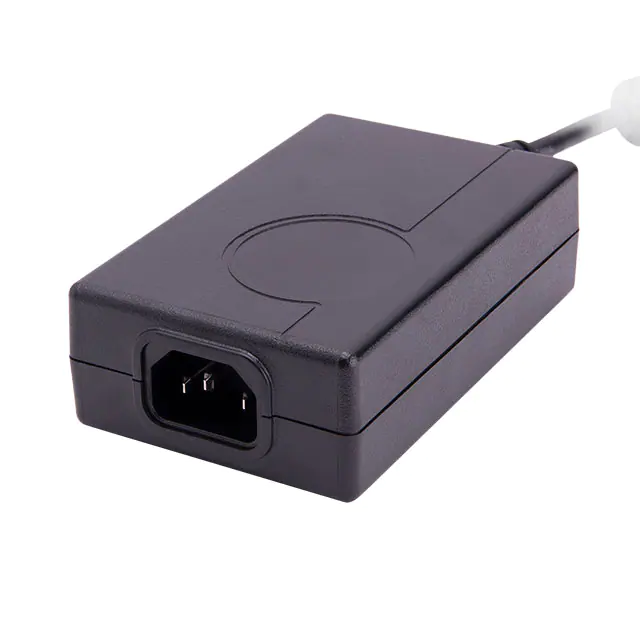

ME60A1202F01AC/DC DESKTOP ADAPTER 12V 60W |
1,655 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C14 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CE | |
|
|
ME60A1202N01AC/DC DESKTOP ADAPTER 12V 60W |
3,807 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C8 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CE | |
|
|
ME60A1202Q01AC/DC DESKTOP ADAPTER 12V 60W |
1,069 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C18 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CE | |
|
|
ME60A2403Q01AC/DC DESKTOP ADAPTER 24V 60W |
4,923 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 60 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C18 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CE | |
|
ME90A1502Q01AC/DC DESKTOP ADAPTER 15V 90W |
4,408 |
|
数据手册 |
ME90 (90W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C18 | - | 5.91" L x 2.58" W x 1.34" H (150.0mm x 65.5mm x 34.0mm) | CE | |
|
|
ME90A2402F01AC/DC DESKTOP ADAPTER 24V 90W |
2,271 |
|
数据手册 |
ME90 (90W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.91" L x 2.58" W x 1.34" H (150.0mm x 65.5mm x 34.0mm) | CE |
