交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETSA240170UDC-P5RP-SZAC/DC DESKTOP ADAPTER 24V 40W |
3,345 |
|
数据手册 |
ETSA-UD (40W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 24V | 1.7A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.97" L x 1.88" W x 1.11" H (75.5mm x 47.8mm x 28.2mm) | cULus, GS | |
|

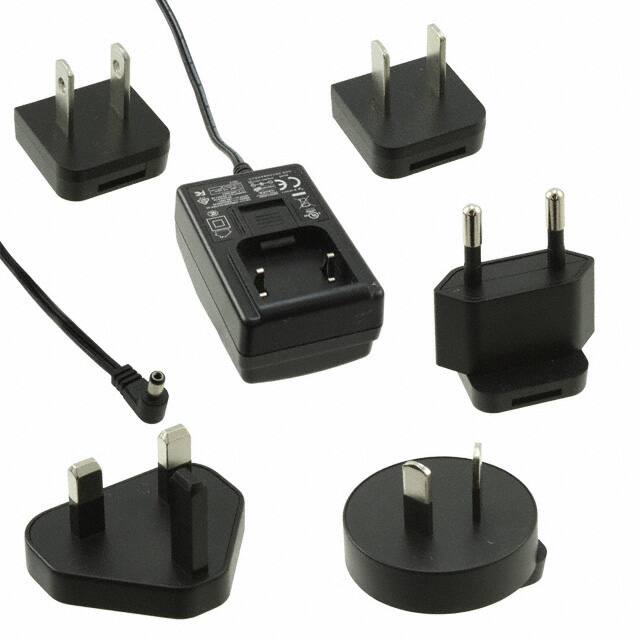

EMSA050120-P5RP-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
2,566 |
|
数据手册 |
EMSA (6W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA090067-P5RP-SZAC/DC WALL MOUNT ADAPTER 9V 6W |
1,797 |
|
数据手册 |
EMSA (6W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 670mA | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA050300-P5RP-SZAC/DC WALL MOUNT ADAPTER 5V 15W |
4,287 |
|
数据手册 |
EMSA (18W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|

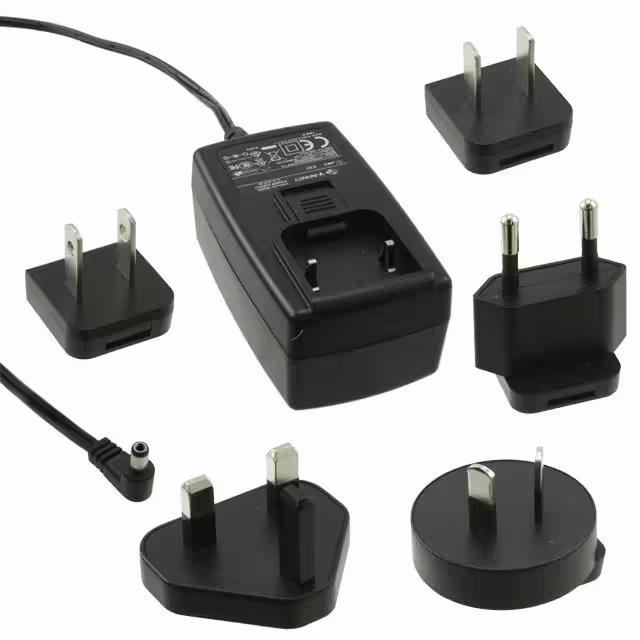

EMSA090200-P5RP-SZAC/DC WALL MOUNT ADAPTER 9V 18W |
3,046 |
|
数据手册 |
EMSA (18W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 2A | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA120150-P5RP-SZAC/DC WALL MOUNT ADAPTER 12V 18W |
1,367 |
|
数据手册 |
EMSA (18W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA240075-P5RP-SZAC/DC WALL MOUNT ADAPTER 24V 18W |
4,700 |
|
数据手册 |
EMSA (18W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 750mA | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA120250-P5RP-SZAC/DC WALL MOUNT ADAPTER 12V 30W |
2,400 |
|
数据手册 |
EMSA (30W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA240125-P5RP-SZAC/DC WALL MOUNT ADAPTER 24V 30W |
4,898 |
|
数据手册 |
EMSA (30W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|
EMSA120300-P5RP-SZAC/DC WALL MOUNT ADAPTER 12V 36W |
4,291 |
|
数据手册 |
EMSA (40W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|

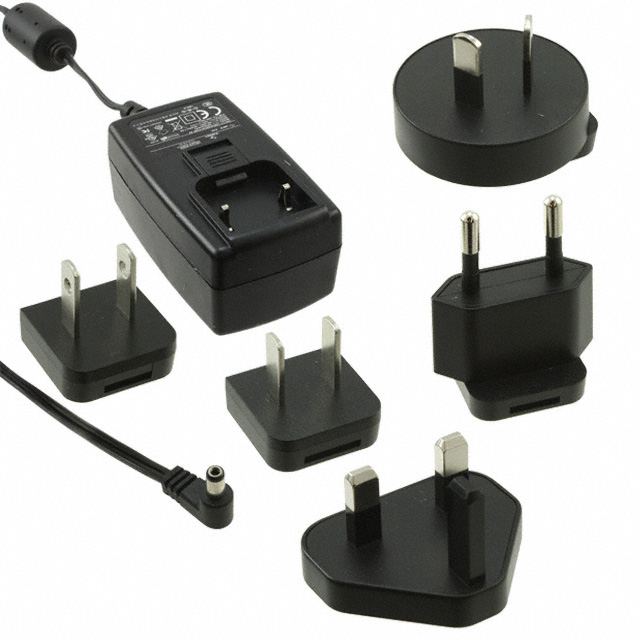

EMSA240167-P5RP-SZAC/DC WALL MOUNT ADAPTER 24V 40W |
1,764 |
|
数据手册 |
EMSA (40W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE | |
|

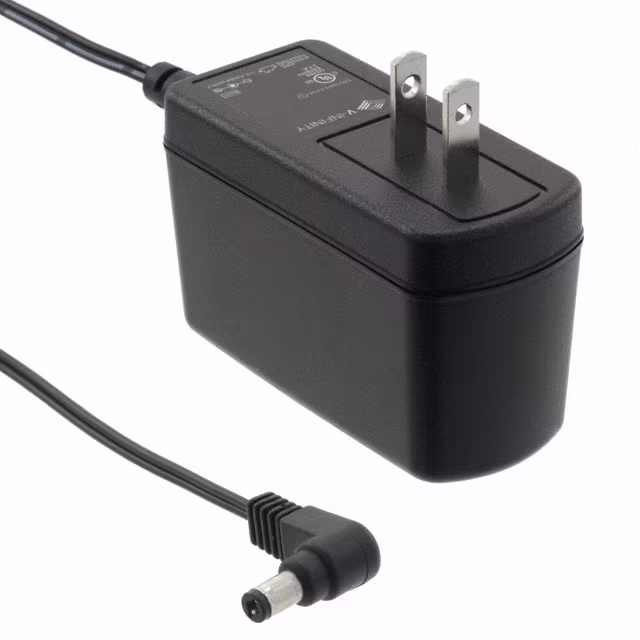

EPSA050250U-P5RP-EJAC/DC WALL MOUNT ADAPTER 5V 13W |
2,946 |
|
数据手册 |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.5A | 13 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.97" W x 1.85" H (75.0mm x 50.0mm x 47.0mm) | cULus | |
|
|
EPSA060200U-P5RP-EJAC/DC WALL MOUNT ADAPTER 6V 12W |
4,437 |
|
数据手册 |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 2.17" H (75.0mm x 35.0mm x 55.0mm) | cULus | |
|
|
EPSA090130U-P5RP-EJAC/DC WALL MOUNT ADAPTER 9V 12W |
4,348 |
|
数据手册 |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.3A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 1.85" H (75.0mm x 35.0mm x 47.0mm) | cULus | |
|
EPSA120200U-P5RP-SZAC/DC WALL MOUNT ADAPTER 12V 24W |
3,431 |
|
数据手册 |
EPSA (24W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 3.15" L x 1.38" W x 2.11" H (80.0mm x 35.0mm x 53.6mm) | cULus | |
|
ETSA120500UDC-P5RP-SZAC/DC DESKTOP ADAPTER 12V 60W |
3,110 |
|
数据手册 |
ETSA-UD (60W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 12V | 5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.57" L x 1.97" W x 1.22" H (116.0mm x 50.0mm x 31.0mm) | CE, cULus, GS | |
|
ETSA240270UDC-P5RP-SZAC/DC DESKTOP ADAPTER 24V 60W |
4,258 |
|
数据手册 |
ETSA-UD (60W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 24V | 2.7A | 60 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.57" L x 1.97" W x 1.22" H (116.0mm x 50.0mm x 31.0mm) | CE, cULus, GS | |
|
|
ETSA190210UC-P5P-SZAC/DC DESKTOP ADAPTER 19V 40W |
2,960 |
|
数据手册 |
ETSA-U (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 2.1A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.97" L x 1.88" W x 1.11" H (75.5mm x 47.8mm x 28.2mm) | cULus, GS | |
|
ETSA190210U-P5P-SZAC/DC DESKTOP ADAPTER 19V 40W |
1,025 |
|
数据手册 |
ETSA-U (40W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 2.1A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.97" L x 1.88" W x 1.11" H (75.5mm x 47.8mm x 28.2mm) | cULus, GS | |
|
ETSA060300UC-P5P-SZAC/DC DESKTOP ADAPTER 6V 18W |
3,247 |
|
数据手册 |
ETSA-U (18W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 6V | 3A | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CE, cULus, TUVgs |
