交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM12-12-KB-P6AC/DC WALL MOUNT ADAPTER 12V 12W |
151 |
|
数据手册 |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | |
.jpg)
|

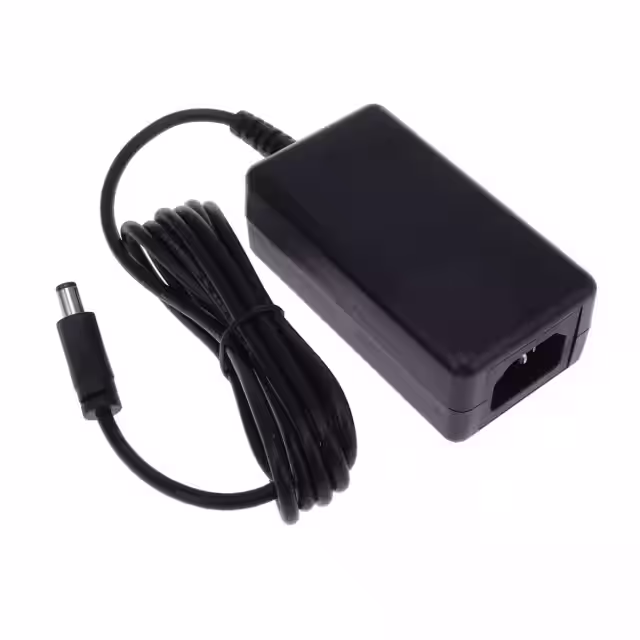

TR9CA3000LCP-IM(R6B)AC/DC DESKTOP ADAPTER 5V 15W |
948 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.0mm | 59" (1.50m) | IEC 320-C14 | - | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|

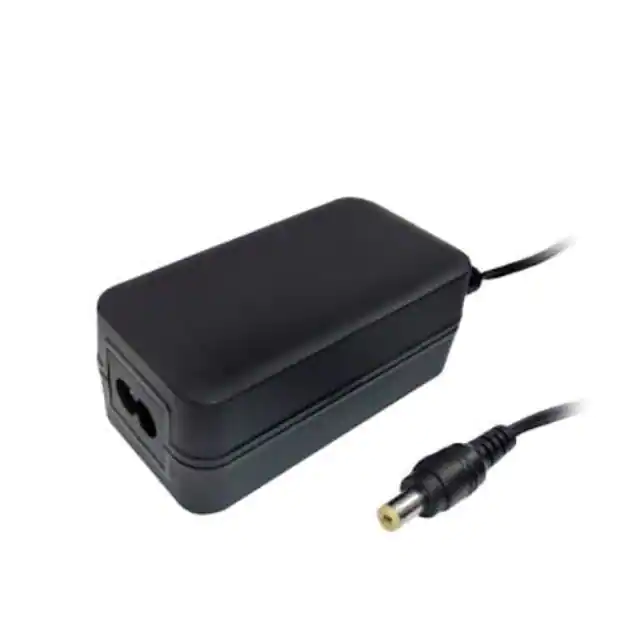

15DYS850-150336WAC/DC DESKTOP ADAPTER 15V 50W |
144 |
|
数据手册 |
15DYS850-xyW (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.36A | 50 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, cULus, RCM, TUV | |
.jpg)
|

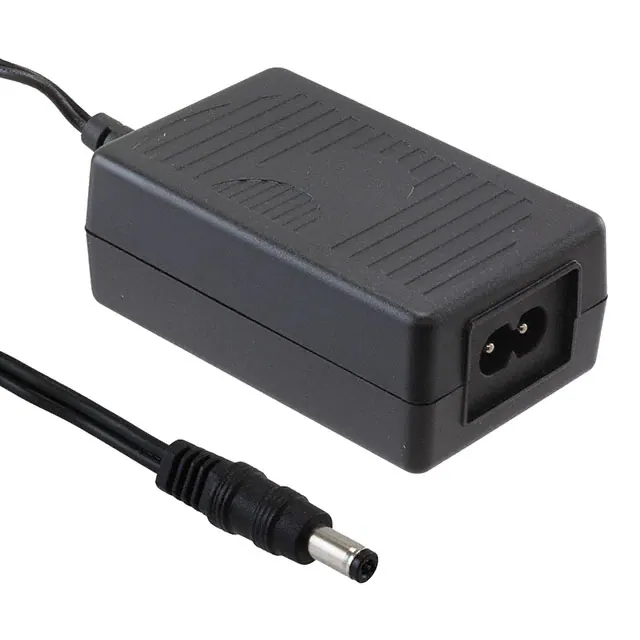

TR9KE2000LCP-N(R6B)AC/DC DESKTOP ADAPTER 12V 24W |
443 |
|
数据手册 |
GT-46240-24VV-x.x-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.53m) | IEC 320-C8 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CB, CE, cULus, EAC, LPS, PSE, RCM, S-Mark, SIQ, UKRSepro, VCCI | |
.jpg)
|

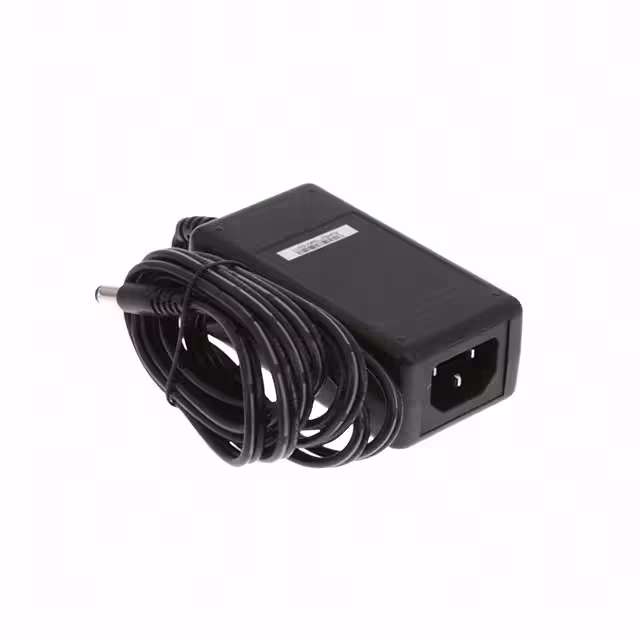

TR9CD2000LCPIM(R6B)AC/DC DESKTOP ADAPTER 9V 18W |
103 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
QADA-50-24-1402AC/DC DESKTOP ADAPTER 24V 50W |
182 |
|
数据手册 |
QADA-50 (50W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 2.1A | 50 W | 210mW (Max) | Positive Center | - | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | BSMI, CB, CCC, CE, cULus, FCC, GS, PSE | |
|
SWI12-5.9-N-P5AC/DC WALL MNT ADAPTER 5.9V 12W |
783 |
|
数据手册 |
SWI12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5.9V | 2A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL | |
|
|
SWI12-24-N-P6RAC/DC WALL MOUNT ADAPTER 24V 12W |
421 |
|
数据手册 |
SWI12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL | |
|
|
SWI12-9-N-P6AC/DC WALL MOUNT ADAPTER 9V 11W |
220 |
|
数据手册 |
SWI12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.2A | 11 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL | |
|
PSAD65-12-B1AC/DC DESKTOP ADAPTER 12V 60W |
512 |
|
数据手册 |
PSAD65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47" (1.20m) | IEC 320-C14 | - | 4.72" L x 1.98" W x 1.32" H (119.9mm x 50.3mm x 33.5mm) | CB, CCC, CE, cULus, FCC, PSE | |
|
|
PSAD65-18-B1AC/DC DESKTOP ADAPTER 48V 65W |
140 |
|
数据手册 |
PSAD65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.35A | 65 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47" (1.20m) | IEC 320-C14 | - | 4.72" L x 1.98" W x 1.32" H (119.9mm x 50.3mm x 33.5mm) | CB, CCC, CE, cULus, FCC, PSE | |
|

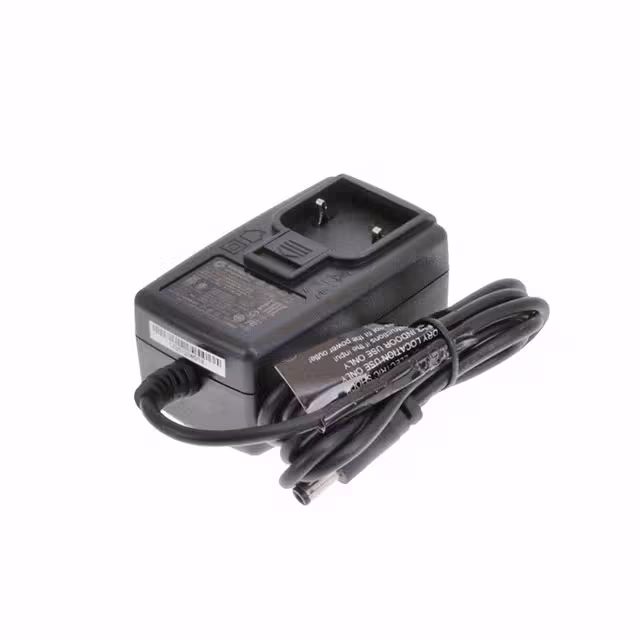

WR9QA3000LCP-IMR6BAC/DC WALL MOUNT ADAPTER 5V 15W |
109 |
|
数据手册 |
- | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
SDM24-24-UD-P6AC/DC DESKTOP ADAPTER 24V 24W |
192 |
|
数据手册 |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | |
.jpg)
|
TR9CA3600CCP-IMR6BAC/DC DESKTOP ADAPTER 5V 18W |
199 |
|
数据手册 |
GTM96180-18VV-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3.6A | 18 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
ACM12US05AC/DC WALL MOUNT ADAPTER 5V 10W |
343 |
|
数据手册 |
ACM12 (12W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -5°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) | CB, CE, TUV, UL | |
|

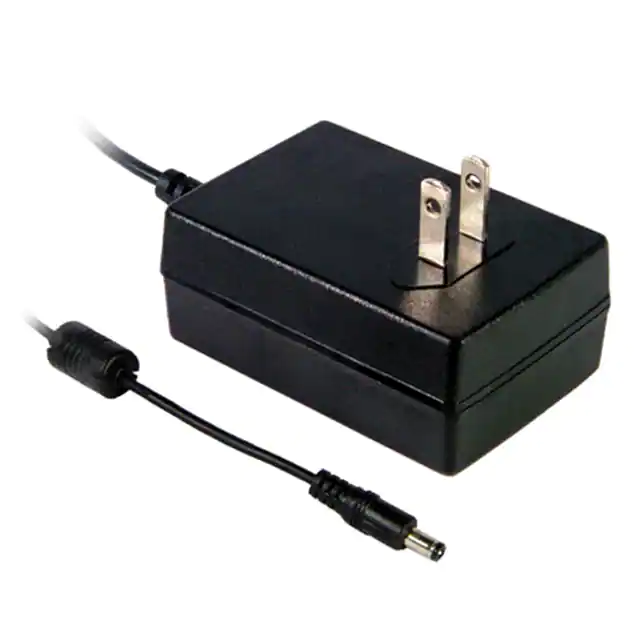

GST36U48-P1JAC/DC WALL MOUNT ADAPTER 48V 36W |
123 |
|
数据手册 |
GST36U (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC | |
|

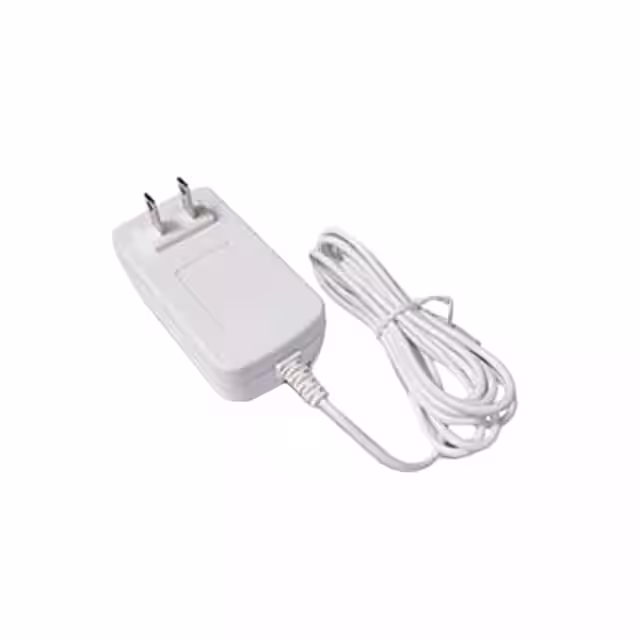

PMA18A-120PHWAC/DC WALL MOUNT ADAPTER 12V 18W |
311 |
|
数据手册 |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.5A | 18 W | - | Positive Center | Medical | Level VI | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.23" L x 1.70" W x 1.18" H (82.0mm x 43.2mm x 30.0mm) | cULus | |
|
SWI15-9-N-P5AC/DC WALL MOUNT ADAPTER 9V 13W |
385 |
|
数据手册 |
SWI15-N (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.4A | 13 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | EN, FCC, UL | |
|
|
PEAMW30I-12-B2AC/DC WALL MOUNT ADAPTER 12V 30W |
174 |
|
数据手册 |
PEAMW30I (30W) | Bag | Active | International | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB, CCC, CE, cURus, FCC, TUV | |
|
SLE24S2403B01AC/DC WALL MOUNT ADAPTER 24V 24W |
4,021 |
|
数据手册 |
SLE24 (24W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.46" L x 1.18" W x 2.24" H (88.0mm x 30.0mm x 57.0mm) | CB, CCC, CE, cULus, cURus, GS, PSE, RCM, TUV |
