交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI120B-12-UW-P51AC-DC, 12 VDC, 9 A, SW, C14 DESK |
3,541 |
|
数据手册 |
SDI120B-U (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | IEC 320-C14 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-12-TW-P51AC-DC, 12 VDC, 9 A, SW, C6 DESK- |
2,532 |
|
数据手册 |
SDI120B-T (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | IEC 320-C6 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
CENB1060A4841N01AC/DC DESKTOP ADAPTER 48V 62W |
1,039 |
|
数据手册 |
CENB1060 (60W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 1.3A | 62 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 4.25" L x 2.67" W x 1.28" H (108.0mm x 67.7mm x 32.5mm) | CE, cULus | |
|
|
CENB1060A4849Q01AC/DC DESKTOP ADAPTER 48V 62W |
4,597 |
|
数据手册 |
CENB1060 (60W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 1.3A | 62 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 57" (1.45m) | IEC 320-C18 | - | 4.25" L x 2.67" W x 1.28" H (108.0mm x 67.7mm x 32.5mm) | CE, cULus | |
|
|
SDI120B-24-UC-P51AC-DC, 24 VDC, 5 A, SW, C14 DESK |
2,868 |
|
数据手册 |
SDI120B-U (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-24-TC-P51AC-DC, 24 VDC, 5 A, SW, C6 DESK- |
3,550 |
|
数据手册 |
SDI120B-T (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-15-UC-P51AC-DC, 15 VDC, 8 A, SW, C14 DESK |
4,148 |
|
数据手册 |
SDI120B-U (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 8A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-16-UC-P51AC-DC, 16 VDC, 7.50 A, SW, C14 D |
1,091 |
|
数据手册 |
SDI120B-U (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 7.5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-19-UC-P51AC-DC, 19 VDC, 6.30 A, SW, C14 D |
4,011 |
|
数据手册 |
SDI120B-U (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-19-TC-P51AC-DC, 19 VDC, 6.30 A, SW, C6 DE |
3,783 |
|
数据手册 |
SDI120B-T (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-15-TC-P51AC-DC, 15 VDC, 8 A, SW, C6 DESK- |
1,881 |
|
数据手册 |
SDI120B-T (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 8A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI120B-16-TC-P51AC-DC, 16 VDC, 7.50 A, SW, C6 DE |
1,057 |
|
数据手册 |
SDI120B-T (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 7.5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | |
|

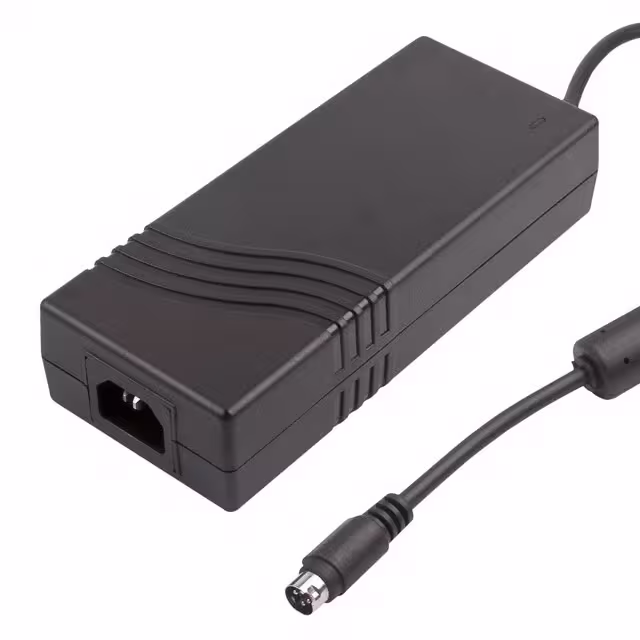

VEH150PS12AC/DC DESKTOP ADAPTER 12V 150W |
2,643 |
|
数据手册 |
VEH150 (150W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 12.5A | 150 W | 350mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.85" L x 2.91" W x 1.65" H (174.0mm x 74.0mm x 42.0mm) | - | |
|
|
VEH150PS19AC/DC DESKTOP ADAPTER 19V 150W |
1,043 |
|
数据手册 |
VEH150 (150W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 7.9A | 150 W | 350mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.85" L x 2.91" W x 1.65" H (174.0mm x 74.0mm x 42.0mm) | - | |
|
|
VEH150PS24AC/DC DESKTOP ADAPTER 24V 150W |
4,287 |
|
数据手册 |
VEH150 (150W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 6.25A | 150 W | 350mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.85" L x 2.91" W x 1.65" H (174.0mm x 74.0mm x 42.0mm) | - | |
|
SDI120-48-UC-P51AC/DC DESKTOP ADAPTER 48V 120W |
1,307 |
|
数据手册 |
SDI120-U (120W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 210mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
|
ALM85US15-AAC-DC DESKTOP PSU 85W |
4,676 |
|
数据手册 |
ALM85 (85W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 5.33A | 80 W | 150mW | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 5.48" L x 2.44" W x 1.46" H (139.2mm x 62.0mm x 37.1mm) | CB, CE, CSA, TUV, UKCA, UL | |
|
|
44ATM120T-P180AC/DC DESKTOP ADAPTER 18V |
2,460 |
|
数据手册 |
44ATM120T-P (120W) | Box | Obsolete | North America | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 6.67A | - | 210mW (Max) | - | Medical | Level VI | - | Power DIN, 4 Pin | - | IEC 320-C14 | - | 6.61" L x 1.54" W x 2.60" H (168.0mm x 39.0mm x 66.0mm) | CB, CE, cULus, FCC, PSE, TUV, UKCA | |
|
|
SDI120-16-U2-P51AC/DC DESKTOP ADAPTER 16V 120W |
1,270 |
|
数据手册 |
SDI120-U (120W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 16V | 7.5A | 120 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
|
SDI120-19-U2-P51AC/DC DESKTOP ADAPTER 19V 120W |
1,974 |
|
数据手册 |
SDI120-U (120W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL |
