交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

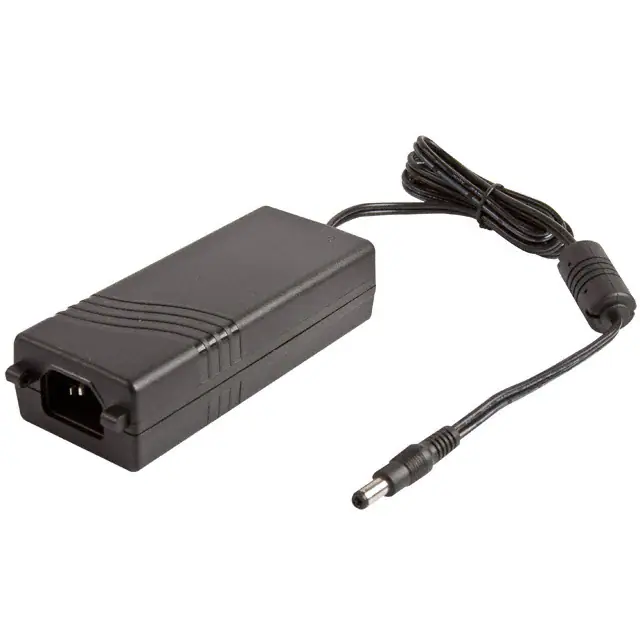

AFM45US24AC/DC DESKTOP ADAPTER 24V 48W |
4,400 |
|
数据手册 |
AFM45 (45W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 2A | 48 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C14 | - | 4.76" L x 1.97" W x 1.21" H (121.0mm x 50.0mm x 30.8mm) | CB, TUV, UL | |
|
AFM45US12C2AC/DC DESKTOP ADAPTER 12V 48W |
3,506 |
|
数据手册 |
AFM45 (45W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 4A | 48 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C8, Polarized | - | 4.76" L x 1.97" W x 1.21" H (121.0mm x 50.0mm x 30.8mm) | CB, TUV, UL | |
|
L6R90D-150-C6AC/DC DESKTOP ADAPTER 15V 90W |
3,328 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
|
L6R90D-160-C6AC/DC DESKTOP ADAPTER 16V 90W |
1,124 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
|
L6R90D-150-C14AC/DC DESKTOP ADAPTER 15V 90W |
2,635 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
|
L6R90D-160-C14AC/DC DESKTOP ADAPTER 16V 90W |
4,804 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
DTA27 -0512FWX-W-3AC/DC DESKTOP ADAPTER 5V/12V 43W |
3,117 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V | 5A, 1.5A | 43 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C8 | - | 4.17" L x 2.36" W x 1.18" H (106.0mm x 60.0mm x 30.0mm) | CE, CSA, FCC, TUV, UL | |
|
SDI90B-12-T-P51AC-DC, 12 VDC, 7.50A, SW, C6 DES |
4,172 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
KTPS90-1506AC/DC DESKTOP ADAPTER 15V 90W |
2,512 |
|
数据手册 |
KTPS90 (90W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 6A | 90 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CB, CE, cUL, GS, PSE, UL | |
|
|
KTPS90-1805AC/DC DESKTOP ADAPTER 18V 90W |
3,041 |
|
数据手册 |
KTPS90 (90W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 5A | 90 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CB, CE, cUL, GS, PSE, UL | |
|
|
KTPS90-1947AC/DC DESKTOP ADAPTER 19V 90W |
2,673 |
|
数据手册 |
KTPS90 (90W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 19V | 4.74A | 90 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CB, CE, cUL, GS, PSE, UL | |
|
|
TR9CR3214LCP-IM(R6B)AC/DC DESKTOP ADAPTER 28V 90W |
3,240 |
|
数据手册 |
GTM96900P9028-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 3.21A | 90 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.50m) | IEC 320-C14 | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
SDI90-24-U-P10AC/DC DESKTOP ADAPTER 24V 90W |
3,180 |
|
数据手册 |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI90-12-U-P6RAC/DC DESKTOP ADAPTER 12V 84W |
1,183 |
|
数据手册 |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7A | 84 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI90-15-U-P5RAC/DC DESKTOP ADAPTER 15V 90W |
3,373 |
|
数据手册 |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI90-15-U-P6AC/DC DESKTOP ADAPTER 15V 90W |
4,319 |
|
数据手册 |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI90-15-U-P6RAC/DC DESKTOP ADAPTER 15V 90W |
2,475 |
|
数据手册 |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
TRH100A240-11E12 VIAC/DC DESKTOP ADAPTER 24V 100W |
2,420 |
|
数据手册 |
TRH100A (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 4.17A | 100 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 48" (1.22m) | IEC 320-C14 | - | 5.59" L x 2.28" W x 1.46" H (142.0mm x 58.0mm x 37.0mm) | CE, cULus, FCC, NEMKO, PSE, TUV | |
|
|
TRH100A480-11E12 VIAC/DC DESKTOP ADAPTER 48V 101W |
3,673 |
|
数据手册 |
TRH100A (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.1A | 101 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 48" (1.22m) | IEC 320-C14 | - | 5.59" L x 2.28" W x 1.46" H (142.0mm x 58.0mm x 37.0mm) | CE, cULus, FCC, NEMKO, PSE, TUV | |
|
|
SVA20N2NEUA20V DC POWER ADAPTER |
3,922 |
|
数据手册 |
- | Box | Active | International | Wall Mount | Multi-Blade (Included) | 110 ~ 240 VAC | 20V | 2A | 40 W | - | Positive Center | ITE (Commercial) | Level VI | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Included) | - | 3.00" L x 1.60" W x 1.70" H (76.2mm x 40.6mm x 43.2mm) | CE, cULus, GS, PSE, TUV, UL |
