交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R90D-180-C14AC/DC DESKTOP ADAPTER 18V 90W |
3,931 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
|
L6R90D-190-C14AC/DC DESKTOP ADAPTER 19V 90W |
2,870 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|
|
L6R90D-200-C14AC/DC DESKTOP ADAPTER 20V 90W |
1,559 |
|
数据手册 |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 20V | 4.5A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | |
|

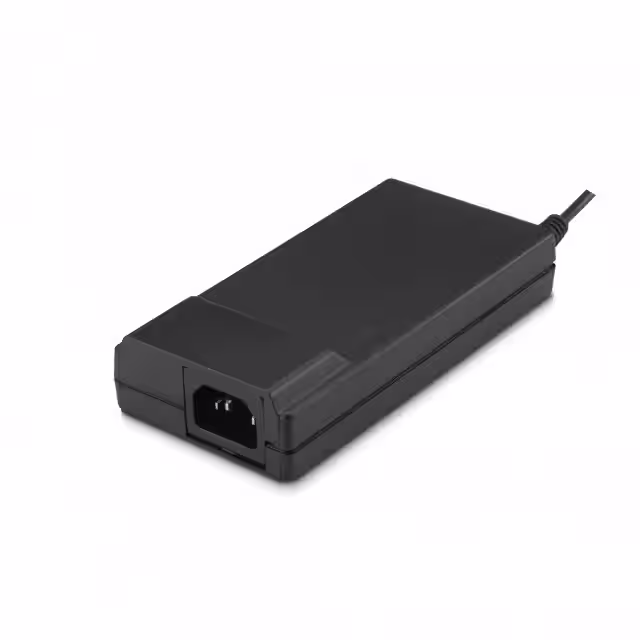

FSP090M-RHAAC/DC DESKTOP ADAPTER 12V 90W |
2,184 |
|
数据手册 |
FSP090M (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 210mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 5.71" L x 2.77" W x 1.12" H (145.0mm x 70.2mm x 28.4mm) | CE, cULus, FCC, TUV, VCCI | |
|
TR9CG6000YL4-IM(R6B)AC/DC DESKTOP ADAPTER 15V 90W |
1,246 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 150mW | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | IEC 320-C14 | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | CB, CCC, CE, cULus, cETLus, EAC, ETL, FCC, PSE, IRAM, NrCAN, UKCA, Ukraine, VCCI, WEEE | |
|
L6R90DM-480-C14AC/DC DESKTOP ADAPTER 48V 90W |
1,909 |
|
数据手册 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV | |
|
|
SDI90-24-U4-STAC-DC, 24 VDC, 3.75 A, SW, C14 D |
2,679 |
|
数据手册 |
SDI90-U (90W) | Box | Active | Australia | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Stripped, Tinned Wire Leads | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, FCC, LPS, PSE, UKCA | |
|
|
SDI90B-56-T-P6AC-DC, 56 VDC, 1.60A, SW, C6 DES |
4,655 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-56-U-P5AC-DC, 56 VDC, 1.60A, SW, C14 DE |
2,242 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-56-U-P5RAC-DC, 56 VDC, 1.60A, SW, C14 DE |
4,242 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-T-P5AC-DC, 48 VDC, 1.88A, SW, C6 DES |
1,484 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-U-P5RAC-DC, 48 VDC, 1.88A, SW, C14 DE |
1,697 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-56-T-P5AC-DC, 56 VDC, 1.60A, SW, C6 DES |
3,031 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-56-U-P6AC-DC, 56 VDC, 1.60A, SW, C14 DE |
1,067 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-T-P6RAC-DC, 48 VDC, 1.88A, SW, C6 DES |
3,243 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-U-P6RAC-DC, 48 VDC, 1.88A, SW, C14 DE |
4,016 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-56-T-P5RAC-DC, 56 VDC, 1.60A, SW, C6 DES |
1,348 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-T-P5RAC-DC, 48 VDC, 1.88A, SW, C6 DES |
1,694 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-U-P6AC-DC, 48 VDC, 1.88A, SW, C14 DE |
3,425 |
|
数据手册 |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | |
|
|
SDI90B-48-T-P6AC-DC, 48 VDC, 1.88A, SW, C6 DES |
3,044 |
|
数据手册 |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
