交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP-90MD HDMAC/DC DESKTOP ADAPTER 19V 90W |
3,480 |
|
数据手册 |
ADP | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 1.7mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C6 | - | 5.00" L x 2.01" W x 1.20" H (127.0mm x 51.0mm x 30.5mm) | CB, CE, cULus | |
|
DT020Z-4AC/DC DESKTOP ADAPTER 5V 10W |
1,164 |
|
数据手册 |
Tri-Mag®, DT-Z (20W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | - | Positive Center | ITE (Commercial) | - | -20°C ~ 60°C | - | 72" (1.83m) | IEC 320-C8 | - | 3.78" L x 2.05" W x 1.25" H (96.0mm x 52.0mm x 32.5mm) | - | |
|

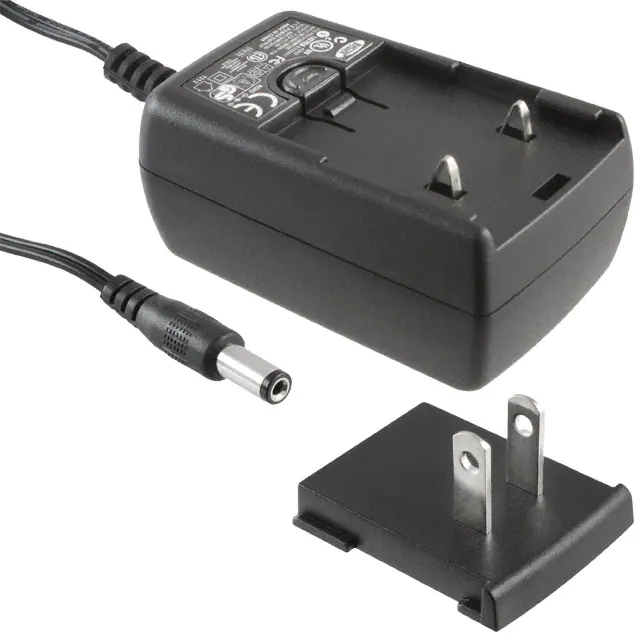

750-00004AC/DC WALL MOUNT ADAPTER 24V 14W |
2,382 |
|
数据手册 |
- | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 120VAC | 24V | 600mA | 14 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | - | Multi-Blade | - | - | - | |
|
ME60A0551N01AC/DC DESKTOP ADAPTER 5V 35W |
3,419 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 7A | 35 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C8 | - | 4.25" L x 2.67" W x 1.28" H (108.0mm x 67.9mm x 32.5mm) | CE | |
|
|
ME60A0551Q01AC/DC DESKTOP ADAPTER 5V 35W |
4,950 |
|
数据手册 |
ME60 (60W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 7A | 35 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C18 | - | 4.25" L x 2.67" W x 1.28" H (108.0mm x 67.9mm x 32.5mm) | CE | |
|
|
15DYS902-480200GAC/DC DESKTOP ADAPTER 48V 96W |
1,491 |
|
数据手册 |
15DYS902 (96W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2A | 96 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | - | - | IEC 320-C8 | - | 5.71" L x 2.42" W x 1.34" H (145.0mm x 61.5mm x 34.0mm) | CE, cULus, RCM, TUV | |
|

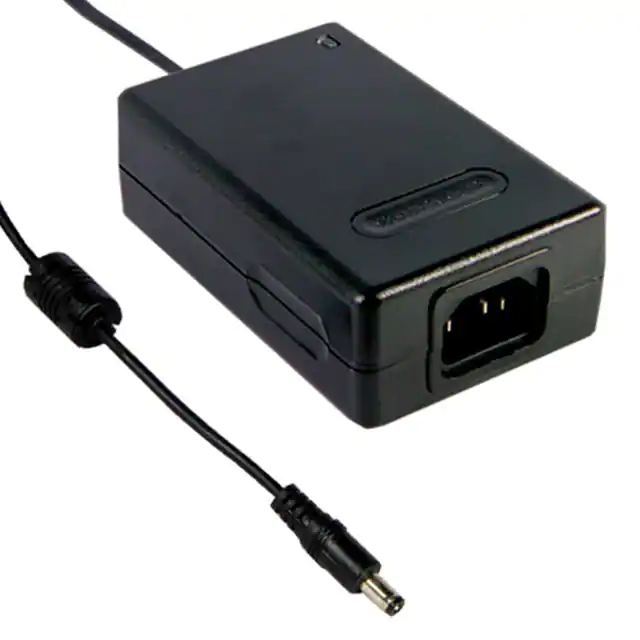

MES30A11P1JAC/DC DESKTOP ADAPTER 7.5V 25W |
3,608 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 3.33A | 25 W | - | Positive Center | Medical | 72% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-1P1JAC/DC DESKTOP ADAPTER 5V 25W |
4,568 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | - | Positive Center | Medical | 70% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-2P1JAC/DC DESKTOP ADAPTER 9V 30W |
3,015 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3.33A | 30 W | - | Positive Center | Medical | 74% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-3P1JAC/DC DESKTOP ADAPTER 12V 30W |
4,371 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | - | Positive Center | Medical | 76% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-6P1JAC/DC DESKTOP ADAPTER 24V 30W |
3,812 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | - | Positive Center | Medical | 80% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-7P1JAC/DC DESKTOP ADAPTER 28V 30W |
4,945 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 1.07A | 30 W | - | Positive Center | Medical | 80% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30A-8P1JAC/DC DESKTOP ADAPTER 48V 30W |
4,290 |
|
数据手册 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 620mA | 30 W | - | Positive Center | Medical | 82% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
MES30B-0P1JAC/DC DESKTOP ADAPTER 3.3V 17W |
1,615 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 3.3V | 5A | 17 W | - | Positive Center | Medical | 56% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B11P1JAC/DC DESKTOP ADAPTER 7.5V 25W |
2,207 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 3.33A | 25 W | - | Positive Center | Medical | 72% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B-1P1JAC/DC DESKTOP ADAPTER 5V 25W |
1,188 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | - | Positive Center | Medical | 70% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B-2P1JAC/DC DESKTOP ADAPTER 9V 30W |
2,320 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3.33A | 30 W | - | Positive Center | Medical | 74% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B-3P1JAC/DC DESKTOP ADAPTER 12V 30W |
3,039 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | - | Positive Center | Medical | 76% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B-4P1JAC/DC DESKTOP ADAPTER 15V 30W |
3,235 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | - | Positive Center | Medical | 78% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV | |
|
|
MES30B-5P1JAC/DC DESKTOP ADAPTER 18V 30W |
2,057 |
|
数据手册 |
MES30B (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 1.66A | 30 W | - | Positive Center | Medical | 78% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV |
