交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDM50-5-UDW-P5AC-DC, 5 VDC, 9 A, SW, C8 DESK-T |
1,150 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 9A | 45 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-5-UDW-P5RAC-DC, 5 VDC, 9 A, SW, C8 DESK-T |
3,428 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 9A | 45 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
AKM65US15AC/DC DESKTOP ADAPTER 15V 65W |
4,692 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.3A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
|
AKM65US18AC/DC DESKTOP ADAPTER 18V 65W |
4,176 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.6A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
|
AKM65US48AC/DC DESKTOP ADAPTER 48V 65W |
1,803 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.35A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
|
AKM65US15C2AC/DC DESKTOP ADAPTER 15V 65W |
3,488 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.3A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
|
AKM65US18C2AC/DC DESKTOP ADAPTER 18V 65W |
3,032 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.6A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
|
AKM65US24C2AC/DC DESKTOP ADAPTER 24V 65W |
3,694 |
|
数据手册 |
AKM65 (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 65 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.92" L x 2.45" W x 1.33" H (125.0mm x 62.2mm x 33.8mm) | CB, CE, CSA, TUV, UL | |
|
ETMA150200UD-P5P-ICAC/DC DESKTOP ADAPTER 15V 30W |
4,378 |
|
数据手册 |
ETMA (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.33" L x 1.97" W x 1.18" H (110.0mm x 50.0mm x 30.0mm) | EN, FCC, SIQ, TUV, UL | |
|
GSM60U07-P1JAC/DC WALL MNT ADAPTER 7.5V 45W |
1,809 |
|
数据手册 |
GSM60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 7.5V | 6A | 45 W | - | Positive Center | Medical | 85% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, FCC, UR | |
|
|
GSM60U12-P1JAC/DC WALL MOUNT ADAPTER 12V 54W |
2,910 |
|
数据手册 |
GSM60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 4.5A | 54 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, FCC, UR | |
|
GSM60E09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W |
4,123 |
|
数据手册 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 9V | 5.5A | 50 W | - | Positive Center | Medical | 87% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV | |
|
|
GSM60E15-P1JAC/DC WALL MOUNT ADAPTER 15V 60W |
2,886 |
|
数据手册 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 15V | 4A | 60 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV | |
|
|
GSM60E48-P1JAC/DC WALL MOUNT ADAPTER 48V 60W |
1,062 |
|
数据手册 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 1.25A | 60 W | - | Positive Center | Medical | 90% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV | |
.jpg)
|

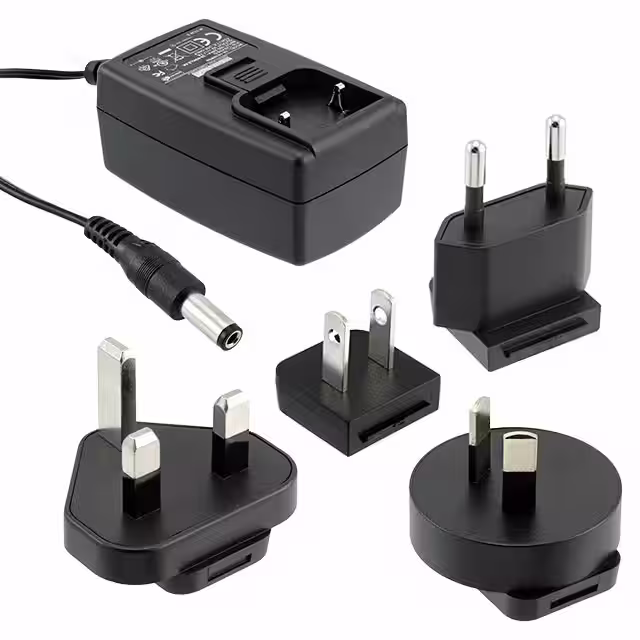

PSU-9V1700MA(UN)AC/DC WALL MOUNT ADAPTER 9V 15W |
3,650 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 9V | 1.7A | 15 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | - | Multi-Blade | - | - | CE, PSE, UL | |
|
MWA050024A-10AAC/DC DESKTOP ADAPTER 24V 50W |
2,067 |
|
数据手册 |
MWA050 (50W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 2.1A | 50 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus | |
|
SDM65-15-UC-P5AC/DC DESKTOP ADAPTER 15V 65W |
2,386 |
|
数据手册 |
SDM65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM65-15-UC-P5RAC/DC DESKTOP ADAPTER 15V 65W |
4,730 |
|
数据手册 |
SDM65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM65-15-UC-P6AC/DC DESKTOP ADAPTER 15V 65W |
3,492 |
|
数据手册 |
SDM65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM65-15-UC-P6RAC/DC DESKTOP ADAPTER 15V 65W |
2,272 |
|
数据手册 |
SDM65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
