交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRG30R180-11E03-GY-BK VIAC/DC WALL MOUNT ADAPTER 18V 30W |
1,673 |
|
数据手册 |
TRG30R V (30W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.67A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 4.24" L x 2.27" W x 1.32" H (107.8mm x 57.6mm x 33.5mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
PR91Y1800T00-IMR6BAC/DC DESKTOP ADAPTER 36V 65W |
2,001 |
|
数据手册 |
GTM96600-65VV.V-P2 (IP68) | Bulk | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 36V | 1.8A | 65 W | 150mW (Max) | Either | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | Wire Leads | Ruggedized, IP68 - Dust Tight, Waterproof | 4.52" L x 2.25" W x 1.54" H (114.8mm x 57.1mm x 39.0mm) | CB, CE, cETLus, EAC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
MENB1010A0603B01AC/DC WALL MOUNT ADAPTER 6V 12W |
4,670 |
|
数据手册 |
MENB1010 (10W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 6V | 2A | 12 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.85" W x 1.26" H (84.0mm x 47.0mm x 32.0mm) | CB, CE, CSA, UL | |
|
SMM30-12-4-MUBAC/DC WALL MOUNT ADAPTER 12V 36W |
1,330 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM50-15-UDW-P6AC-DC, 15 VDC, 3.33 A, SW, C8 DE |
3,640 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.33A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P6RAC-DC, 12 VDC, 4.16 A, SW, C8 DE |
1,213 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P5RAC-DC, 12 VDC, 4.16 A, SW, C8 DE |
2,144 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P6RAC-DC, 15 VDC, 3.33 A, SW, C8 DE |
2,081 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.33A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P6AC-DC, 12 VDC, 4.16 A, SW, C8 DE |
2,976 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P5AC-DC, 15 VDC, 3.33 A, SW, C8 DE |
3,634 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.33A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P5AC-DC, 12 VDC, 4.16 A, SW, C8 DE |
4,244 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P5RAC-DC, 15 VDC, 3.33 A, SW, C8 DE |
1,321 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.33A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
SDI65-12-UD-P6AC/DC DESKTOP ADAPTER 12V 60W |
4,870 |
|
数据手册 |
SDI65-UD (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
SDI65-12-UD-STAC/DC DESKTOP ADAPTER 12V 60W |
3,388 |
|
数据手册 |
SDI65-UD (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Stripped, Tinned Wire Leads | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
AMA40DR5-120033YAC/DC DESKTOP ADAPTER 12V 40W |
2,456 |
|
数据手册 |
AMA40D-Y | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.34A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.26" H (111.0mm x 52.0mm x 32.0mm) | CE, UL | |
|

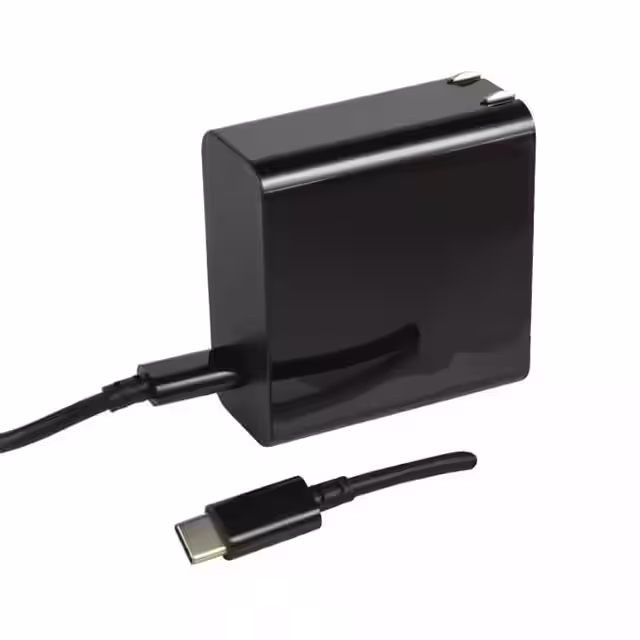

SWC45-P59121520-NB-CAC/DC WALL MNT ADAPT 5V-20V 45W |
1,331 |
|
数据手册 |
SWC45-N (45W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 3A, 3A, 3A, 3A, 2.25A | 45 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C Power Delivery (PD) | 47.2" (1.20m) | NEMA 1-15P | - | 2.36" L x 1.10" W x 2.26" H (60.0mm x 28.0mm x 57.3mm) | CSA, FCC, UL | |
|
|
SMM30-12-4-P5AC/DC WALL MOUNT ADAPTER 12V 36W |
3,493 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P6AC/DC WALL MOUNT ADAPTER 12V 36W |
4,469 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P6RAC/DC WALL MOUNT ADAPTER 12V 36W |
2,870 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P5RAC/DC WALL MOUNT ADAPTER 12V 36W |
3,942 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
