交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDM36-9-UDC-P6AC/DC DESKTOP ADAPTER 9V 36W |
2,301 |
|
数据手册 |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM36-9-UDC-P6RAC/DC DESKTOP ADAPTER 9V 36W |
1,161 |
|
数据手册 |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
SMI36-5-V-P13AC/DC DESKTOP ADAPTER 5V 25W |
1,900 |
|
数据手册 |
SMI36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | 39.4" (1.00m) | Multi-Blade (Included) | - | 3.09" L x 1.39" W x 2.60" H (78.5mm x 35.3mm x 66.0mm) | CCC, CE, cULus, FCC, PSE, RCM | |
|
SDM50-24-UDW-P5AC-DC, 24 VDC, 2.08 A, SW, C8 DE |
1,020 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-24-UDW-P5RAC-DC, 24 VDC, 2.08 A, SW, C8 DE |
2,399 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-24-UDW-P6AC-DC, 24 VDC, 2.08 A, SW, C8 DE |
3,934 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
|
SDM50-24-UDW-P6RAC-DC, 24 VDC, 2.08 A, SW, C8 DE |
3,476 |
|
数据手册 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | |
|
SMM30-5-V-P5AC/DC WALL MOUNT ADAPTER 5V 20W |
4,576 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-5-V-MUBAC/DC WALL MOUNT ADAPTER 5V 20W |
3,453 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-6-V-MUBAC/DC WALL MOUNT ADAPTER 6V 24W |
2,539 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 6V | 4A | 24 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|

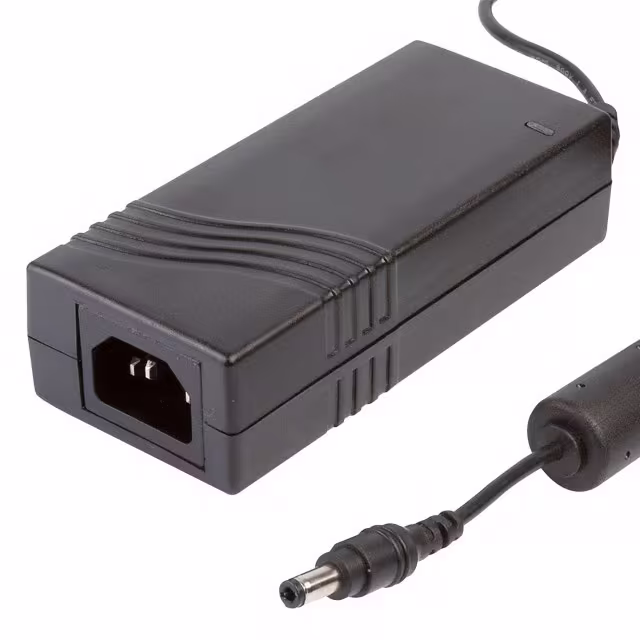

VEF65US12AC/DC DESKTOP ADAPTER 12V 65W |
1,336 |
|
数据手册 |
VEF65 (65W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | -10°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.58" L x 2.06" W x 1.23" H (116.3mm x 52.4mm x 31.3mm) | - | |
|
|
VEF65US24AC/DC DESKTOP ADAPTER 24V 65W |
2,064 |
|
数据手册 |
VEF65 (65W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | -10°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.58" L x 2.06" W x 1.23" H (116.3mm x 52.4mm x 31.3mm) | - | |
|
|
SMI45C-P-CAC-DC, 5V/3A-9V/3A-12V/3A-15V/3 |
1,313 |
|
数据手册 |
SMI45C (45W) | Box | Active | China | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | 45 W | 67mW | - | ITE (Commercial) | 87.73% | 0°C ~ 45°C | USB C Power Delivery (PD) | - | GB 1002 | - | 3.41" L x 1.63" W x 0.98" H (86.5mm x 41.5mm x 25.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | |
|
|
SMI45C-P-NAC-DC, 5V/3A-9V/3A-12V/3A-15V/3 |
3,373 |
|
数据手册 |
SMI45C (45W) | Box | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | 45 W | 67mW | - | ITE (Commercial) | 87.73% | 0°C ~ 45°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 3.41" L x 1.63" W x 0.98" H (86.5mm x 41.5mm x 25.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | |
|
SDI36-24-UC-P5AC/DC DESKTOP ADAPTER 24V 36W |
3,928 |
|
数据手册 |
SDI36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
SDI30-19-UC-P5AC/DC DESKTOP ADAPTER 19V 30W |
4,519 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 1.6A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-19-UC-P5RAC/DC DESKTOP ADAPTER 19V 30W |
1,814 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 1.6A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-19-UC-P6AC/DC DESKTOP ADAPTER 19V 30W |
2,514 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 1.6A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-19-UC-P6RAC/DC DESKTOP ADAPTER 19V 30W |
2,126 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 1.6A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-24-UC-P5AC/DC DESKTOP ADAPTER 24V 30W |
2,087 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
