交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR9LH3610CCP-IMR6BAC/DC DSKTP/WALL MT ADPT 18V 65W |
2,640 |
|
数据手册 |
GTM96600-6518-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 3.61A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, VCCI | |
|
SDM24-9-UD-P5AC/DC DESKTOP ADAPTER 9V 27W |
2,086 |
|
数据手册 |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3A | 27 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | |
|
|
SMM12-5-4W-P6RAC-DC, 5 VDC, 2.4 A, SW, MULTI-B |
1,509 |
|
数据手册 |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | |
|
|
TRE25RD120-11E03 VIAC/DC WALL MOUNT ADAPTER 12V 25W |
4,286 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.1A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD180-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
3,905 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD240-11E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W |
1,668 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.05A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD150-01E03 VIAC/DC WALL MOUNT ADAPTER 15V 25W |
3,627 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 1.67A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Included) | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD120-01E03 VIAC/DC WALL MOUNT ADAPTER 12V 25W |
4,128 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 2.1A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Included) | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD180-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
4,763 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Included) | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25RD240-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W |
2,430 |
|
数据手册 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1.05A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Included) | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
GS15A-11P1JAC/DC DESKTOP ADAPTER 7.5V 12W |
4,860 |
|
数据手册 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15A-2P1JAC/DC DESKTOP ADAPTER 9V 15W |
4,011 |
|
数据手册 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15A-5P1JAC/DC DESKTOP ADAPTER 18V 15W |
4,476 |
|
数据手册 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 830mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15A-8P1JAC/DC DESKTOP ADAPTER 48V 15W |
1,347 |
|
数据手册 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 310mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|

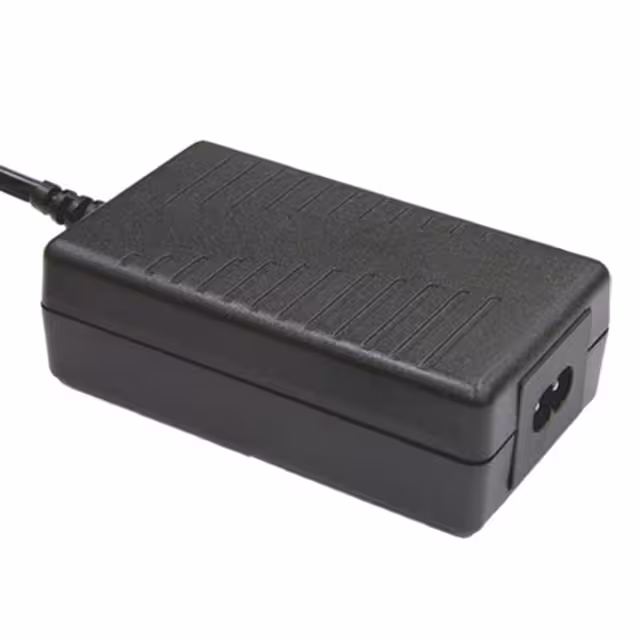

GS15B-11P1JAC/DC DESKTOP ADAPTER 7.5V 12W |
4,308 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15B-1P1JAC/DC DESKTOP ADAPTER 5V 12W |
4,500 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15B-2P1JAC/DC DESKTOP ADAPTER 9V 15W |
4,575 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15B-3P1JAC/DC DESKTOP ADAPTER 12V 15W |
4,377 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15B-4P1JAC/DC DESKTOP ADAPTER 15V 15W |
3,160 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | |
|
|
GS15B-5P1JAC/DC DESKTOP ADAPTER 18V 15W |
1,671 |
|
数据手册 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 830mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
