交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TR9CZ3158LCP-N(R6B)AC/DC DESKTOP ADAPTER 19V 60W |
282 |
|
数据手册 |
GT-46600-60VV-X.X-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 3.15A | 60 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.76" L x 2.05" W x 1.30" H (121.0mm x 52.0mm x 33.0mm) | BSI, BSMI, CB, CCC, CE, cULus, EAC, FCC, GS, LPS, NOM, PSE, RCM, UKRSepro, VCCI | |
|

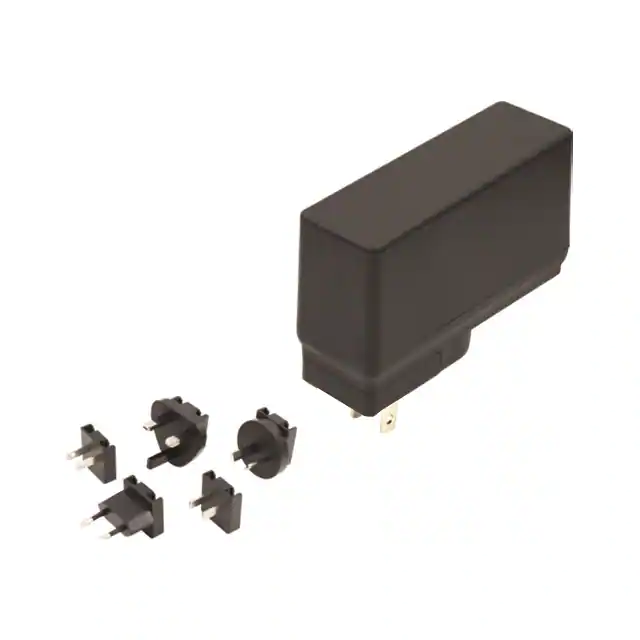

SLE36S1203B01AC/DC WALL MOUNT ADAPTER 12V 36W |
193 |
|
数据手册 |
SLE36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 3.81" L x 1.30" W x 1.99" H (96.7mm x 33.0mm x 50.5mm) | CB, CCC, CE, cULus, cURus, GS, KC, PSE, RCM, TUV | |
|
PSAW65I-13-B1AC/DC WALL MOUNT ADAPTER 15V 65W |
182 |
|
数据手册 |
PSAW65I (65W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 4.33A | 65 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47" (1.20m) | NEMA 1-15P | - | 4.62" L x 1.98" W x 1.40" H (117.3mm x 50.3mm x 35.6mm) | CB, CCC, CE, cULus, FCC, PSE | |
|
TE10A1203B01AC/DC WALL MOUNT ADAPTER 12V 12W |
937 |
|
数据手册 |
TE10 (10W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | |
|

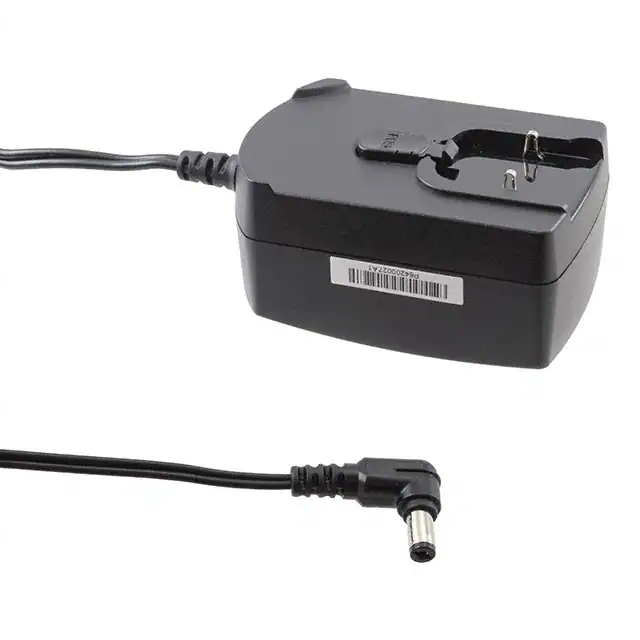

PSAA30R-120-R-CR1AC/DC WALL MOUNT ADAPTER 12V 30W |
946 |
|
数据手册 |
PSAA30R (30W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 3.26" L x 2.17" W x 1.54" H (82.7mm x 55.0mm x 39.1mm) | AS/NZS, cULus, IEC | |
|

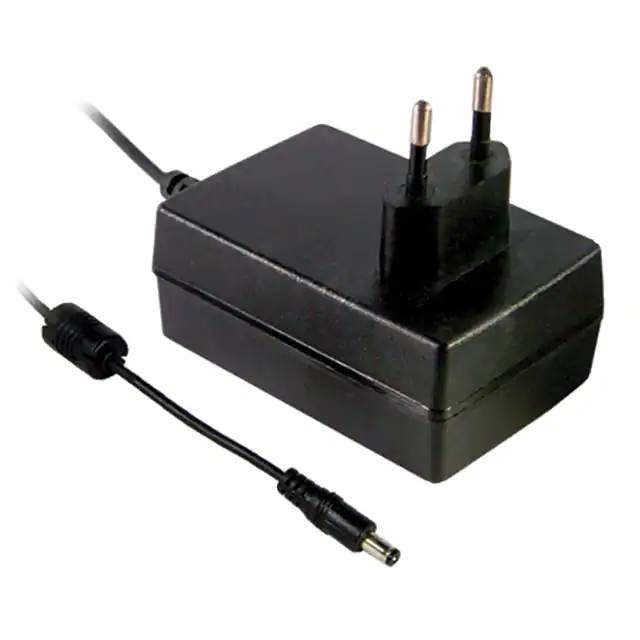

GST36E12-P1JAC/DC WALL MOUNT ADAPTER 12V 36W |
258 |
|
数据手册 |
GST36E (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM | |
|
VER12US050-JAAC/DC WALL MOUNT ADAPTER 5V 11W |
1,191 |
|
数据手册 |
VER12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.1A | 11 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 3.01" L x 1.61" W x 1.48" H (76.5mm x 41.0mm x 37.6mm) | CB | |
|
SWI15-12-N-P5AC/DC WALL MOUNT ADAPTER 12V 12W |
903 |
|
数据手册 |
SWI15-N (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | EN, FCC, UL | |
|
WDU9-1000AC/DC WALL MOUNT ADAPTER 9V 9W |
140 |
|
数据手册 |
WDU | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 1A | 9 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm) | cUL, UL | |
|
SDI18-9-U-P6AC/DC DESKTOP ADAPTER 9V 20W |
809 |
|
数据手册 |
SDI18-U (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2.2A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
WR9QI1660CCPN-NAR6BAC/DC WALL MOUNT ADAPTER 24V 40W |
530 |
|
数据手册 |
GTM46402-40VV-x.x-Q | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 24V | 1.66A | 40 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 1.71" L x 2.91" W x 1.39" H (43.5mm x 74.0mm x 35.3mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
SWI15-15-E-P5AC/DC WALL MOUNT ADAPTER 15V 15W |
416 |
|
数据手册 |
SWI15-E (15W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | CEE 7/16 | - | 2.80" L x 2.62" W x 1.91" H (71.0mm x 66.6mm x 48.4mm) | EN, FCC, SIQ, TUV | |
|
WSU150-1600AC/DC WALL MOUNT ADAPTER 15V 24W |
126 |
|
数据手册 |
WSU | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | cETLus | |
|
QAWA-24-12-US01AC/DC WALL MOUNT ADAPTER 12V 24W |
861 |
|
数据手册 |
QAWA-24 (24W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | BSMI, CB, CCC, CE, cULus, FCC, GS, PSE | |
|
|
SDI18-5-U-P5RAC/DC DESKTOP ADAPTER 5V 15W |
126 |
|
数据手册 |
SDI18-U (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
QFWC-30-20-USCRAC/DC WALL MNT ADAPT 5V-20V 30W |
951 |
|
数据手册 |
QFWC-30 (30W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V, 9V, 12V, 15V, 20V | 3A, 3A, 2.5A, 2A, 1.5A | 30 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C Receptacle | - | NEMA 1-15P | - | 2.09" L x 2.09" W x 1.10" H (53.0mm x 53.0mm x 28.0mm) | cULus, FCC | |
|
SMI36-24-K-P6AC/DC WALL MOUNT ADAPTER 24V 36W |
310 |
|
数据手册 |
SMI36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
SDI36-15-U-P5AC/DC DESKTOP ADAPTER 15V 36W |
748 |
|
数据手册 |
SDI36-U (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
44ATM036T-P240AC/DC DESKTOP ADAPTER 24V 36W |
138 |
|
数据手册 |
44ATM036T-P (36W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | Medical | Level VI | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB, CE, cULus, FCC, PSE, TUV, UKCA | |
|
GSM25B05-P1JAC/DC DESKTOP ADAPTER 5V 20W |
125 |
|
数据手册 |
GSM25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV |
