交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRG1512-E-12E03 VIADAPTER AC-DC |
4,013 |
|
数据手册 |
TRG15 (15W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | CEE 7/16 | - | 2.84" L x 1.38" W x 2.78" H (72.0mm x 35.0mm x 70.6mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | |
|
|
TRG1512-A-11E03 VIADAPTER AC-DC |
4,507 |
|
数据手册 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.8" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | |
|
|
TRG1509-S-11E03 VIADAPTER AC-DC |
1,497 |
|
数据手册 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.4A | 13 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.8" (1.80m) | AS 3112 | - | 2.84" L x 1.38" W x 2.64" H (72.0mm x 35.0mm x 67.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | |
|
SDI36-15-UD-P5RAC/DC DESKTOP ADAPTER 15V 36W |
4,963 |
|
数据手册 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-15-UD-P6RAC/DC DESKTOP ADAPTER 15V 36W |
3,327 |
|
数据手册 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-24-UD-P5RAC/DC DESKTOP ADAPTER 24V 36W |
4,746 |
|
数据手册 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-24-UD-P6RAC/DC DESKTOP ADAPTER 24V 36W |
4,750 |
|
数据手册 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
VEP15US12AC/DC WALL MOUNT ADAPTER 12V 15W |
4,510 |
|
数据手册 |
VEP15 (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 1.25A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade | - | 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm) | CB, TUV, UL | |
|
WSX050-4000-RAC/DC WALL MOUNT ADAPTER 5V 20W |
3,301 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WSX060-4000-RAC/DC WALL MNT ADAPTER 5.9V 24W |
1,975 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5.9V | 4A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WSX075-3200-RAC/DC WALL MNT ADAPTER 7.5V 24W |
2,975 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 7.5V | 3.2A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WSX150-1600-RAC/DC WALL MOUNT ADAPTER 15V 24W |
3,950 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WSX180-1330AC/DC WALL MOUNT ADAPTER 18V 24W |
1,825 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 1.33A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WSX180-1330-RAC/DC WALL MOUNT ADAPTER 18V 24W |
4,276 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 1.33A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
|
WR9QE1500A00-N(R6B)PWR SUPP, BATT, COND |
2,905 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
WR9QI1660YL4NKITR6BAC/DC WALL MOUNT ADAPTER 24V 40W |
4,699 |
|
数据手册 |
GTM46402-4024 | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.66A | 40 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
VER18US090-JAAC/DC WALL MOUNT ADAPTER 9V 18W |
1,780 |
|
数据手册 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | CB | |
|

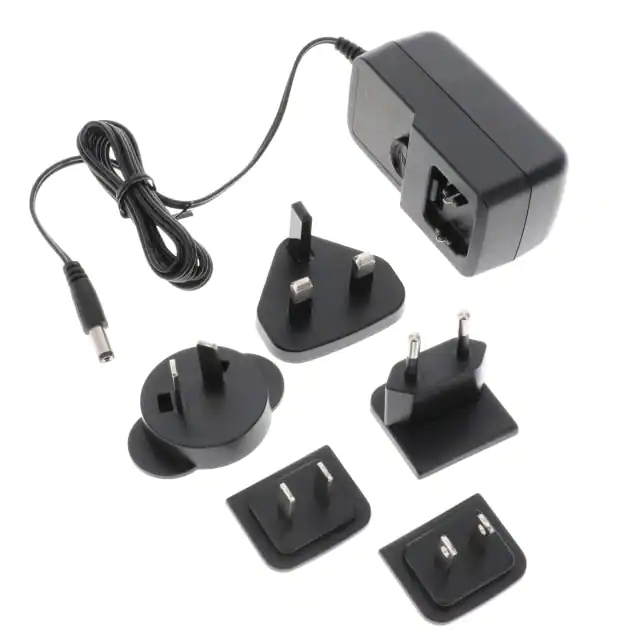

VER18US120-JAAC/DC WALL MOUNT ADAPTER 12V 18W |
1,804 |
|
数据手册 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | CB | |
|
|
VER18US240-JAAC/DC WALL MOUNT ADAPTER 24V 18W |
2,680 |
|
数据手册 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 750mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | CB | |
|
|
RPS-ICR2-EUPOWER SUPPLY, ICR2, 12V/1A, 6-PI |
2,988 |
|
数据手册 |
SYS1381N-W2E (12W) | Bulk | Active | Europe | Wall Mount (Class I) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Rectangular, 6 Position | 59" (1.50m) | CEE 7/16 | - | 2.48" L x 1.14" W x 2.49" H (63.0mm x 29.0mm x 63.2mm) | CE |
