交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST18U09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W |
1,845 |
|
数据手册 |
GST18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC | |
|
GST25B18-P1JAC/DC DESKTOP ADAPTER 18V 25W |
3,563 |
|
数据手册 |
GST25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 1.38A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
TR9KA3000T00-IMR6BAC/DC DESKTOP ADAPTER 5V 15W |
4,617 |
|
数据手册 |
GTM96180-18VV-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
NGE12I09-P1J+9V1.33A;18AWG/150CM |
1,350 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 750mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 46.65" (1.19m) | Multi-Blade (Included) | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, CCC, CE, cUL, cULus, cURus, EAC, PSE, TUV, UKCA | |
|
|
NGE12U05-USB+5V2.4A;USB |
3,245 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 750mW | - | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | USB A Receptacle | - | NEMA 1-15P | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, cULus, cURus, FCC, PSE, TUV | |
|
|
NGE12U15-P1J+15V0.8A;20AWG/150CM |
4,050 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 800mA | 12 W | 750mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 46.65" (1.19m) | NEMA 1-15P | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, cULus, cURus, FCC, PSE, TUV | |
|
|
NGE12U05-P1J+5V2.4A;18AWG/150CM |
2,415 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 750mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 46.65" (1.19m) | NEMA 1-15P | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, cULus, cURus, FCC, PSE, TUV | |
|
|
NGE12U09-P1J+9V1.33A;18AWG/150CM |
1,319 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 750mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 46.65" (1.19m) | NEMA 1-15P | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, cULus, cURus, FCC, PSE, TUV | |
|
|
NGE12I24-P1J+24V0.625A;20AWG/150CM |
1,633 |
|
数据手册 |
NGE12 (12W) | Bulk | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 625mA | 15 W | 750mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 46.65" (1.19m) | Multi-Blade (Included) | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, CCC, CE, cUL, cULus, cURus, EAC, PSE, TUV, UKCA | |
|
|
44MKB2-0752000DEXDPLUG-IN AC/DC MEDICA EXTERNAL AD |
2,350 |
|
数据手册 |
44MKB2 (15W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | - | Positive Center | Medical | Level VI | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 78.74" (2.0m) | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.36" H (59.0mm x 41.0mm x 34.5mm) | CE, C-Tick, cULus, FCC, UKCA | |
|
|
44MKB2-1800800DEXDPLUG-IN AC/DC MEDICA EXTERNAL AD |
2,794 |
|
数据手册 |
44MKB2 (15W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 833mA | 15 W | - | Positive Center | Medical | Level VI | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 78.74" (2.0m) | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.36" H (59.0mm x 41.0mm x 34.5mm) | CE, C-Tick, cULus, FCC, UKCA | |
|
|
44MKB2-1201000DEXDPLUG-IN AC/DC MEDICA EXTERNAL AD |
1,921 |
|
数据手册 |
44MKB2 (15W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | - | Positive Center | Medical | Level VI | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 78.74" (2.0m) | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.36" H (59.0mm x 41.0mm x 34.5mm) | CE, C-Tick, cULus, FCC, UKCA | |
|
|
44MKB2-2400625DEXDPLUG-IN AC/DC MEDICA EXTERNAL AD |
4,224 |
|
数据手册 |
44MKB2 (15W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 625mA | 15 W | - | Positive Center | Medical | Level VI | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 78.74" (2.0m) | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.36" H (59.0mm x 41.0mm x 34.5mm) | CE, C-Tick, cULus, FCC, UKCA | |
|
|
44MKB2-0901660DEXDPLUG-IN AC/DC MEDICA EXTERNAL AD |
2,359 |
|
数据手册 |
44MKB2 (15W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.666A | 15 W | - | Positive Center | Medical | Level VI | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 78.74" (2.0m) | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.36" H (59.0mm x 41.0mm x 34.5mm) | CE, C-Tick, cULus, FCC, UKCA | |
|

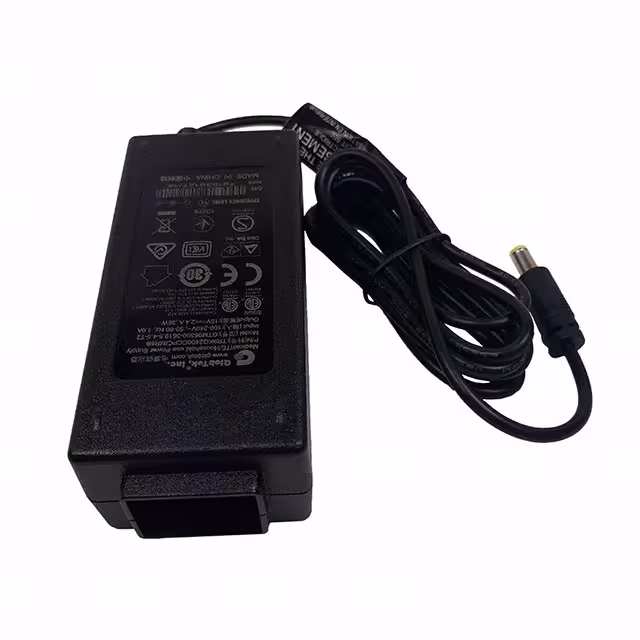

TR9KG2400CCPCIMR6BAC/DC DESKTOP ADAPTER 15V 36W |
2,121 |
|
数据手册 |
GTM96300-36VV-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.13" L x 1.97" W x 1.40" H (105.0mm x 50.0mm x 35.5mm) | CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
|
NGE30E48-P1J+48V/0.63A; 20AWG/150CM |
1,427 |
|
数据手册 |
NGE30 (30W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 630mA | 30 W | 75mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 2.44" L x 1.18" W x 2.56" H (62.0mm x 30.0mm x 65.0mm) | CB, CE, EAC | |
|
RR9LR1200T00CIMR6BAC/DC DSKTP/WALL MT ADPT 30V 36W |
3,986 |
|
数据手册 |
GTM96300-36VV-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
GST36B09-P1JAC/DC DESKTOP ADAPTER 9V 28W |
3,821 |
|
数据手册 |
GST36B (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 3.11A | 28 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
GST36E09-P1JAC/DC WALL MOUNT ADAPTER 9V 28W |
3,417 |
|
数据手册 |
GST36E (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 9V | 3.11A | 28 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM | |
|
|
GST36E05-P1JAC/DC WALL MOUNT ADAPTER 5V 22W |
2,528 |
|
数据手册 |
GST36E (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 5V | 4.3A | 22 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM |
