交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRG1507-U-01E03 VIAC/DC WALL MNT ADAPTER 7.5V 12W |
4,181 |
|
数据手册 |
TRG15 (15W) | Box | Active | United Kingdom | Wall Mount (Class I) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | BS 1363 | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
TRG1524-U-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 15W |
3,338 |
|
数据手册 |
TRG15 (15W) | Box | Active | United Kingdom | Wall Mount (Class I) | Fixed Blade | 90 ~ 264 VAC | 24V | 630mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | BS 1363 | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
TR15RA050-11E03-GY-BK VIAC/DC WALL MOUNT ADAPTER 5V 10W |
2,080 |
|
数据手册 |
TR15RA (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.89" W x 1.71" H (80.6mm x 47.9mm x 43.3mm) | CE, cULus, GS, PSE | |
|
ACM18US15AC/DC WALL MOUNT ADAPTER 15V 19W |
1,352 |
|
数据手册 |
ACM18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 1.25A | 19 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade | - | 3.46" L x 1.18" W x 1.95" H (88.0mm x 30.0mm x 49.5mm) | CB, CE | |
|
TE20A0502F01AC/DC DESKTOP ADAPTER 5V 15W |
1,668 |
|
数据手册 |
TE20 (20W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
GSM18U18-P1JAC/DC WALL MOUNT ADAPTER 18V 18W |
3,902 |
|
数据手册 |
GSM18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | |
|

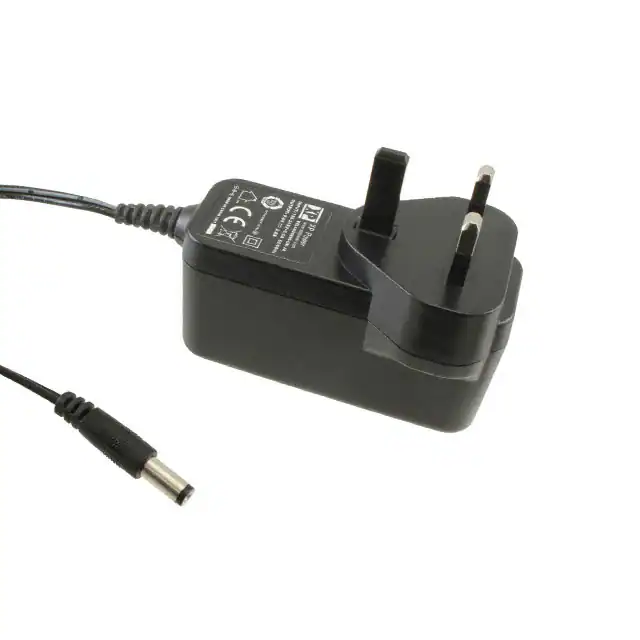

VEL24US120-UK-JAAC/DC WALL MOUNT ADAPTER 12V 24W |
3,488 |
|
数据手册 |
VEL24 (24W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | BS 1363 | - | 3.54" L x 1.95" W x 1.97" H (90.0mm x 49.5mm x 50.0mm) | CB, TUV, UL | |
|
VEL24US150-EU-JAAC/DC WALL MOUNT ADAPTER 15V 24W |
4,364 |
|
数据手册 |
VEL24 (24W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL | |
|
6A-061WP24-002AC/DC DSKTP/WALL MT ADAPT 24V 6W |
1,034 |
|
数据手册 |
6A-061WP24 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 250mA | 6 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL | |
|
|
6A-061WP18-002ACDC DSKTP/WALL MT ADP 18V 5.94W |
4,241 |
|
数据手册 |
6A-061WP18 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 330mA | 5.94 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL | |
|
WSX135-1770-R13AC/DC WALL MNT ADAPTER 13.5V 24W |
2,166 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 13.5V | 1.77A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
GS06U-1P1JAC/DC WALL MOUNT ADAPTER 5V 5W |
4,418 |
|
数据手册 |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus | |
|
|
GS06U-6P1JAC/DC WALL MOUNT ADAPTER 24V 6W |
3,638 |
|
数据手册 |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 250mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus | |
|
GS06E-1P1JAC/DC WALL MOUNT ADAPTER 5V 5W |
3,460 |
|
数据手册 |
GS06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, GS | |
|
SWI24-12-N-P11AC/DC WALL MOUNT ADAPTER 12V 24W |
2,710 |
|
数据手册 |
SWI24-N (24W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.72" H (72.0mm x 34.0mm x 69.0mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL | |
|
16-00242AC/DC WALL MNT ADPTR 5V-20V 42W |
4,607 |
|
数据手册 |
- | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V, 9V, 12V, 15V, 20V | 3A, 3A, 2.5A, 2A, 1.5A | 42 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 35°C | USB A Receptacle, USB C Power Delivery (PD) | - | NEMA 1-15P | - | 2.58" L x 2.36" W x 1.14" H (65.5mm x 60.0mm x 29.0mm) | cULus, FCC | |
|
ETSA190210UDC-P16P-SZ-C1AC/DC DESKTOP ADAPTER 19V 40W |
1,385 |
|
数据手册 |
ESTA (40W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 19V | 2.1A | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | - | 72" (1.83m) | IEC 320-C8 | - | 2.97" L x 1.88" W x 1.11" H (75.5mm x 47.8mm x 28.2mm) | CE, cULus, GS | |
|
SGA12E05-P1JAC/DC WALL MOUNT ADAPTER 5V 12W |
4,194 |
|
数据手册 |
SGA12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CB, CE, GS | |
|
SGA12U48-P1JAC/DC WALL MOUNT ADAPTER 48V 12W |
1,702 |
|
数据手册 |
SGA12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 250mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | CB, cURus | |
|

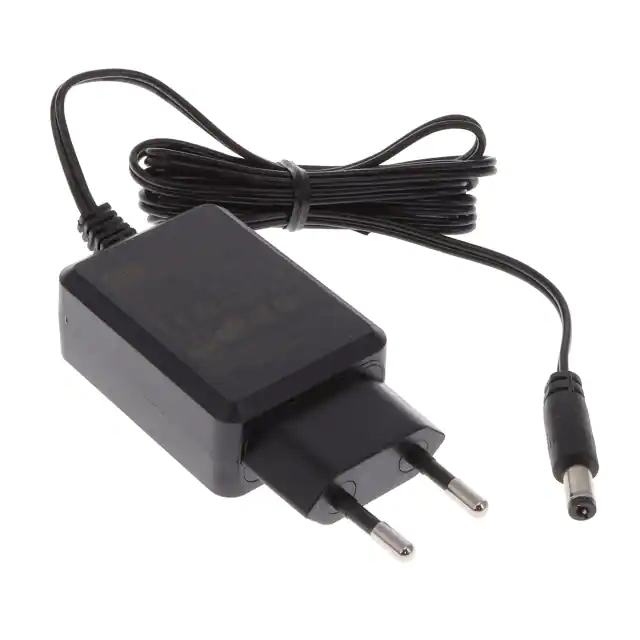

SGAS15E09-P1JAC/DC WALL MOUNT ADAPTER 9V 15W |
1,523 |
|
数据手册 |
SGAS15E (15W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW | Positive Center | ITE (Commercial) | 84% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | CEE 7/16 | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, CE, EAC, FCC, GS, TUV, UKCA |
