交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TR9CX3333T00-IMCF(R6B)AC/DC DESKTOP ADAPTER 54V 180W |
2,044 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 54V | 3.33A | 180 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 1 | -10°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C14 | - | 6.93" L x 2.91" W x 1.58" H (176.0mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
TR9CH9440YL4IMCFR6BAC/DC DESKTOP ADAPTER 18V 170W |
3,156 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 9.44A | 170 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 1 | -10°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.93" L x 2.91" W x 1.58" H (176.0mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
TR9KI7500YL4IMR6BAC/DC DESKTOP ADAPTER 24V 180W |
4,356 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 7.5A | 180 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C8 | - | 6.95" L x 2.91" W x 1.58" H (176.5mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI | |
|
TR9CH9440YL4IMR6BAC/DC DESKTOP ADAPTER 18V 170W |
3,848 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 9.44A | 170 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.95" L x 2.91" W x 1.58" H (176.5mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
TR9KE13330YL4IMR6BAC/DC DESKTOP ADAPTER 12V 160W |
1,142 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 13.33A | 160 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C8 | - | 6.95" L x 2.91" W x 1.58" H (176.5mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI | |
|
ALM85US19AC/DC DESKTOP ADAPTER 19V 85W |
3,591 |
|
数据手册 |
ALM85 (85W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 19V | 4.47A | 85 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 35.4" (0.9m) | IEC 320-C14 | - | 5.31" L x 2.44" W x 1.46" H (135.0mm x 62.0mm x 37.0mm) | CE | |
|
L6R120DM-150-C8AC/DC DESKTOP ADAPTER 15V 120W |
1,290 |
|
数据手册 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 8A | 120 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV | |
|
TR9CI7500YL4CIMCFR6BAC/DC DESKTOP ADAPTER 24V 180W |
3,588 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 7.5A | 180 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 1 | -10°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.93" L x 2.91" W x 1.58" H (176.0mm x 74.0mm x 40.0mm) | CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|

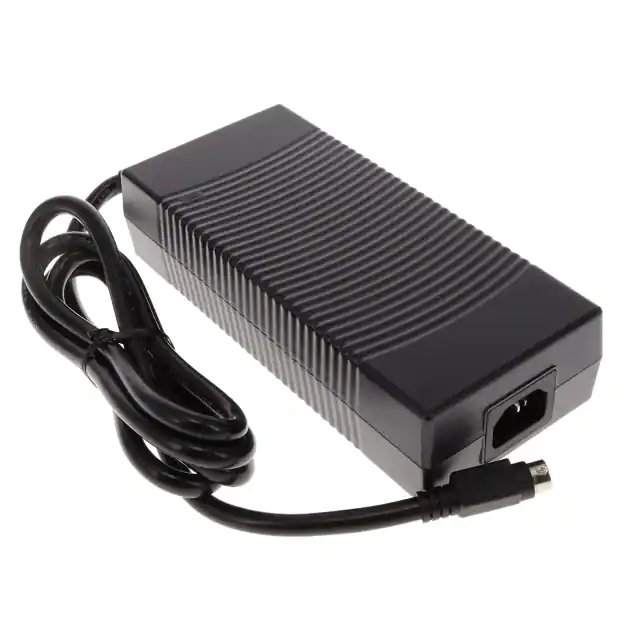

PPL200U-480AC/DC DESKTOP ADAPTER 48V 200W |
2,689 |
|
数据手册 |
PPL200U (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 4.17A | 200 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 7.21" L x 3.19" W x 1.67" H (183.2mm x 81.0mm x 42.3mm) | cULus, IEC | |
|
GSM220A20-R7BAC/DC DESKTOP ADAPTER 20V 220W |
3,628 |
|
数据手册 |
GSM220A (220W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 20V | 11A | 220 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 8.27" L x 3.35" W x 1.81" H (210.0mm x 85.0mm x 46.0mm) | CB, CE, cRUus, TUV | |
|
DT80PW480DAC/DC DESKTOP ADAPTER 48V 80W |
4,325 |
|
数据手册 |
DT80-D (80W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.67A | 80 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 70°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE | |
|
L6R120DM-480-C8AC/DC DESKTOP ADAPTER 48V 120W |
1,649 |
|
数据手册 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV | |
|
SDI120G-19-U-P51AC/DC DESKTOP ADAPTER 19V 120W |
3,490 |
|
数据手册 |
GaN, SDI120G-U (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 19V | 6.3A | 120 W | 150mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 5.20" L x 2.01" W x 1.26" H (132.0mm x 51.0mm x 32.0mm) | CE, cULus, FCC, UKCA | |
|
DTM65PW190C8AC/DC DESKTOP ADAPTER 19V 65W |
2,946 |
|
数据手册 |
DTM65-C8 (65W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 3.42A | 65 W | 210mW (Max) | - | Medical | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C8 | - | 4.17" L x 2.36" W x 1.22" H (106.0mm x 60.0mm x 31.0mm) | CE | |
|
|
DTM65PW150C8AC/DC DESKTOP ADAPTER 15V 60W |
1,165 |
|
数据手册 |
DTM65-C8 (65W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4A | 60 W | 210mW (Max) | - | Medical | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C8 | - | 4.17" L x 2.36" W x 1.22" H (106.0mm x 60.0mm x 31.0mm) | CE | |
|
PMP122-13AC/DC DESKTOP ADAPTER 15V 105W |
1,825 |
|
数据手册 |
PMP122 (122W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 7A | 105 W | 150mW | - | Medical | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 48" (1.22m) | IEC 320-C14 | - | 6.00" L x 3.55" W x 1.11" H (152.4mm x 90.2mm x 28.2mm) | CB, CCC, CE, cURus, PSE, UKCA | |
|
PEAD310-13AC/DC DESKTOP ADAPTER 15V 250W |
2,162 |
|
数据手册 |
PEAD310 (310W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 16.66A | 250 W | 500mW | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Rectangular, 6 Position | 47" (1.20m) | IEC 320-C14 | - | 7.80" L x 4.00" W x 2.00" H (198.1mm x 101.6mm x 50.8mm) | CB, CCC, CE, cULus, FCC, TUV | |
|
L6R120DM-190-C8AC/DC DESKTOP ADAPTER 19V 120W |
4,279 |
|
数据手册 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV | |
|
DTM110PW150C8AC/DC DESKTOP ADAPTER 15V 110W |
3,420 |
|
数据手册 |
DTM110-C8 (110W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 7.34A | 110 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C8 | - | 5.51" L x 2.48" W x 1.30" H (140.0mm x 63.0mm x 33.0mm) | CE | |
|
SDI160G-24-UD-P51AC/DC DESKTOP ADAPTER 24V 158W |
4,430 |
|
数据手册 |
GaN, SDI160G-UD (160W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 6.6A | 158 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
