交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

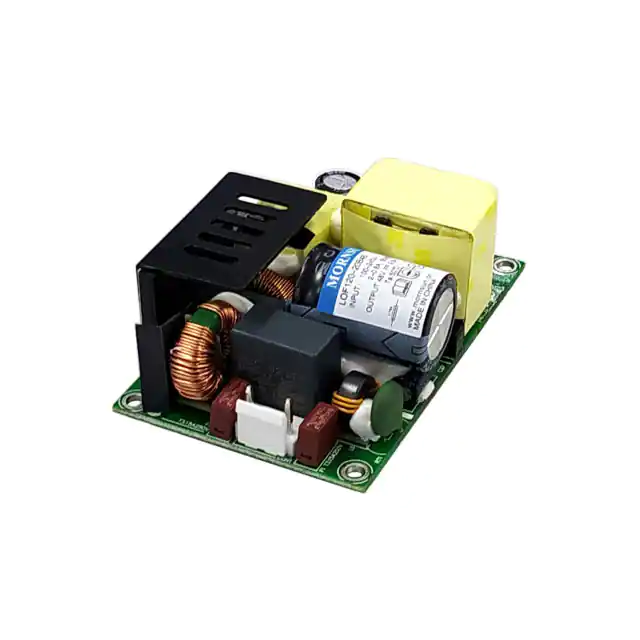

LOF120-20B48AC/DC CONVERTER 48V 120W |
153 |
|
数据手册 |
LOF120-20Bxx (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | ||
|

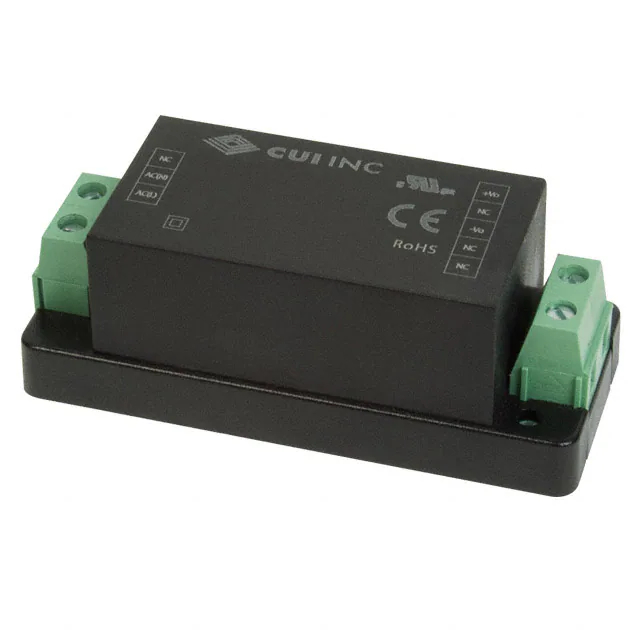

VSK-S10-12UA-TAC/DC CONVERTER 12V 10W |
3,150 |
|
数据手册 |
VSK-S10-T (10W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.09" H (76.0mm x 31.5mm x 27.8mm) | ||
|
|
VSK-S10-5UA-TAC/DC CONVERTER 5V 10W |
4,373 |
|
数据手册 |
VSK-S10-T (10W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.09" H (76.0mm x 31.5mm x 27.8mm) | ||
|
PMT-24V100W1AAAC/DC CONVERTER 24V 100W |
562 |
|
数据手册 |
PMT (108W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm) | ||
|
PMT-12V100W1AAAC/DC CONVERTER 12V 100W |
200 |
|
数据手册 |
PMT (102W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm) | ||
|
ABC40-1024GAC/DC CONVERTER 24V 40W |
3,415 |
|
数据手册 |
ABC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
|
VSK-S10-24UA-TAC/DC CONVERTER 24V 10W |
172 |
|
数据手册 |
VSK-S10-T (10W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 450 mA | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.09" H (76.0mm x 31.5mm x 27.8mm) | ||
|
PMT-12V150W1AAAC/DC CONVERTER 12V 150W |
898 |
|
数据手册 |
PMT (150W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm) | ||
.jpg)
|
LM200-10B24AC/DC CONVERTER 24V 211W |
294 |
|
数据手册 |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|

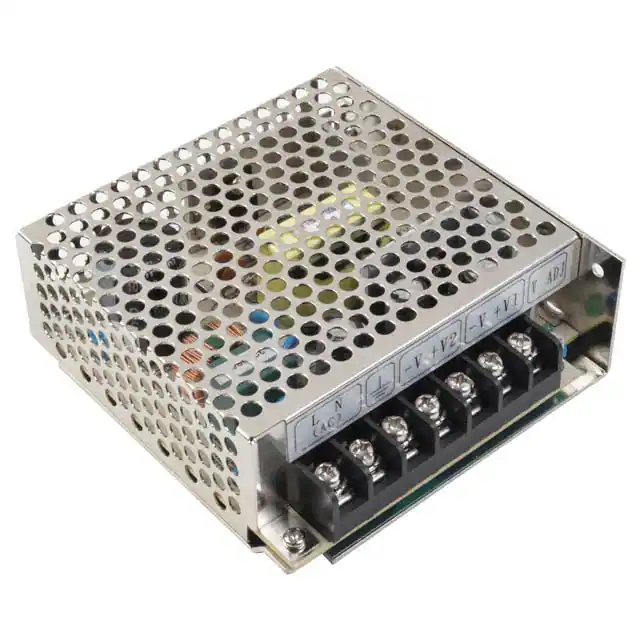

VGD-30-D524AC/DC CONVERTER 5V 24V 30W |
2,955 |
|
数据手册 |
VGD-30 (30W) | Bulk | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 4 A | 1 A | - | - | - | - | 30W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
MBC40-1012GAC/DC CONVERTER 12V 40W |
3,531 |
|
数据手册 |
MBC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 40W | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
|
LM200-10B12AC/DC CONVERTER 12V 204W |
221 |
|
数据手册 |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|

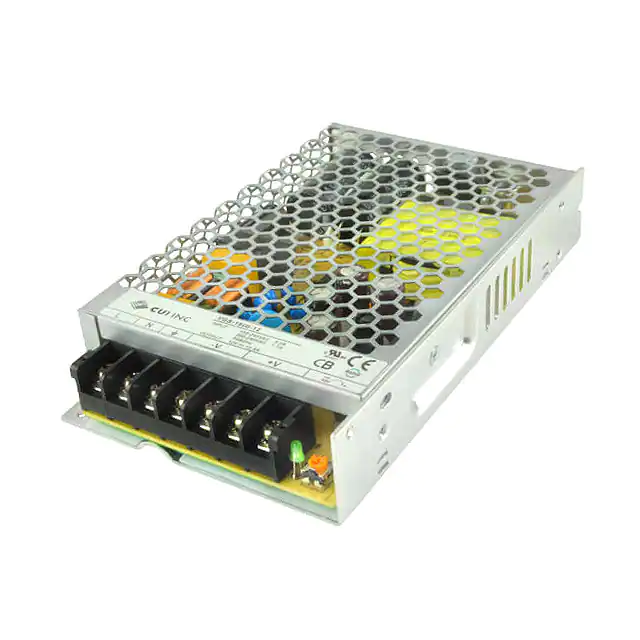

VGS-150B-48AC/DC CONVERTER 48V 154W |
3,791 |
|
数据手册 |
VGS-150B (150W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 154W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
PMT-24V150W1AAAC/DC CONVERTER 24V 150W |
826 |
|
数据手册 |
PMT (156W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm) | ||
|

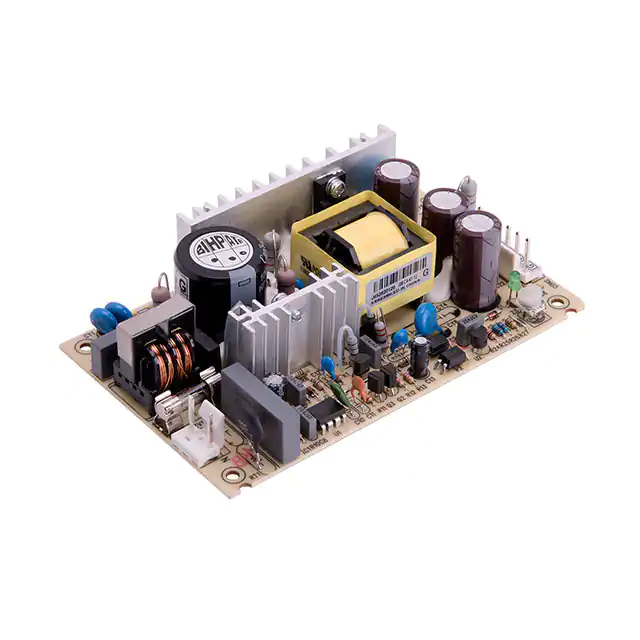

GECA40AGAC/DC CONVERTER 5V +/-12V 40W |
213 |
|
数据手册 |
GECA40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 3.5 A | 2 A | 300 mA | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|

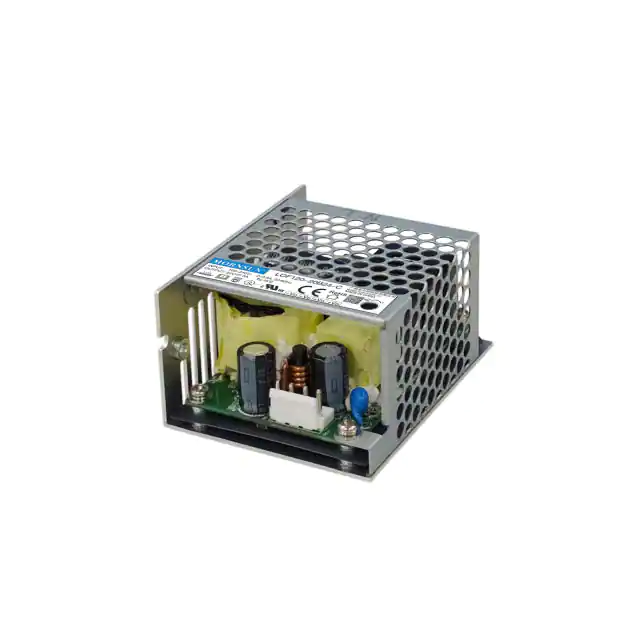

LOF120-20B12-CAC/DC CONVERTER 12V 114W |
221 |
|
数据手册 |
LOF120-20Bxx-C (120W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 9.5 A | - | - | - | - | - | 114W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
MTA040015AAC/DC CONVERTER 15V 40W |
175 |
|
数据手册 |
MTA040 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 40W | Medical | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.08" H (101.6mm x 50.8mm x 27.5mm) | ||
|
|
MTA040024AAC/DC CONVERTER 24V 40W |
336 |
|
数据手册 |
MTA040 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | Medical | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.08" H (101.6mm x 50.8mm x 27.5mm) | ||
|

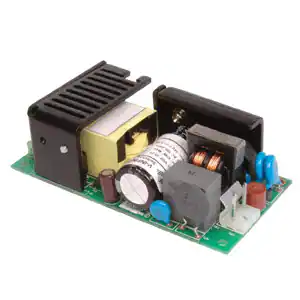

VOF-45-5AC/DC CONVERTER 5V 45W |
3,361 |
|
数据手册 |
VOF-45 (45W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) | ||
|
PV15-12SAC/DC CONVERTER 12V 15W |
276 |
|
数据手册 |
PV15 (15W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C | - | Chassis Mount | 2.60" L x 1.98" W x 1.10" H (66.0mm x 50.4mm x 28.0mm) |
