交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCM600Q-T-N-4AC/DC CONVERTER 24V 600W |
4,027 |
|
数据手册 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
CSU1800AP-3-11112.2V AND 12VSB OUTPUT, 1800W 1U |
3,712 |
|
数据手册 |
CSU (2000W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 164 ~ 320 VDC | 12.2V | - | - | - | - | - | 147.5 A | - | - | - | - | - | 1800W | ITE (Commercial) | - | -5°C ~ 55°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Standby Output | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) | ||
|
|
MAP80-4003GAC/DC CNVRTR 5V 15V -5V -15V 80W |
3,894 |
|
数据手册 |
MAP80 (80W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5V | 15V | -5V | -15V | - | - | 14 A | 4 A | 1 A | 1 A | - | - | 80W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) | ||
|
|
MPR0812TER12Z02A850W, 12V, UNIVERSAL AC INPUT FR |
1,072 |
|
数据手册 |
MPR0812 (850W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 70.8 A | - | - | - | - | - | 850W | ITE (Commercial) | 3 kV | -5°C ~ 50°C | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.00" L x 2.15" W x 1.57" H (228.6mm x 54.5mm x 40.0mm) | ||
|
|
CSU1600AT-3-10012.2V AND 12VSB OUTPUT, C14 1600 |
3,451 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
|
CSU2000AT-3-10012.2V AND 12VSB OUTPUT, C14 2000 |
2,116 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
|
CSU1800AT-3-10012.2V AND 12VSB OUTPUT, C14 1800 |
3,685 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
PFE850-12-054RAAC/DC CONVERTER 12V 5V 850W |
1,006 |
|
数据手册 |
PFE850 (850W) | Bulk | Active | Front End | 2 | 90 ~ 264 VAC | 12V | 5V | - | - | - | - | 70 A | 3.3 A | - | - | - | - | 850W | ITE (Commercial) | - | 0°C ~ 65°C (With Derating) | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 14.17" L x 2.15" W x 1.57" H (360.0mm x 54.5mm x 40.0mm) | ||
|
|
CSU2400AP-3-11112.2V AND 12VSB OUTPUT, 2400W 1U |
3,240 |
|
数据手册 |
CSU (2000W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 164 ~ 320 VDC | 12.2V | - | - | - | - | - | 196.7 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | -5°C ~ 55°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Standby Output | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) | ||
|
|
MAP130-4010GAC/DC CNVRT 5V 12V -5V -12V 130W |
4,915 |
|
数据手册 |
MAP130 (130W) | Bulk | Active | Open Frame | 4 | 90 ~ 132 VAC, 175 ~ 264 VAC | 5V | 12V | -5V | -12V | - | - | 20 A | 5 A | 1 A | 3 A | - | - | 130W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | ||
|
|
MAP130-4003GAC/DC CNVRT 5V 15V -5V -15V 130W |
4,562 |
|
数据手册 |
MAP130 (130W) | Bulk | Active | Open Frame | 4 | 90 ~ 132 VAC, 175 ~ 264 VAC | 5V | 15V | -5V | -15V | - | - | 20 A | 4 A | 1 A | 1 A | - | - | 130W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | ||
|
|
CSU3200ET-3-10012.2V AND 12VSB OUTPUT, 3200W 1U |
4,543 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
|
MB004-000GAC/DC CONVERTER |
4,789 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|

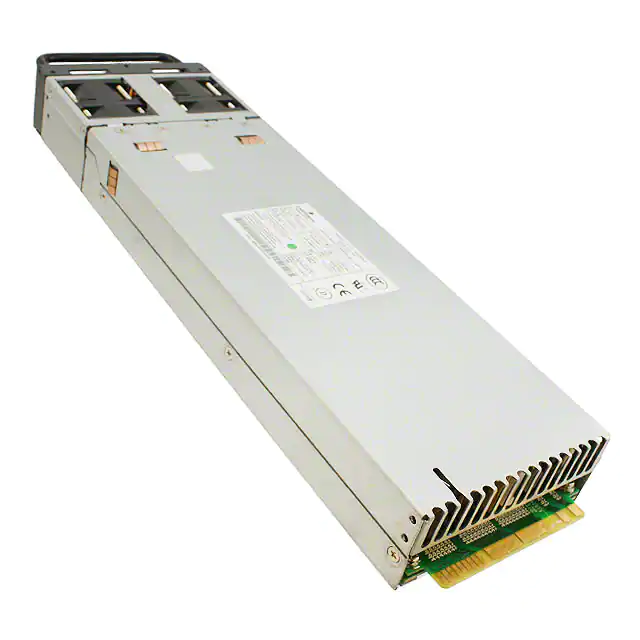

HPS3000-9-001AC/DC CONVERTER 48V 3000W |
1,419 |
|
数据手册 |
HPS3000 (3000W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 62 A | - | - | - | - | - | 3000W | ITE (Commercial) | - | -10°C ~ 40°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 12.90" L x 4.20" W x 1.57" H (327.7mm x 106.7mm x 39.9mm) | ||
|
D1U86P-W-1600-12-HB4DCAC/DC CONVERTER 12V 1600W |
2,923 |
|
数据手册 |
D1U86P-W-1600 (1600W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 133.3 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Standby Output, Universal Input | Rack Mount | 7.75" L x 3.40" W x 1.57" H (196.9mm x 86.4mm x 39.9mm) | ||
|
|
VE-RU011-CWYYAC/DC CONVERTER 5V 2X12V 200W |
3,029 |
|
数据手册 |
FlatPAC™ | Bulk | Active | Enclosed | 3 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 12V | 12V | - | - | - | 20 A | 4.2 A | 4.2 A | - | - | - | 200W | ITE (Commercial) | 4.242 kV | 0°C ~ 85°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 9.25" L x 7.30" W x 1.37" H (234.8mm x 185.4mm x 34.8mm) | ||
|
|
VE-QU42-CQVAC/DC CONVERTER 48V 15V 550W |
2,749 |
|
数据手册 |
FlatPAC™ | Bulk | Active | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 48V | 15V | - | - | - | - | 8.33 A | 10 A | - | - | - | - | 550W | ITE (Commercial) | 4.242 kV | 0°C ~ 85°C (With Derating) | Remote Sense | Chassis Mount | 9.25" L x 7.30" W x 1.37" H (234.8mm x 185.4mm x 34.8mm) | ||
|

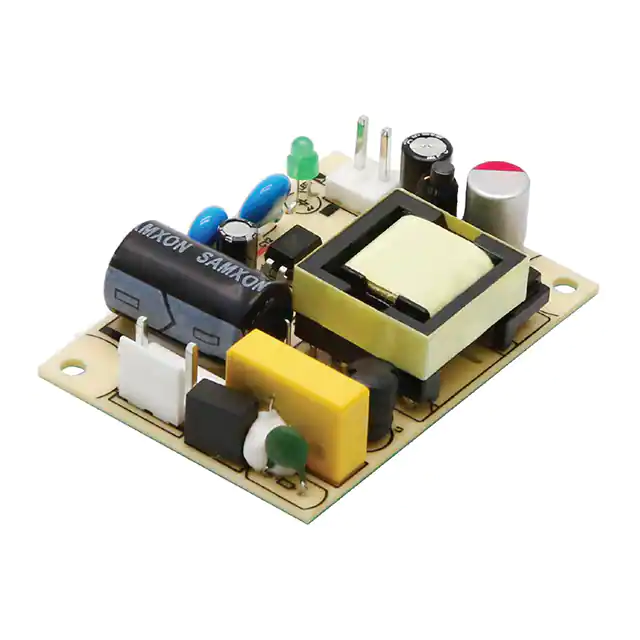

LO10-13B05AC/DC CONVERTER 5V 10W |
400 |
|
数据手册 |
305RAC / LO10-13B | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.36" L x 1.65" W x 0.64" H (60.0mm x 42.0mm x 16.3mm) | ||
|
|
LO10-13B12AC/DC CONVERTER 12V 11W |
125 |
|
数据手册 |
305RAC / LO10-13B | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | Household Appliances, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.36" L x 1.65" W x 0.64" H (60.0mm x 42.0mm x 16.3mm) | ||
|
GK220S24-15WAC/DC CONVERTER 24V 15W |
20,000 |
|
数据手册 |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | - | - | - | - | - | - | 15W | - | 3000 V | - | - | - | 3.31" L x 2.28" W x 1.50" H (84.0mm x 58.0mm x 38.0mm) |
