交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

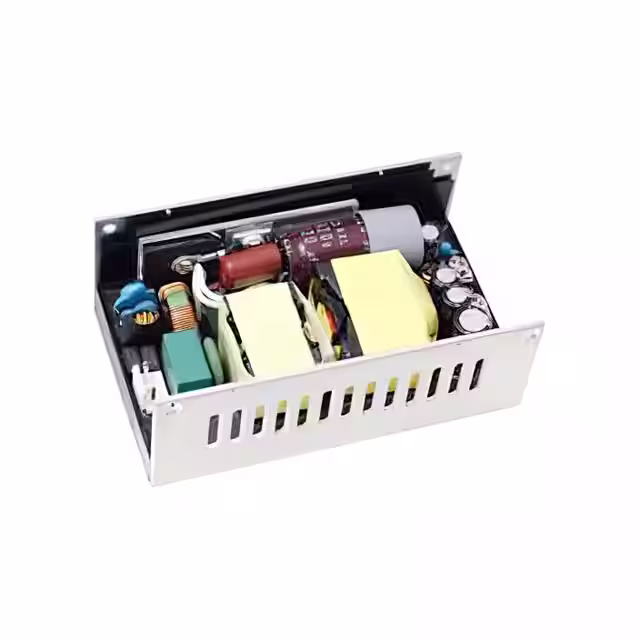

HD240U-148AC/DC CONVERTER 48V 240W Digital Power Corporation |
2,063 |
|
数据手册 |
HD240 (240W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5 A | - | - | - | - | - | 240W | ITE (Commercial) | - | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm) |
|
|
HD240U-112AC/DC CONVERTER 12V 240W Digital Power Corporation |
3,995 |
|
数据手册 |
HD240 (240W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 19.5 A | - | - | - | - | - | 240W | ITE (Commercial) | - | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm) |
|

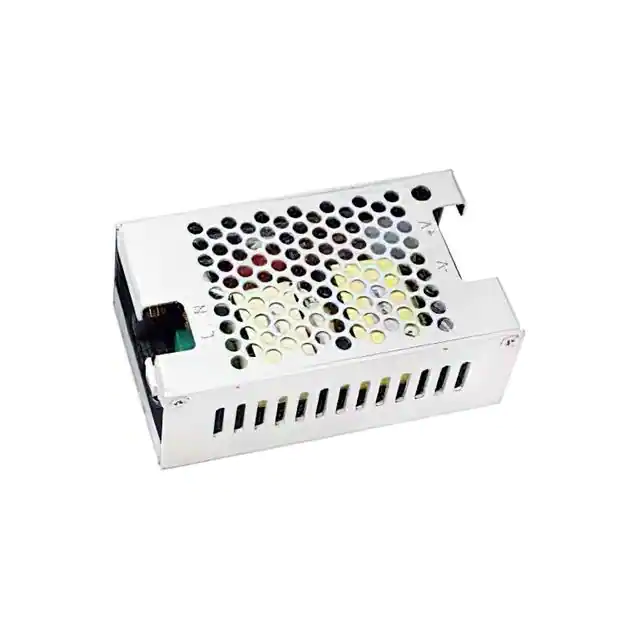

HD240E-112AC/DC CONVERTER 12V 240W Digital Power Corporation |
4,355 |
|
数据手册 |
HD240 (240W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 19.5 A | - | - | - | - | - | 240W | ITE (Commercial) | - | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm) |
|
|
HD240E-148AC/DC CONVERTER 48V 240W Digital Power Corporation |
3,458 |
|
数据手册 |
HD240 (240W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5 A | - | - | - | - | - | 240W | ITE (Commercial) | - | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm) |
|
HDM500O-115500 Watt open frame AC/DC CONVER Digital Power Corporation |
3,227 |
|
数据手册 |
HDM500 (500W) | Box | Active | Open Frame | - | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | - | -30°C ~ 70°C | - | Chassis Mount | 5.03" L x 3.00" W x 1.38" H (127.8mm x 76.2mm x 35.1mm) |
|

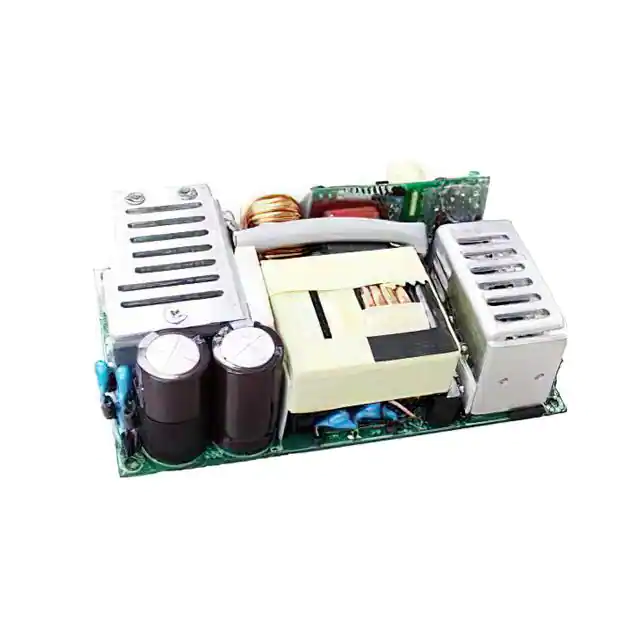

HDM500O-148AC/DC CONVERTER 48V 500W Digital Power Corporation |
2,267 |
|
数据手册 |
HDM500 (500W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.03" L x 3.00" W x 1.38" H (127.8mm x 76.2mm x 35.1mm) |
|
|
HDM500O-112AC/DC CONVERTER 12V 500W Digital Power Corporation |
2,060 |
|
数据手册 |
HDM500 (500W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 41.5 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.03" L x 3.00" W x 1.38" H (127.8mm x 76.2mm x 35.1mm) |
|

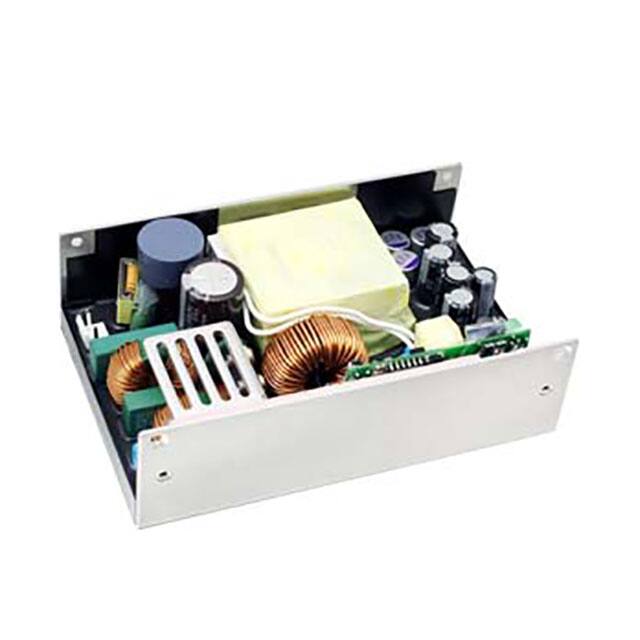

HD500U-112AC/DC CONVERTER 12V 500W Digital Power Corporation |
1,116 |
|
数据手册 |
HD500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 27.5 A | - | - | - | - | - | 500W | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.11" L x 3.25" W x 1.60" H (129.7mm x 82.6mm x 40.6mm) |
|
|
HD500U-124AC/DC CONVERTER 24V 500W Digital Power Corporation |
2,303 |
|
数据手册 |
HD500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 13.75 A | - | - | - | - | - | 500W | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.11" L x 3.25" W x 1.60" H (129.7mm x 82.6mm x 40.6mm) |
|
HDM500U-115AC/DC CONVERTER 15V 500W Digital Power Corporation |
3,168 |
|
数据手册 |
HDM500 (500W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.25" W x 1.60" H (139.7mm x 82.6mm x 40.6mm) |
